skip to Winkhaus Cobra Lever Operated Latch & Hookbolt

Winkhaus Cobra Lever Operated Latch & Hookbolt

£212.30

(£176.92 ex VAT)

sku: 5016959
  • Two remote hooks with a centre latch and hookbolt
  • Split follower; nominal 45/92 with a 20mm radius-ended faceplate
  • Match the selected reference and complete door/frame preparation
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon
10 Year Guarantee

This is a complete latch-and-hookbolt unit, not a loose gearbox or a conventional latch-and-deadbolt Cobra. Match the centre hookbolt pocket, remote hooks and complete door/frame preparation before replacement.

Before replacement, compare the complete case, followers, fixing positions, locking points and keeps with the existing installation. PZ centres are not handle-fixing centres. Confirm spindle length, furniture clearances and inside/outside operation for the selected mechanism.

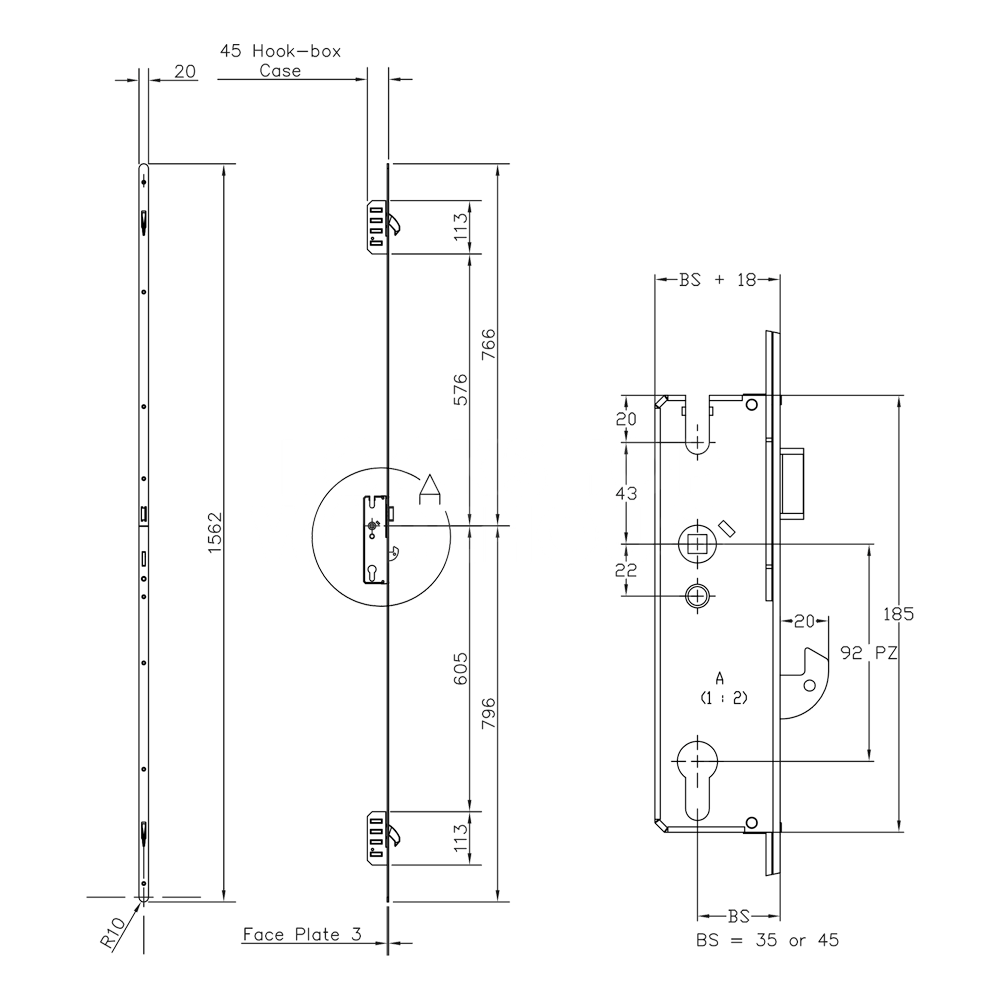

Dimensions Image: Winkhaus Cobra Lever Operated Latch & Hookbolt
Part Size (mm)
centres 92
Backset 45
Body Length 1562
Case Width 63
Case Height 185
Locking Point Hooks 2
Faceplate Width 20

FAQs

The exact complete-unit reference and door/frame preparation must be matched. Generic Cobra applications across several door materials do not establish fit for the latch-and-hookbolt version 5016959.

The supplier lists two remote hooks plus a central latch-and-hookbolt case. Exact engagement geometry and weather or thermal performance have not been established; suitable frame keeps must match every element.

The source marks 5016959 Split. Confirm spindle coupling, fixing geometry, door thickness and inside/outside function for the selected furniture. A lever/pad label alone does not establish fit or key-only exterior action.

The supplier lists a general Cobra gearbox cycle claim, but an exact-reference test scope has not been established for 5016959. No high-traffic durability or security certification is promised for this complete assembly.
