Winkhaus Cobra Split Spindle 4 Hook Multipoint Lock

£136.33

(£113.61 ex VAT)

sku: WINKH-0004
  • Four remote hooks with a centre latch and deadbolt
  • Split follower; nominal 16mm faceplate
  • Match the selected reference and complete door/frame preparation

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Deadbolt

The listed 35/92, 45/92 and 55/92 versions are separate physical references. Match all four hook stations, case, strip ends, spindle coupling and frame keeps. Follow the care instructions for the exact mechanism; do not open or inject oil into the gearbox on a generic range recommendation.

Before replacement, compare the complete case, followers, fixing positions, locking points and keeps with the existing installation. PZ centres are not handle-fixing centres. Confirm spindle length, furniture clearances and inside/outside operation for the selected mechanism.

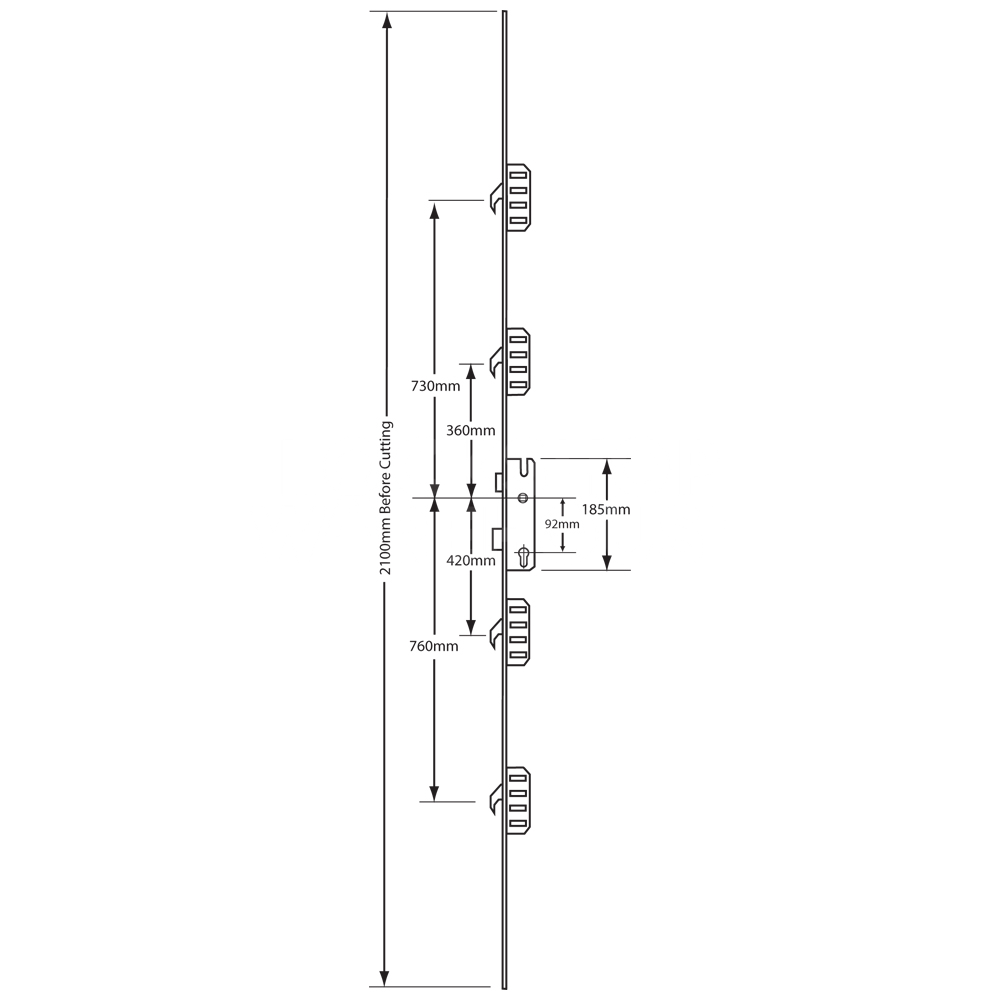

Dimensions Image: Winkhaus Cobra Split Spindle 4 Hook Multipoint Lock
Part Min (mm) Max (mm)
centres 92 -
Backset 35 55
Case Width 50 70
Case Height 185 -
Locking Point Hooks 4 -
Faceplate Width 16 -

FAQs

The supplier marks these references Split. The correct follower coupling and furniture must be confirmed before relying on key-only outside latch withdrawal; neither an offset-handle layout nor automatic full deadlocking is inferred.

The supplier lists four remote hooks plus a central latch-and-deadbolt case. The latch should not be counted as another equivalent deadlocking bolt. Exact hook positions, throw and frame keep engagement remain to be established.

The supplier lists nominal 16 mm faceplate width and 92 mm PZ. Those values alone do not establish uPVC/composite profile or Euro-cylinder fit. Match the exact reference, backset, case, strip ends, fixings, hooks, follower and frame keeps.

Use care instructions confirmed for the fitted mechanism and doorset. Do not open or inject oil into the internal gearbox on the basis of this listing; the exact source rows do not provide that procedure. Stiff operation should be assessed by a competent installer.
