Winkhaus Cobra STV-FG 2 Hook Multipoint Lock

£139.32

(£116.10 ex VAT)

sku: 4934085
  • Two remote hooks with a centre latch and deadbolt
  • Single follower; nominal 45/92 with a 20mm square-ended faceplate
  • Match the selected reference and complete door/frame preparation
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon

Match the exact STV-FG unit, furniture, strip and frame keeps. The FG designation does not establish an automatic, guard, lockout or double-door function, and a radius-ended unit is not a substitute on width alone.

Before replacement, compare the complete case, followers, fixing positions, locking points and keeps with the existing installation. PZ centres are not handle-fixing centres. Confirm spindle length, furniture clearances and inside/outside operation for the selected mechanism.

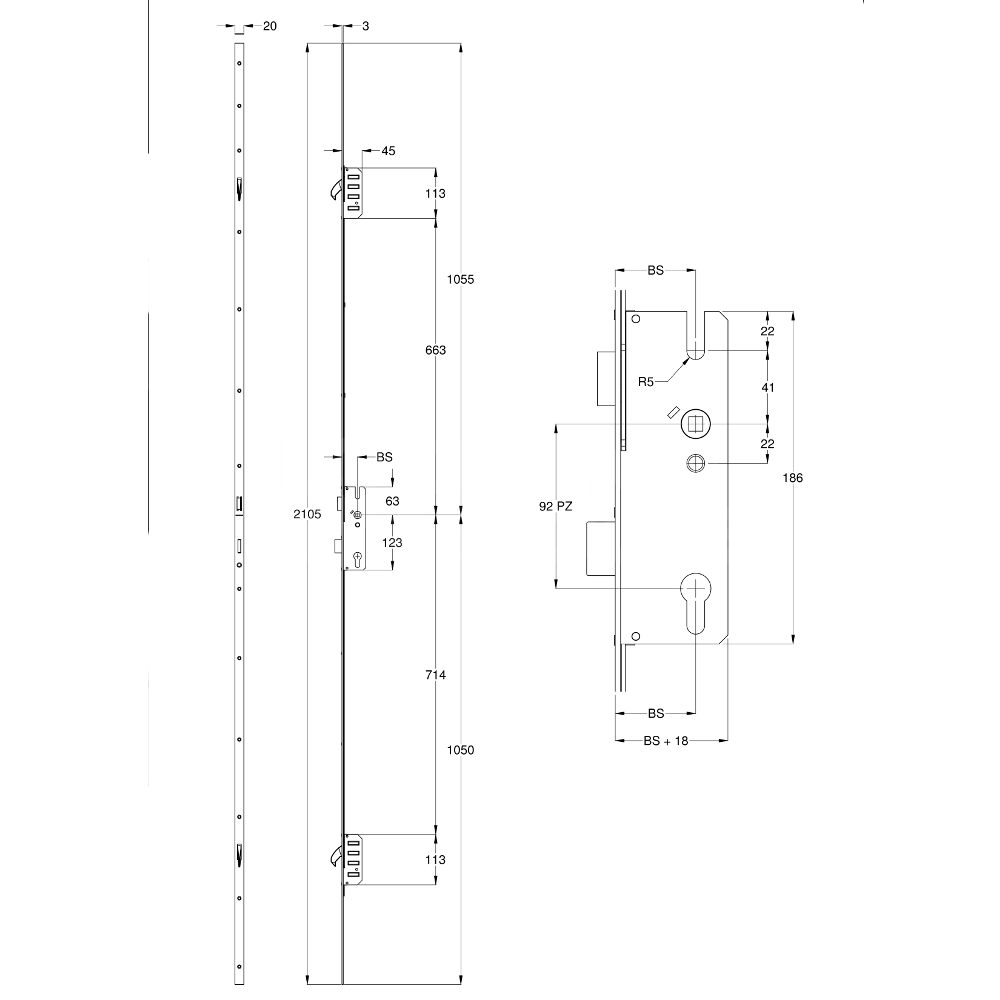

Dimensions Image: Winkhaus Cobra STV-FG 2 Hook Multipoint Lock
Part Size (mm)
centres 92
Backset 45
Locking Point Hooks 2
Faceplate Width 20

FAQs

The supplier describes 4934085 as non-handed, but an exact reversal procedure and hand restrictions have not been established. Do not assume the lock can be fitted without modification to either hand.

The supplier describes several door-material applications. Compatibility still depends on the selected STV-FG reference, square-faceplate routing, case envelope, hook positions and matching frame keeps, not material alone.

The supplier lists two hooks and a latch-and-deadbolt case. Exact hook material, security certification and attack performance for 4934085 have not been established. The generic Cobra range is not an exact-part audit.

The supplier row lists 92 mm PZ and Single, not a verified 8 mm spindle size. Confirm follower size, spindle length, handle fixings, lugs, door thickness and inside/outside action against the selected unit.
