Winkhaus EntryGuard AV2 2 Hook Multipoint Lock

£242.99

(£202.49 ex VAT)

sku: WINKH-0039
  • Supplier-listed 16mm flat faceplate
  • Listed with two hooks and a central latch and deadbolt
  • 35/92, 45/92 and 55/92 supplier-listed versions
  • Guard assembly and handle/key operation require exact-version confirmation
  • Frame keeps and any motor conversion must be checked separately

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon

The supplier lists references 2949148 (listed 35/92), 4932940 (45/92) and 4964404 (55/92) as AV2 EntryGuard locks with lever operation and a split spindle. These descriptions identify the listed options; they do not establish the precise inside/outside handle and key functions or the required spindle kit.

EntryGuard uses a guard bar for controlled partial opening. Guard engagement and release are separate from full multipoint locking and the central deadbolt. Confirm the supplied guard, internal control and locking/release sequence for the selected reference. A partially opened door must not be described as remaining fully multipoint locked. No day mode, automatic guard release or central-deadbolt key-turn sequence is confirmed for these references.

Winkhaus's older EntryGuard brochure excludes its AV2 option from outside-key guard release. The additional key movement described for mechanical STV EntryGuard must not be assumed to work on these AV2 versions.

Match the exact lock, strip and hook positions, guard assembly, frame profile and keep arrangement before replacement. The supplier states that frame keeps are supplied separately. The supplier also describes optional motor conversion, but the selected lock's generation, mounting interface, power supply and controls need confirmation before an electronic-entry upgrade. General AV2 or smart-home descriptions do not establish that compatibility.

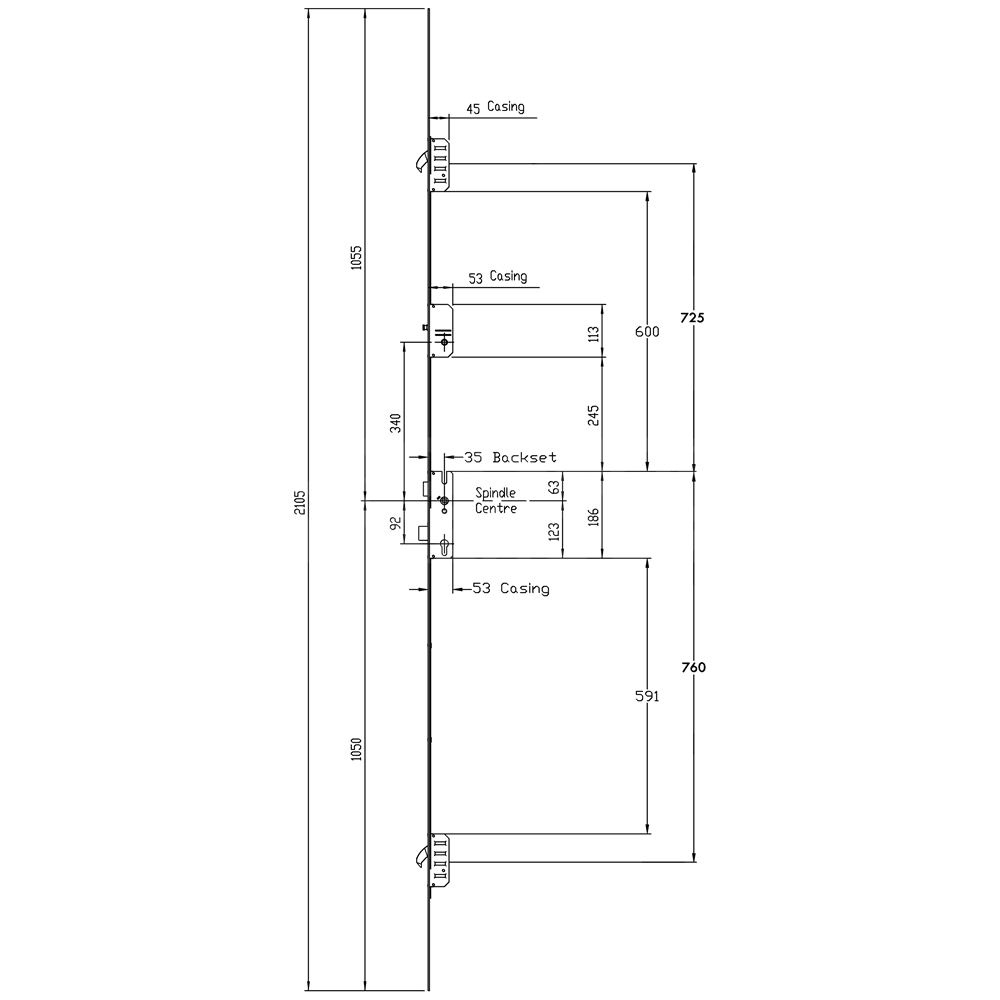

Dimensions Image: Winkhaus EntryGuard AV2 2 Hook Multipoint Lock
Part Min (mm) Max (mm)
centres 92 -
Backset 35 55
Body Length 2105 -
Case Width 47 -
Case Height 185 -
Faceplate Width 16 -

FAQs

This version is listed with a 16mm flat faceplate. Timber, composite or PVCu construction alone does not establish fit. Match the selected reference, case and strip dimensions, hook and guard positions, frame profile and keep arrangement.

Confirm the exact guard control and inside/outside handle and key functions. The AV2 or EntryGuard name does not establish a day mode or a central-deadbolt operating sequence.

The supplier describes an optional motor upgrade, but compatibility has not been confirmed for references 2949148, 4932940 and 4964404. Check the lock generation, motor mounting, power supply and control equipment before specifying electronic entry or smart-home integration.

The supplier lists two hooks and a latch-and-deadbolt centre case. Their engagement depends on the matching lock and frame keeps; hook count alone is not a security rating. Exact hook travel, material and certificate coverage for these references are not confirmed here.

Guard restriction, hook engagement and central-deadbolt locking are separate functions. Confirm the exact locking/release sequence; the latch is not an additional deadlocking bolt.

The supplier states that frame keeps are supplied separately. The selected lock needs its matching EntryGuard centre/extension assembly and frame profile. An ordinary AV2 keep, or a matching door-thickness label alone, does not establish guard-bar fit.
