Winkhaus Palladio XL 92mm PZ Lever/Lever Door Furniture

£72.36

(£60.30 ex VAT)

sku: WINKH-0007
  • Compatible with 92mm PZ multi-point locking mechanisms
  • Features an XL extended backplate for increased door surface coverage
  • Non-handed design suitable for both left and right-hand doors
  • Supplied with fixed lugs on both backplates for secure positioning
  • Suitable for use on both UPVC and composite door systems
  • Standard 214mm screw centres for straightforward replacement
  • Unsprung lever action designed for use with sprung lock cases
  • Includes an 8mm spindle for standard hardware compatibility

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

The Winkhaus Palladio XL is a high-specification lever/lever furniture set designed for application on UPVC and composite doors. Engineered to operate with standard 92mm PZ multi-point locking systems, this handle set is an ideal choice for both new door fabrication and the replacement of existing hardware.

These handles feature a non-handed, quick-fit design, allowing them to be installed on doors with either left or right-handed configurations without the need for adjustment. The unsprung lever design is intended for use with lock cases that have an internal spring return mechanism. To ensure a stable and secure fit, both the internal and external backplates are fitted with fixed lugs.

Typical applications include:

  • Residential entrance doors using multi-point locks
  • Commercial UPVC or composite door installations
  • Retrofit upgrades where an extended backplate is required for aesthetic or functional coverage

With industry-standard 214mm screw centres and an 8mm spindle, the Palladio XL offers a robust and versatile hardware solution for modern door security systems.

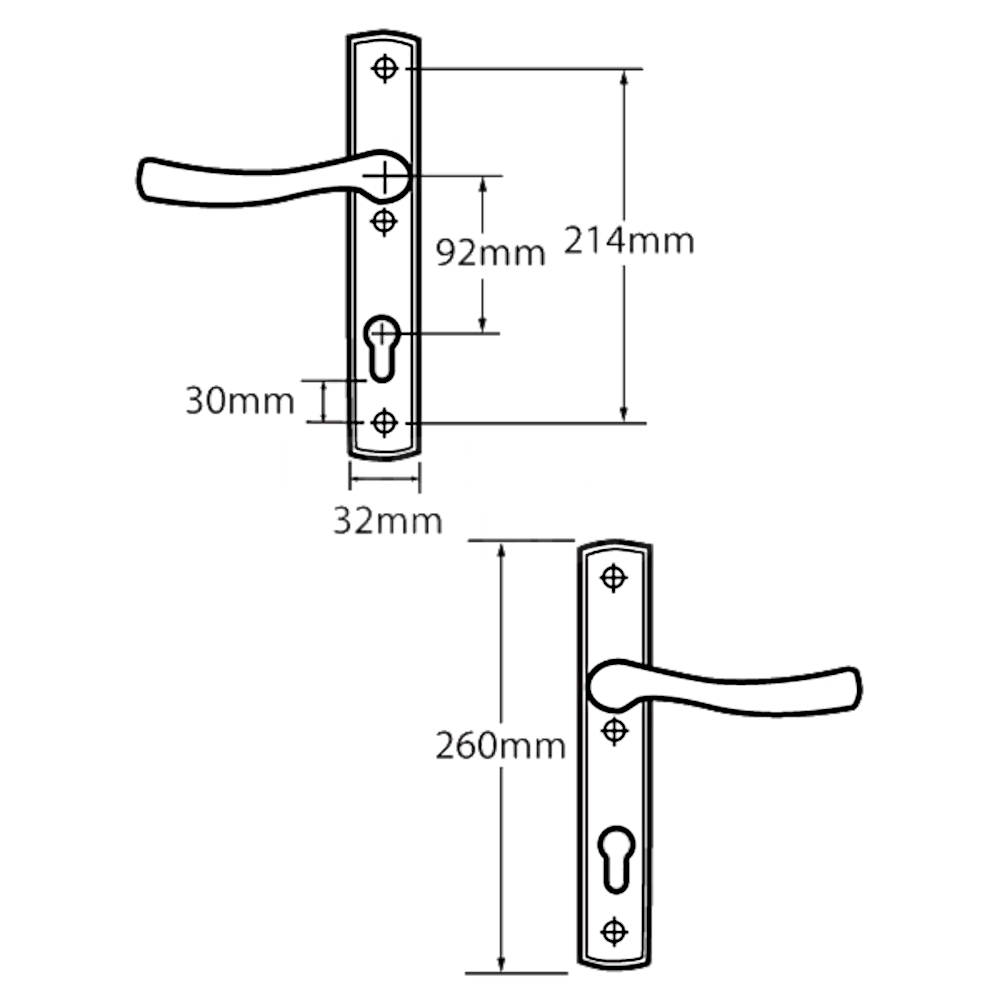

Dimensions Image: Winkhaus Palladio XL 92mm PZ Lever/Lever Door Furniture
Part Size (mm)
centres 92
