Winkhaus Scorpion Lever Operated Multipoint Lock

£113.14

(£94.28 ex VAT)

sku: 2398251
  • Two remote hooks, two rollers and a centre latch and hookbolt
  • Split follower; nominal 35/92 with a 16mm faceplate
  • Match the selected reference and complete door/frame preparation
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Hookbolt

This is a complete Scorpion lock unit, not its separate replacement gearbox. Match the centre hookbolt pocket, all hook/roller stations, follower and frame keeps; a latch-and-deadbolt Cobra is not the same configuration.

Before replacement, compare the complete case, followers, fixing positions, locking points and keeps with the existing installation. PZ centres are not handle-fixing centres. Confirm spindle length, furniture clearances and inside/outside operation for the selected mechanism.

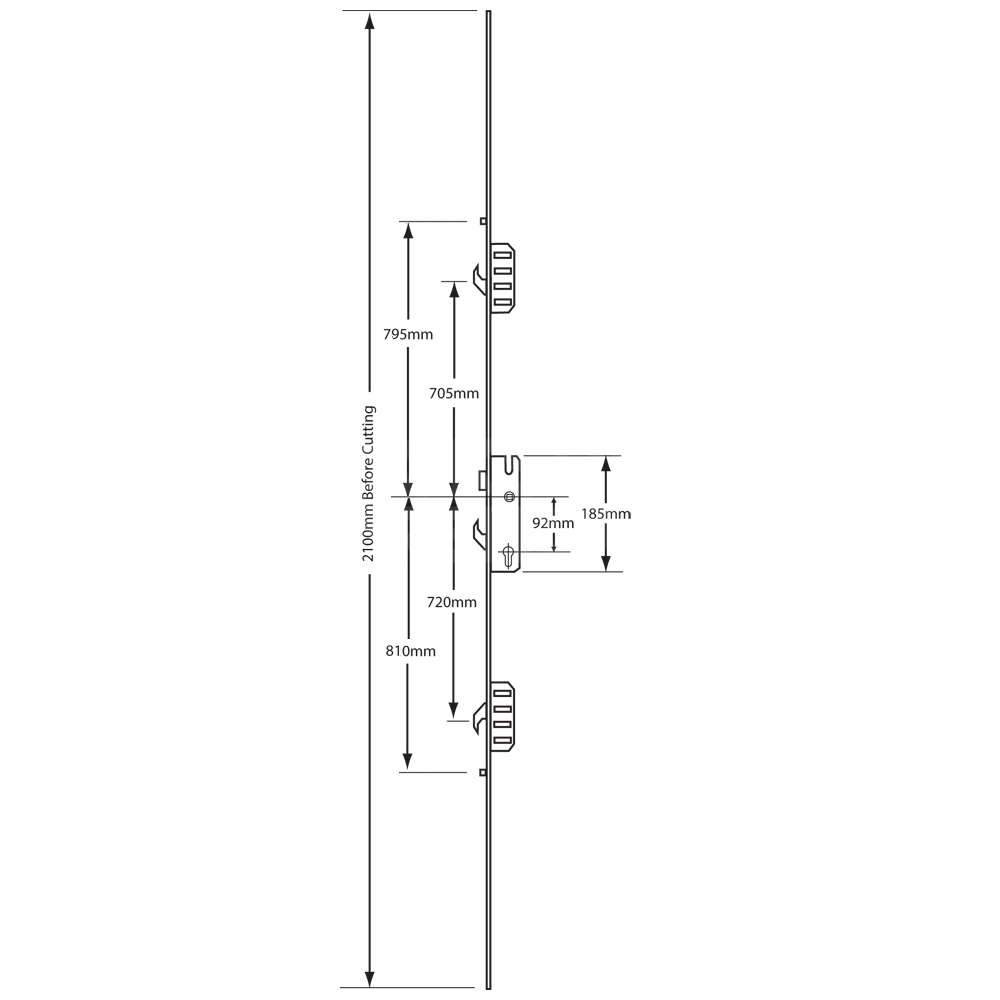

Dimensions Image: Winkhaus Scorpion Lever Operated Multipoint Lock
Part Size (mm)
centres 92
Backset 35
Case Width 50
Case Height 185
Locking Point Hooks 2
Locking Point Roller 2
Faceplate Width 16

FAQs

The exact Scorpion reference 2398251 and full door/frame geometry need matching. Generic door-material descriptions or existing Winkhaus branding do not establish replacement fit for this complete latch-and-hookbolt unit.

The supplier lists 92 mm PZ and Split. Check spindle coupling and length, fixing holes, lugs, door thickness and inside/outside action; a matching PZ measurement does not approve most handle sets.

The supplier lists a central latch-and-hookbolt case, two remote hooks and two rollers. These are different element types and should not be presented as six equivalent security bolts. Exact positions, travel and frame-pocket fit remain unverified.

The source marks 2398251 Split, but compatible furniture and spindle coupling must be confirmed for the supplied Scorpion generation. Neither a movable-pad arrangement nor key-only exterior latch withdrawal is assumed.
