Winkhaus Slave Lock with Attachments for shootbolts

£91.19

(£75.99 ex VAT)

sku: 2093896-d
  • Designed specifically for the slave leaf of French door sets
  • Supplied with attachments to facilitate shootbolt integration
  • Operates via a standard lift lever mechanism
  • Compatible with 92mm centres door furniture
  • Provides multiple locking points for enhanced secondary leaf security
  • Engineered to work seamlessly alongside the Winkhaus Cobra locking system

UPVC Backset

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

The Winkhaus Slave Lock is a specialised component designed for the secondary (slave) leaf of a French door pair. It provides the necessary locking points to secure the inactive door while offering the mechanical interface required for the master lock on the primary door to engage correctly.

This slave lock features integral attachments designed to accept shootbolts, allowing for full vertical security at the top and bottom of the door leaf. The unit is operated by a lift lever mechanism, which activates the internal locking components and the connected shootbolts simultaneously. It is designed for use with standard door furniture featuring 92mm centres and a single 8mm spindle.

Commonly used in both uPVC and timber door applications, this lock is an essential part of a multi-point locking system. It is typically selected as a like-for-like replacement for failed units or as part of a new French door installation requiring the reliable performance of the Winkhaus Cobra range. Its robust construction ensures consistent operation and alignment between the two door leaves.

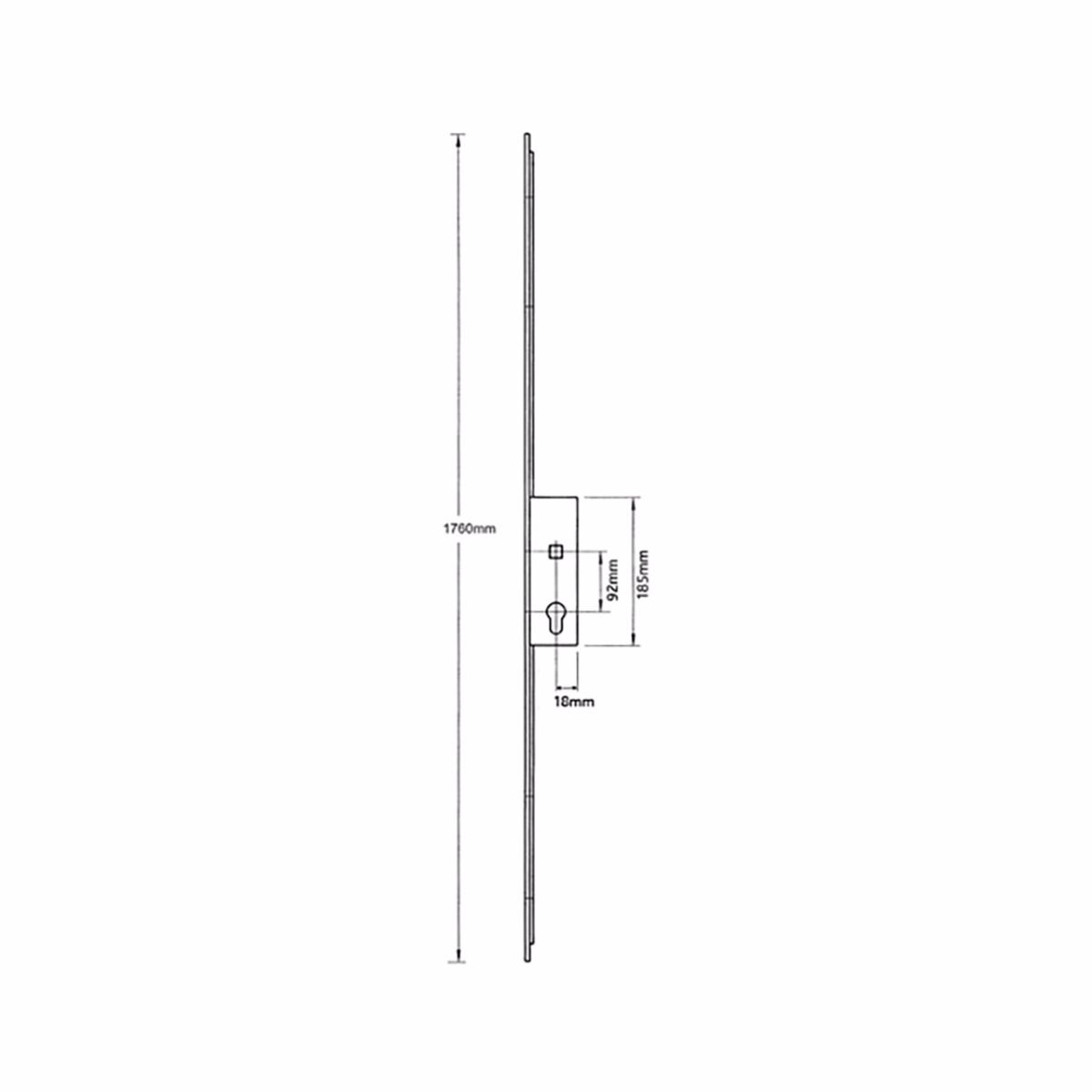

Dimensions Image: Winkhaus Slave Lock with Attachments for shootbolts

FAQs

This slave lock is specifically designed for use on the secondary (passive) leaf of a set of French doors. It allows the slave door to be secured into the frame, typically working in conjunction with a master door lock.

Yes, this unit is supplied with attachments that allow for a variety of different sized shootbolts to be connected. This ensures the lock can be adapted to suit different door heights and configurations.

To ensure a correct fit, please note the following specifications:

  • Backset: 35mm or 45mm options
  • Centres: 92mm
  • Faceplate: 16mm flat with square ends
  • Overall Length: 1760mm
  • Spindle: Single 8mm

This mechanism uses a lift-lever operation. To engage the locking points and any attached shootbolts, you simply lift the handle upwards to throw the locks into position.
