Winkhaus Stable Door Gearbox

£108.41

(£90.34 ex VAT)

sku: WINKH-0095
  • Separate listed upper and lower versions
  • 45mm and 55mm backset references in the manufacturer complete-lock table
  • Manufacturer system: lever-operated upper lock and key-operated lower lock
  • Supplied assembly and replacement-case fit require confirmation

size

model

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

The listed references are 4966588 (upper 45mm), 4966587 (lower 45mm), 4966573 (upper 55mm) and 4966571 (lower 55mm). Winkhaus identifies these as complete stable-door locks, while this catalogue and the supplier list them as gearboxes. Confirm the physical assembly supplied under each reference before ordering a case-only replacement.

The manufacturer system uses a lever-operated upper lock and a key-operated lower lock with an adjustable roller latch; the lower lock does not require an upper-style handle set. Those complete-lock descriptions are not a gearbox exchange procedure.

For replacement, match the original marked lock, case envelope, drive connection, follower arrangement and fixing pattern. The complete lock's remote hooks, corrosion specification and operating features must not be treated as proof for a bare case. No key-turn count, tool-free latch reversal or universal stable-door interchange is confirmed for this listing.

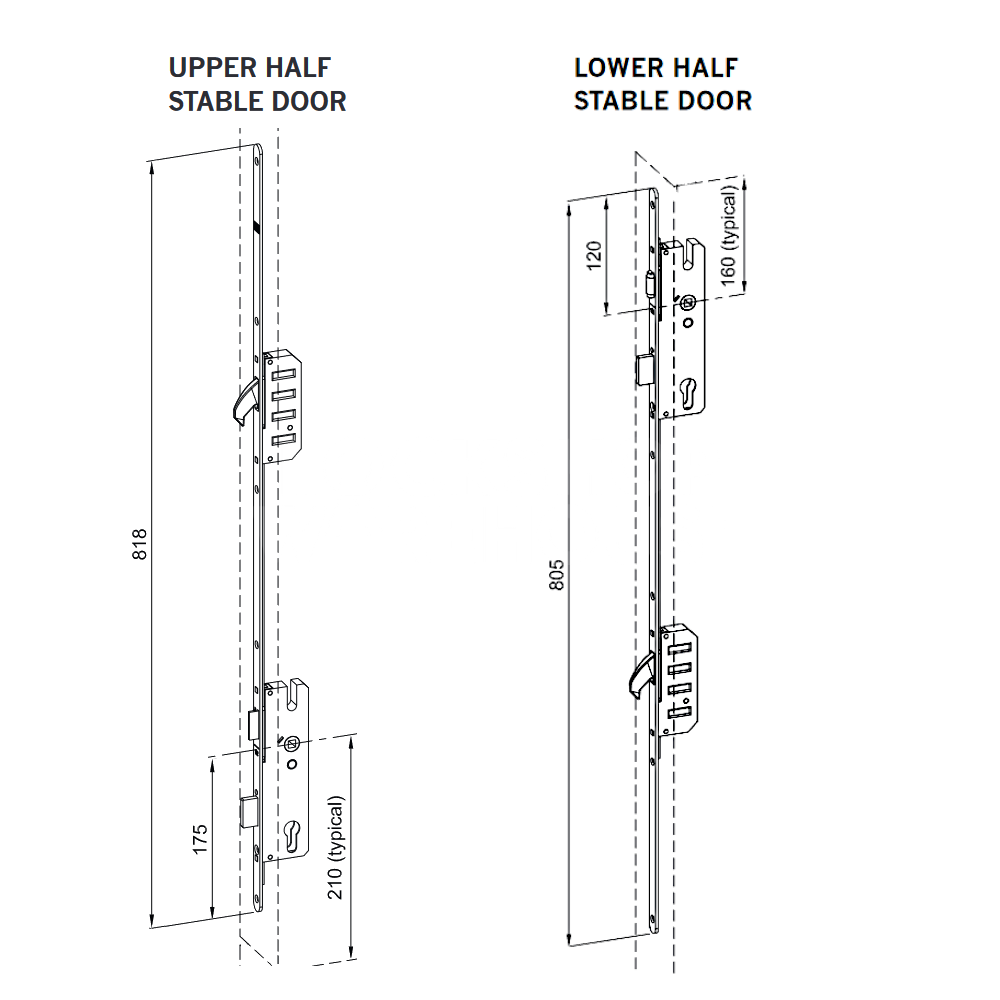

Dimensions Image: Winkhaus Stable Door Gearbox
Part Min (mm) Max (mm)
centres 92 -
Backset 45 55
Bolt Length 25 -

FAQs

This is a stable-door gearbox listing, not a universal front-door replacement. Winkhaus identifies the matching four references as complete stable-door locks. Confirm the supplied assembly and the original donor lock before specifying a case-only repair.

The listed upper references are 4966588 (45mm) and 4966573 (55mm); the lower references are 4966587 (45mm) and 4966571 (55mm). These are complete-lock references in the manufacturer table. Match the original marked reference, supplied assembly, case and drive connection; backset or PZ alone is not proof of gearbox fit.

Winkhaus describes the complete stable-door locks as non-handed. That does not confirm the handing of a separately supplied replacement case or a tool-free reversal method. Check the actual supplied assembly and its own instructions before changing the latch.

In the manufacturer stable-door system, the upper lock is lever-operated on both sides and the lower lock is key-operated with an adjustable roller latch; no handle set is required for the lower lock. Confirm whether the supplied item is a complete lock or a bare case before applying operating instructions. An exact key-turn count is not confirmed for this listing.
