Winkhaus STV-FGTE Master Multipoint Door Lock

£167.40

(£139.50 ex VAT)

sku: 5003720
  • FGTE master for the first-opening leaf
  • Two hooks with latch and deadbolt
  • 45mm backset, 92mm centres and 20mm faceplate
  • Corresponding slave lock selected separately
  • Optional master shootbolts need the correct reversing extension and height-dependent components
Document Icon Winkhaus FGTE: manufacturer system layout and component selection guide
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon
PAS 24:2016
Latch & Deadbolt

A Winkhaus STV-FGTE two-hook master lock for the first-opening leaf of a double-door set, with 45mm backset, 92mm centres and a 20mm faceplate.

The master lock engages the corresponding FGTE slave lock. Match the pair to the door's handing and meeting-stile preparation.

Master shootbolts are an optional system configuration; required extensions, reversing parts and keeps depend on the actual door and handle heights. The slave lock and additional components are separate selections.

Replacement fit: match the exact supplied reference and generation, handing, backset, follower/spindle arrangement, faceplate profile, case routing, fixing holes, locking-point positions and frame keeps. PZ centres alone do not establish furniture or replacement fit. Follow the applicable fitting limits rather than trimming a strip simply because it is too long.

The stored manufacturer document is a range/system guide. Match its applicable configuration to the supplied reference; it is not an exact drawing or certificate for every older part number.

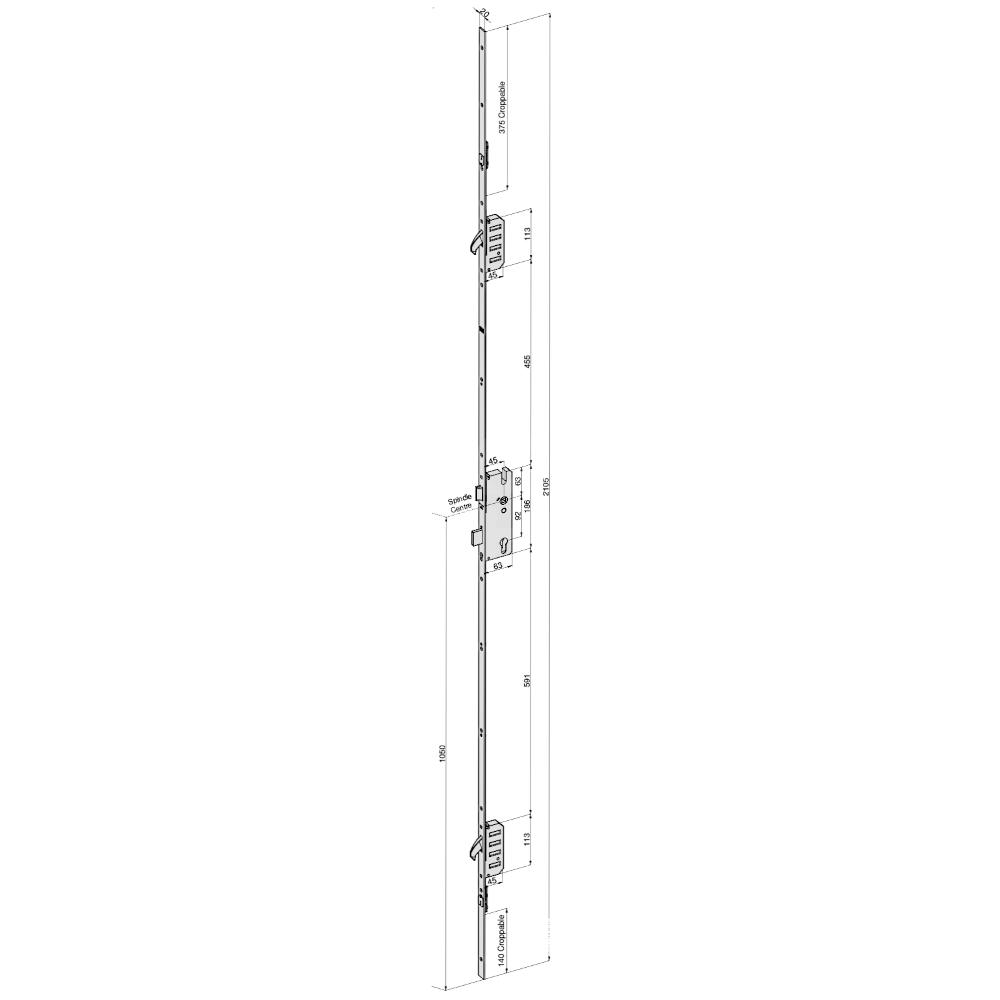

Dimensions Image: Winkhaus STV-FGTE Master Multipoint Door Lock
Part Size (mm)
centres 92
Backset 45
Body Length 2105
Case Width 63
Case Height 186
Locking Point Hooks 2
Faceplate Width 20

Brand

SKU

5003720

Certifications

tick PAS 24:2016

FAQs

This is an FGTE master lock for the first-opening leaf. Match its slave lock, meeting stile, furniture and height-dependent components to the actual door design.

The supplier describes lift-lever operation for the master. Confirm the exact follower and operating instructions, as well as the matched slave configuration, before specifying furniture or bolt actions.

Cropping must follow the exact manufacturer's datums and permitted engagement limits. A faceplate's overall length alone is not an instruction to trim it for any door height.

Master shootbolts are an optional configured system. Their installation needs the correct reversing extension, lengths and keeps; security claims must refer to the documented complete doorset.
