Winkhaus STV-FGTE Slave Door Lock

£210.77

(£175.64 ex VAT)

sku: WINKH-0102
  • FGTE slave unit for the second-opening leaf
  • 45mm backset, 92mm centres and 20mm faceplate
  • Separate left- and right-hand references
  • Separate top and bottom shootbolts required by the configured slave system
  • Latch extension, meeting stile and height-dependent parts require verification
Document Icon Winkhaus FGTE: manufacturer system layout and component selection guide

Hand

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon
PAS 24:2016
Slave

A handed Winkhaus STV-FGTE slave lock for the second-opening leaf of a double-door set, with 45mm backset, 92mm centres and a 20mm faceplate.

The slave unit receives the master lock's bolts and operates separate top and bottom shootbolts. Match the handed lock, meeting-stile arrangement and required shootbolt lengths to the door design.

The master lock and shootbolt components are separate selections. The configured FGTE system must be checked against the manufacturer's layout and parts schedule.

Replacement fit: match the exact supplied reference and generation, handing, backset, follower/spindle arrangement, faceplate profile, case routing, fixing holes, locking-point positions and frame keeps. PZ centres alone do not establish furniture or replacement fit. Follow the applicable fitting limits rather than trimming a strip simply because it is too long.

The stored manufacturer document is a range/system guide. Match its applicable configuration to the supplied reference; it is not an exact drawing or certificate for every older part number.

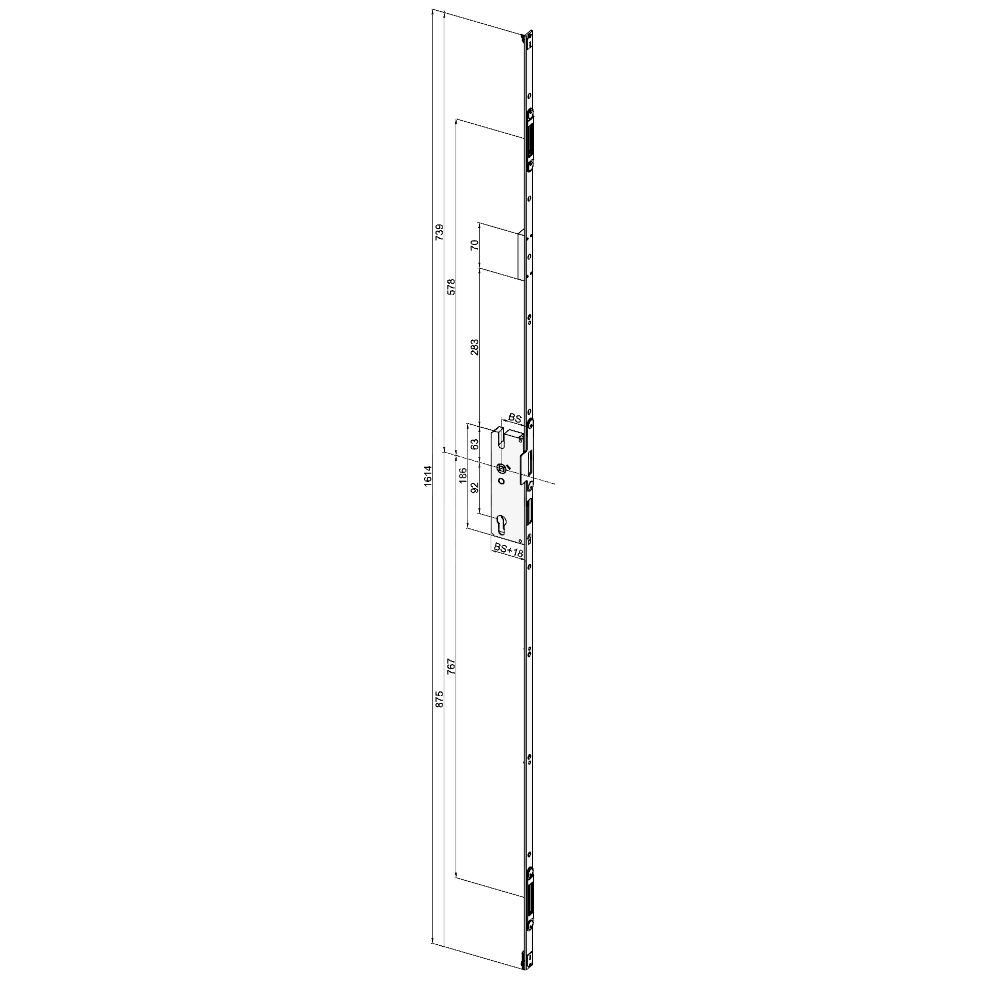

Dimensions Image: Winkhaus STV-FGTE Slave Door Lock
Part Size (mm)
centres 92
Backset 45
Body Length 1614
Case Width 63
Case Height 186
Faceplate Width 20

Brand

SKU

WINKH-0102

Certifications

tick PAS 24:2016

FAQs

No, the Winkhaus STV-FGTE is specifically designed for the slave leaf (the secondary opening door) of a double door set. It is engineered to provide a secure locking point for the door that remains closed while the primary door is in use.

Check the 45mm backset, 92mm centres, 20mm faceplate and handed slave reference, together with the meeting-stile geometry, latch-extension version, furniture and shootbolt selection.

The FGTE slave system requires separate top and bottom shootbolts. Their lengths and extensions depend on the actual handle and rebate heights; the lock alone is not a complete double-door installation.

Security and fire performance must refer to the documented complete doorset and approved hardware combination. A general range statement is not a certificate for every replacement installation.
