skip to Winkhaus STV Trulock 2 Hook Multipoint Lock

Winkhaus STV Trulock 2 Hook Multipoint Lock

£118.92

(£99.10 ex VAT)

sku: WINKH-0065
  • Dual hook locking points provide enhanced security and weather sealing
  • Split spindle function allows for flexible external access control
  • Centrally located latch and deadbolt for robust primary engagement
  • Low-friction hook thrust plates ensure smooth and consistent operation
  • 20mm radius faceplate designed specifically for timber and composite door profiles
  • Secured by Design accredited for proven security performance
  • Standard 92mm centres for compatibility with a wide range of door furniture

size

Hand

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon
tick Latch & Deadbolt

The Winkhaus STV Trulock is a high-security multipoint locking system engineered for application on composite and timber doors. This system combines dual steel hooks with a central latch and deadbolt mechanism, providing multiple engagement points that secure the door against the frame and improve compression for weatherproofing.

This locking unit features a split spindle operation, which is typically used to restrict external access, requiring a key to retract the latch even when the door is not fully locked. The technical design includes low-friction thrust plates for the hooks, ensuring that the mechanism remains easy to operate even under high usage.

Suitable for both new installations and as a replacement unit in existing doors, the lock is manufactured with a 20mm radius faceplate to fit standard routing preparations. It is Secured by Design certified, making it an ideal choice for residential properties requiring a high level of security and durability.

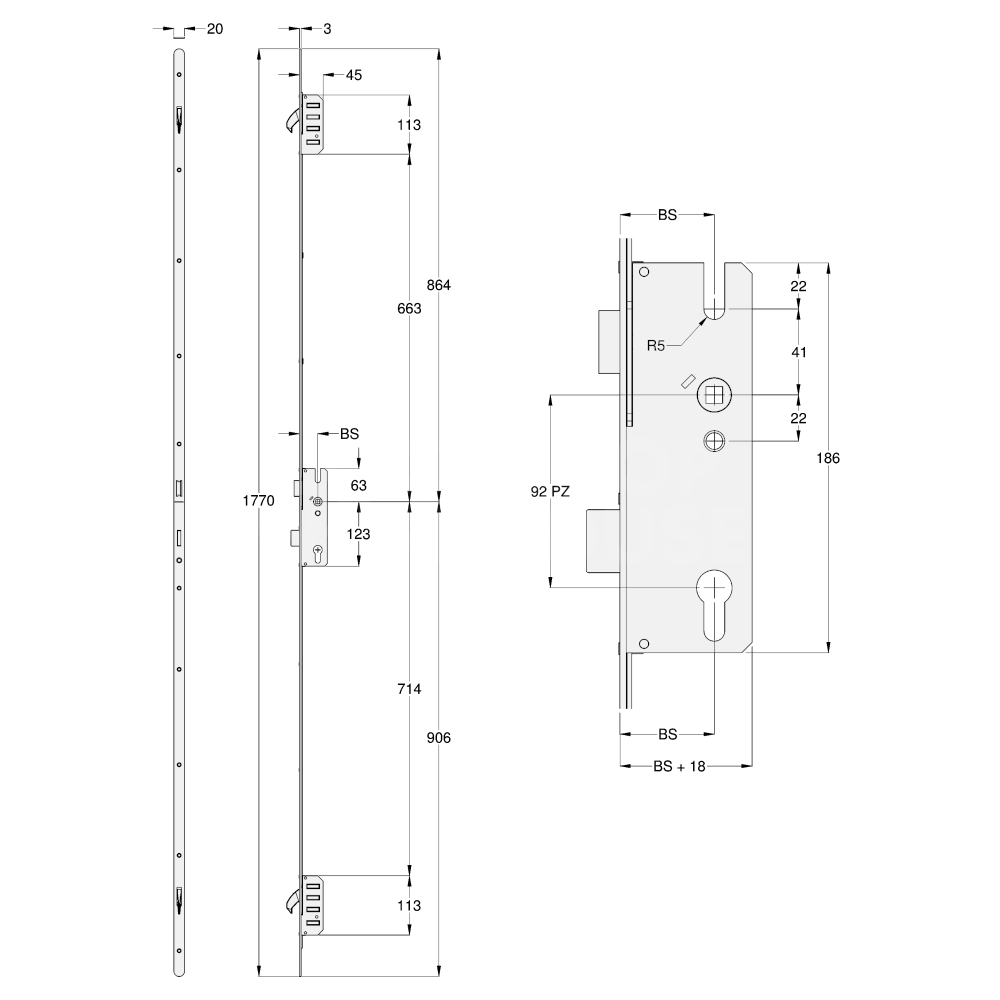

Dimensions Image: Winkhaus STV Trulock 2 Hook Multipoint Lock
Part Min (mm) Max (mm)
centres 92 -
Backset 35 55
Locking Point Hooks 2 -
Faceplate Width 20 -

FAQs

This multipoint lock is specifically engineered for use with timber and composite door profiles. It features a 20mm radius faceplate designed to fit standard routing preparations typically found on these door types.

The split spindle function provides flexible external access control. It is designed so that even when the door is not fully locked with the hooks, a key is required to retract the latch from the outside, preventing unauthorised entry if the door is simply pulled shut.

The STV Trulock provides high-security engagement through multiple points:

  • Dual steel hooks that secure the door against the frame and improve weather sealing.
  • A robust central deadbolt.
  • A primary central latch for everyday closure.

The lock features standard 92mm centres, ensuring compatibility with a wide range of standard multipoint door furniture. Additionally, the mechanism uses low-friction hook thrust plates to ensure smooth operation regardless of the handle choice.
