Winkhaus STV Trulock 2 Hook Multipoint Lock with Split Spindle

£122.02

(£101.68 ex VAT)

sku: WINKH-0067
  • Two hooks with a latch/deadbolt centre case
  • Split follower
  • 20mm square faceplate
  • 45mm backset left- and right-hand versions
  • Furniture fit and escape-door performance are not established by 92mm centres alone

Hand

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

A handed Winkhaus STV Trulock two-hook lock with a split follower, 45mm backset, 92mm centres and a 20mm square faceplate.

Match the handed reference and 20mm square faceplate to the existing door preparation. Check the follower/spindle arrangement and outside furniture as a complete combination.

Backset and PZ centres alone do not establish replacement fit or an escape-door function.

Replacement fit: match the exact supplied reference and generation, handing, backset, follower/spindle arrangement, faceplate profile, case routing, fixing holes, locking-point positions and frame keeps. PZ centres alone do not establish furniture or replacement fit. Follow the applicable fitting limits rather than trimming a strip simply because it is too long.

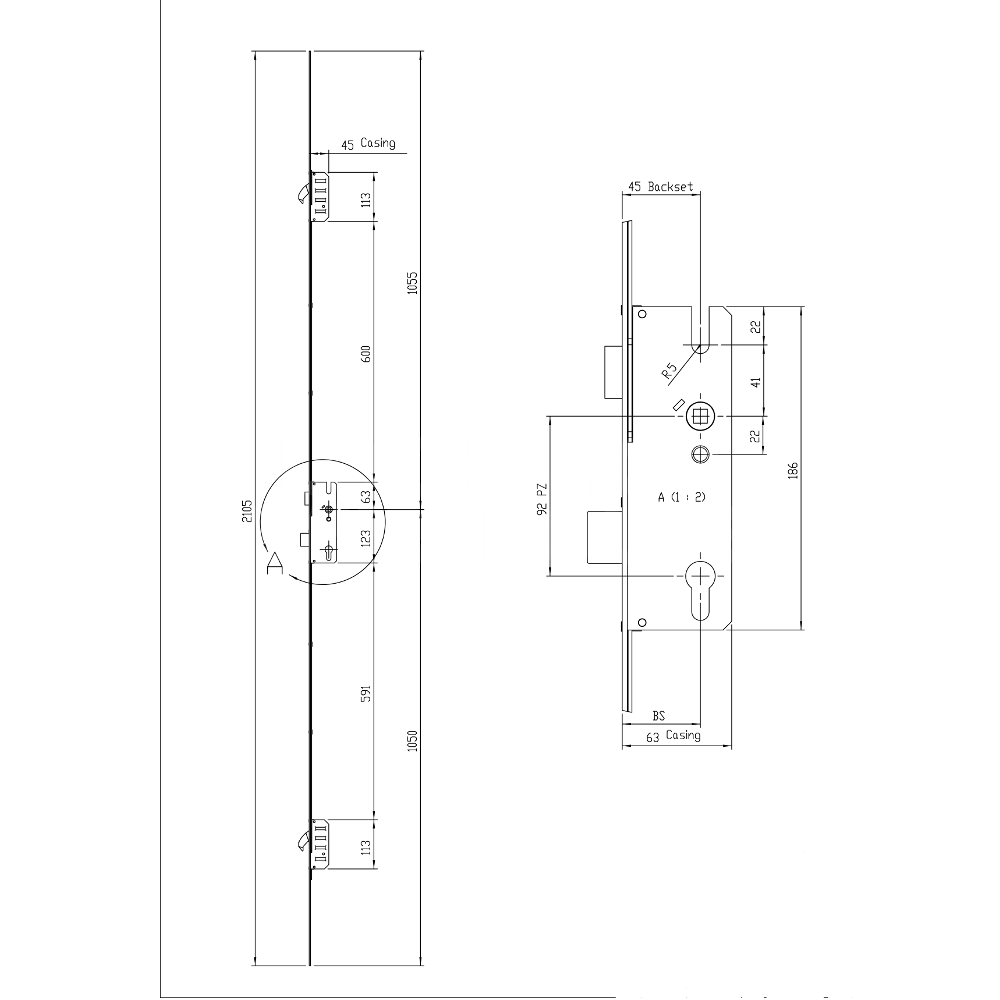

Dimensions Image: Winkhaus STV Trulock 2 Hook Multipoint Lock with Split Spindle

FAQs

This family is the handed 45mm-backset, 20mm square-faceplate version. Backset and 92mm centres alone do not establish lock or furniture replacement fit.

Confirm the exact split spindle and furniture arrangement for the intended inside and outside action. This description does not establish an approved emergency-escape doorset.

The lock and keeps must be aligned and adjusted with the door seals. Hook engagement alone does not guarantee a weatherproof, draught-free door or an improvement in thermal performance.

Use the correct furniture and spindle arrangement, maintain the mechanism as specified and keep the door and frame keeps aligned. Increased resistance should be investigated rather than overcome by forcing the handle.
