skip to Winkhaus STV Trulock LL Multipoint Door Lock 2 Hook

Winkhaus STV Trulock LL Multipoint Door Lock 2 Hook

£113.30

(£94.42 ex VAT)

sku: WINKH-0109
  • Features two high-security hooks to provide multiple locking points
  • Central gearbox includes an integrated latch and deadbolt mechanism
  • Equipped with a 20mm radius faceplate for specific profile compatibility
  • Standard 92mm centres for use with common multipoint door handles
  • Single spindle operation suitable for standard lever-lever handle sets
  • Designed specifically for application on UPVC door systems

Hand

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The Winkhaus STV Trulock LL is a robust multipoint locking system engineered for use on UPVC door profiles. It provides a high level of security by combining a central latch and deadbolt with two hook bolts, ensuring the door is firmly secured at multiple points along the frame. This configuration is essential for maintaining weather sealing and improving resistance against physical attack.

Typically used as a replacement part for existing Winkhaus systems or in new-build UPVC door assemblies, this lock features a 20mm wide radius faceplate. The 92mm centres are a standard industry measurement, allowing for compatibility with a broad range of internal and external door handles. The single spindle mechanism ensures straightforward operation using standard lever handles.

This handed unit is designed to fit specific door orientations, providing a reliable and durable locking solution. Its technical specification makes it a primary choice for maintenance professionals and manufacturers looking for a dependable multipoint system that integrates seamlessly into modern UPVC door hardware setups.

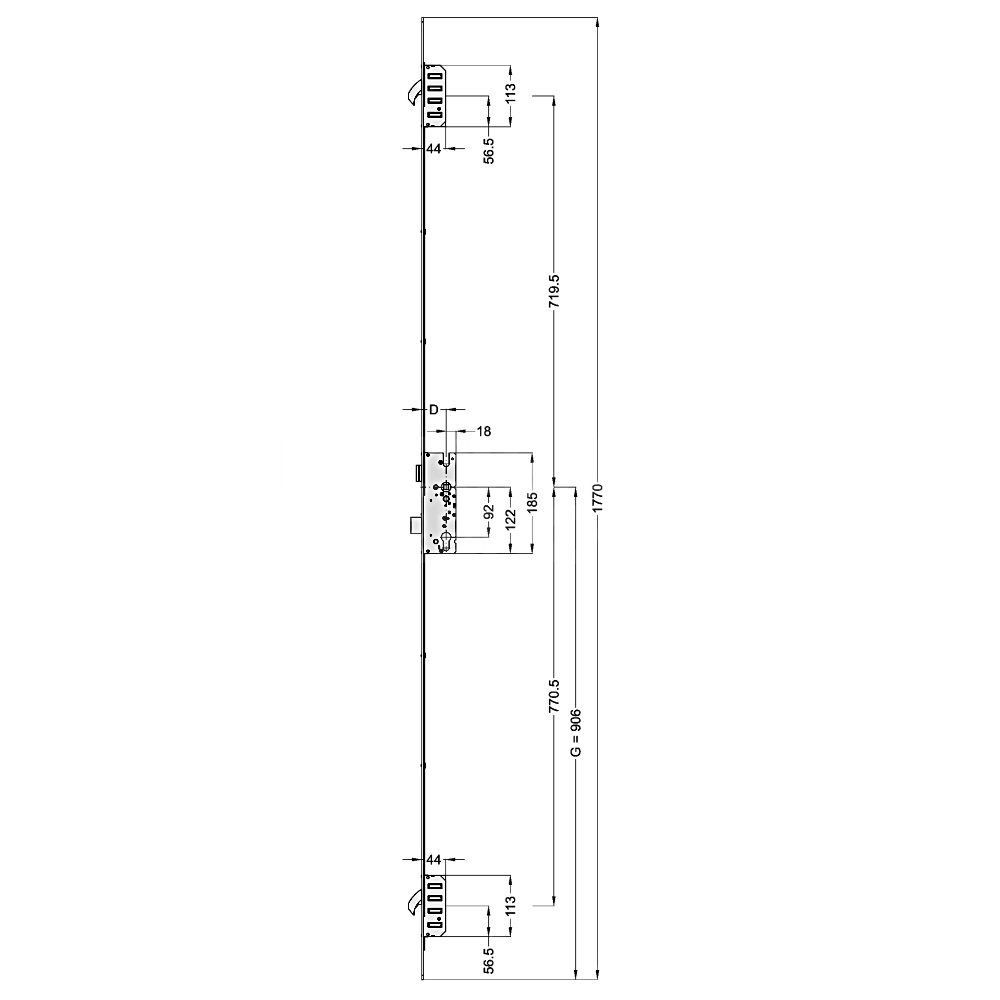

Dimensions Image: Winkhaus STV Trulock LL Multipoint Door Lock 2 Hook
Part Size (mm)
centres 92
Backset 45
Case Width 63
Case Height 185
Locking Point Hooks 2
Faceplate Width 20

FAQs

The Winkhaus STV Trulock LL is specifically engineered for application on UPVC door systems. It is commonly used both in new door assemblies and as a high-quality replacement part for existing Winkhaus hardware installations.

This multipoint system features a central gearbox containing a latch and deadbolt, supplemented by two high-security hook bolts. When engaged, these points secure the door at multiple locations along the frame to improve security and weather sealing.

This lock uses standard 92mm centres, which is a common industry measurement for multipoint handles. Because it features a single spindle operation, it is compatible with most standard lever-lever handle sets designed for UPVC doors.

The 20mm radius faceplate is a specific design feature that ensures compatibility with certain UPVC door profiles. This allows for a precise fit within the door's prep channel, which is essential for the smooth operation of the locking mechanism.
