Winkhaus Thunderbolt Lever Operated 4 Deadbolt Multipoint Lock

£133.16

(£110.97 ex VAT)

sku: WINKH-0076
  • Four remote deadbolts plus central latch and deadbolt
  • Lever-operated, split-follower supplied family
  • 35mm backset and 20mm radius faceplate
  • Fixed left- and right-hand references
  • Furniture and full deadbolt/keep layout must match the exact reference
Document Icon Winkhaus Thunderbolt: manufacturer range guide (2023-A)

Hand

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon
Latch & Deadbolt

A handed lever-operated Winkhaus Thunderbolt lock with four remote deadbolts, a centre latch and deadbolt, split follower and 20mm radius faceplate.

These 35mm-backset locks are supplied in fixed left- and right-hand versions with a 20mm radius faceplate. Match the reference, furniture and keep layout to the door preparation.

The four remote deadbolts are separate from the centre deadbolt. Any claimed security performance applies to the documented doorset and hardware combination.

Replacement fit: match the exact supplied reference and generation, handing, backset, follower/spindle arrangement, faceplate profile, case routing, fixing holes, locking-point positions and frame keeps. PZ centres alone do not establish furniture or replacement fit. Follow the applicable fitting limits rather than trimming a strip simply because it is too long.

The stored manufacturer document is a range/system guide. Match its applicable configuration to the supplied reference; it is not an exact drawing or certificate for every older part number.

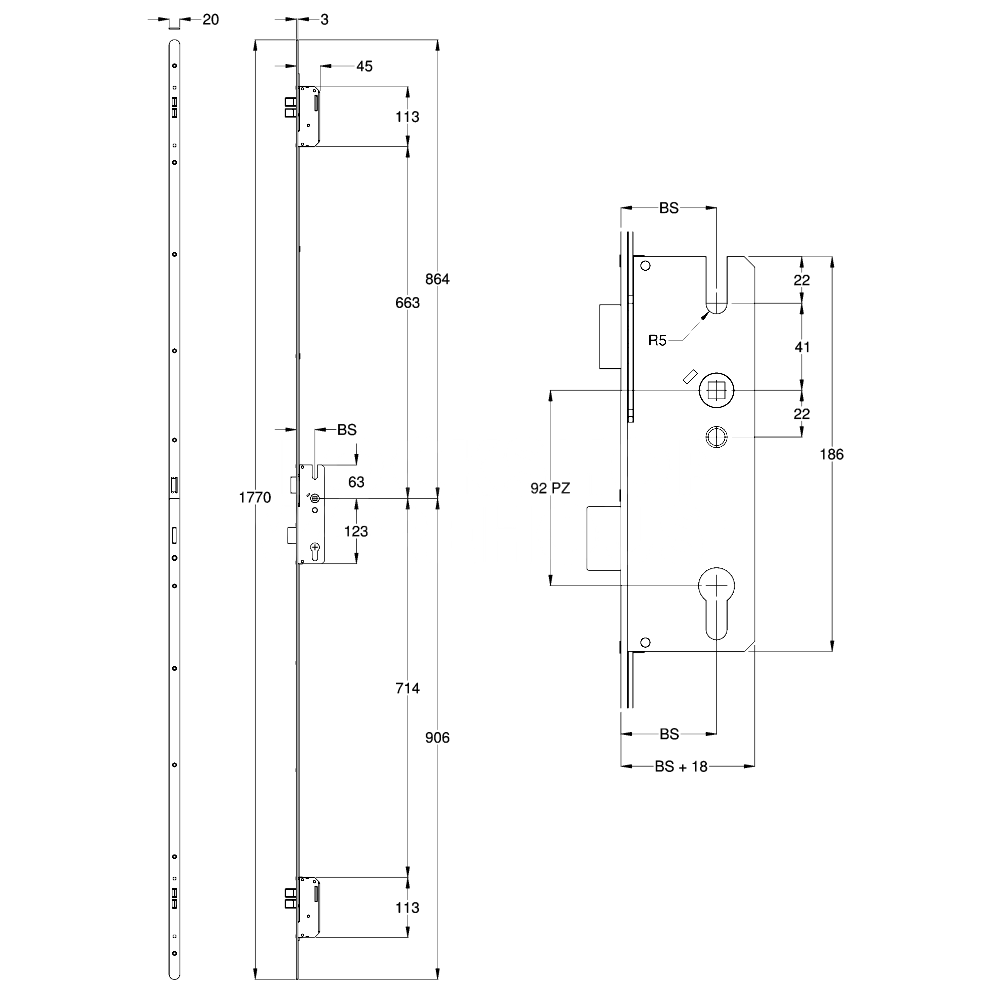

Dimensions Image: Winkhaus Thunderbolt Lever Operated 4 Deadbolt Multipoint Lock
Part Size (mm)
centres 92
Backset 35
Body Length 1770
Case Height 186
Case Depth 53
Locking Point Dead Bolt 4
Faceplate Width 20

FAQs

Use the operating instructions for the exact lever-operated Thunderbolt reference and supplied furniture. Remote and central bolt actions must be established for that configuration; a sibling lock's key-turn sequence is not a substitute.

Security and certification statements require the documented exact-generation doorset and hardware combination. Range-level PAS24, SBD or EN14351-1 references do not certify every replacement installation.

A split-follower designation alone does not prove compatibility with arbitrary lever/lever or lever/pad furniture. Verify the exact spindle kit, fixing dimensions and required outside action.

Handle return depends on the actual lock, spindle arrangement and furniture support. Match those components and rectify worn parts or misalignment; a range cycle-test figure is not a guarantee that any replacement handle will never sag.
