Winkhaus Thunderbolt Single Spindle 4 Deadbolt Multipoint Lock

£160.16

(£133.47 ex VAT)

sku: WINKH-0100
  • Latch and deadbolt centre case with four remote deadbolts
  • Single-spindle lever-operated specification
  • 16mm radius faceplate and 92mm PZ centres
  • 35mm and 45mm backset variants

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon
Latch & Deadbolt

These are the single-spindle 16mm radius full-unit variants. The four-deadbolt count identifies the remote locking points; the centre deadbolt is additional. The selected strip, centre case and matching deadbolt keeps must be verified against the door.

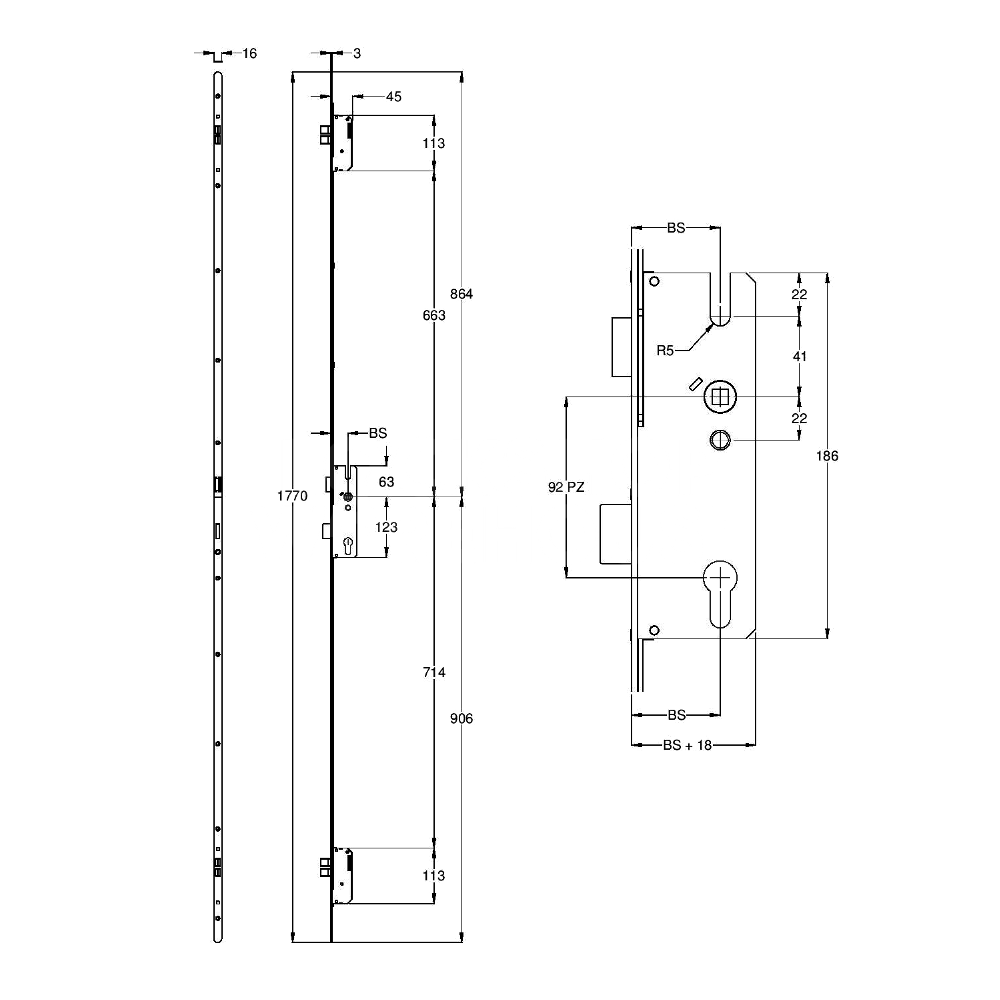

Dimensions Image: Winkhaus Thunderbolt Single Spindle 4 Deadbolt Multipoint Lock
Part Min (mm) Max (mm)
centres 92 -
Backset 35 45
Body Length 1770 -
Case Height 186 -
Case Depth 53 63
Locking Point Dead Bolt 4 -
Faceplate Width 16 -

FAQs

The supplier's four-deadbolt count refers to the remote deadbolts. The centre case has an additional deadbolt and a latch. It should not be changed to five remote deadbolts or treated as five hooks.

The selected supplier rows describe reversible, non-handed single-spindle units. The correct latch orientation and any required setup still need the exact installation drawing; this is not proof of no-adjustment fitting.

These are lever-operated, single-spindle full units: the lever engages the remote locking elements and cylinder locking secures the mechanism. Exact key movement and latch action should follow the selected single-spindle instructions, not a split-follower sibling guide.

Reliable lever return requires the correct lock springing, spindle, furniture and alignment. Confirm the return arrangement for the exact selected reference; matching 92 mm centres alone does not prevent handle droop.
