Winkhaus Trulock Keywind Multipoint Door Lock

£119.70

(£99.75 ex VAT)

sku: WINKH-0041
  • Two-hook key-operated supplied family
  • Latch/deadbolt centre case and single follower
  • 16mm faceplate
  • 35mm and 45mm left/right versions; 55mm right-hand version
  • Exact latch withdrawal and furniture must match the gearbox generation
Document Icon Winkhaus Trulock KTA: manufacturer keywind range guide

size

Hand

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon
10 Year Guarantee
Latch & Deadbolt

A key-operated Winkhaus Trulock two-hook lock with a latch and deadbolt and a 16mm faceplate. Supplied in the listed backset and handed configurations.

Keywind operation engages and retracts the hooks and centre deadbolt. Latch withdrawal is a separate part of the opening action; confirm the exact gearbox instructions and furniture for the supplied reference.

Match the handed part, backset, case dimensions and keeps. The 55mm option in this family is right-handed only.

Replacement fit: match the exact supplied reference and generation, handing, backset, follower/spindle arrangement, faceplate profile, case routing, fixing holes, locking-point positions and frame keeps. PZ centres alone do not establish furniture or replacement fit. Follow the applicable fitting limits rather than trimming a strip simply because it is too long.

The stored manufacturer document is a range/system guide. Match its applicable configuration to the supplied reference; it is not an exact drawing or certificate for every older part number.

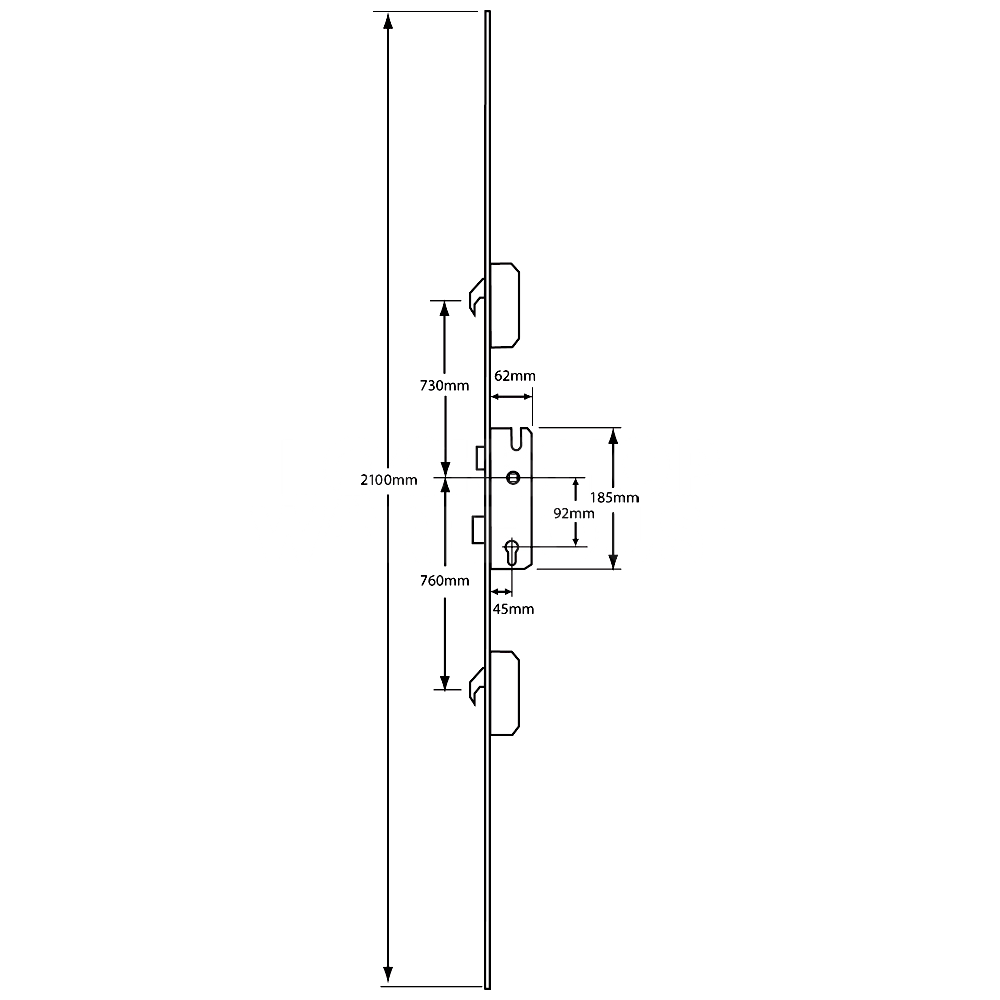

Dimensions Image: Winkhaus Trulock Keywind Multipoint Door Lock
Part Min (mm) Max (mm)
centres 92 -
Backset 35 55
Body Length 2100 -
Case Width 47 57
Case Height 185 -
Locking Point Hooks 2 -
Faceplate Width 16 -

FAQs

Keywind operation moves the hooks and centre deadbolt. Latch withdrawal is a separate opening action; use the operating instructions for the exact gearbox generation and furniture.

Security and fire performance must refer to the documented complete doorset and approved hardware combination. A general range statement is not a certificate for every replacement installation.

These supplied references are handed. The family contains 35mm and 45mm left/right versions and one 55mm right-hand version; no 55mm left-hand item is established in this family.

Check the supplied lock-strip contents and obtain the exact matching centre and remote-point keeps for the frame profile. A strip without its specified frame hardware is not a complete installation; do not assume keeps or furniture are included.
