skip to Winkhaus Trulock+ Pyro Lever Operated Multipoint Lock

Winkhaus Trulock+ Pyro Lever Operated Multipoint Lock

£123.58

(£102.98 ex VAT)

sku: WINKH-0054
  • Lever-operated latch and deadbolt for reliable security
  • Two hook bolts for enhanced locking point strength
  • Designed for compatibility with FD30 fire door applications
  • Split spindle functionality for flexible handle operation
  • 20mm radius faceplate for precise door preparation
  • Industry-standard 92mm centres for hardware compatibility

Hand

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The Winkhaus Trulock+ Pyro is a robust lever-operated multipoint lock system designed for residential and commercial timber or composite doors. This mechanism integrates a central latch and deadbolt with two high-security hook bolts to provide a high level of physical protection and effective weather compression.

A key feature of this system is its suitability for FD30 fire door applications, making it a critical component for fire-rated door sets where safety compliance is essential. The split spindle functionality offers versatile operation, allowing for different access configurations depending on the choice of external furniture.

This lock is commonly used as a direct replacement for failed units or in new installations. It features a 20mm radius faceplate for neat routing and 92mm centres to ensure compatibility with most standard UK door handles. The construction is focused on mechanical durability and long-term performance within a fire-safety system.

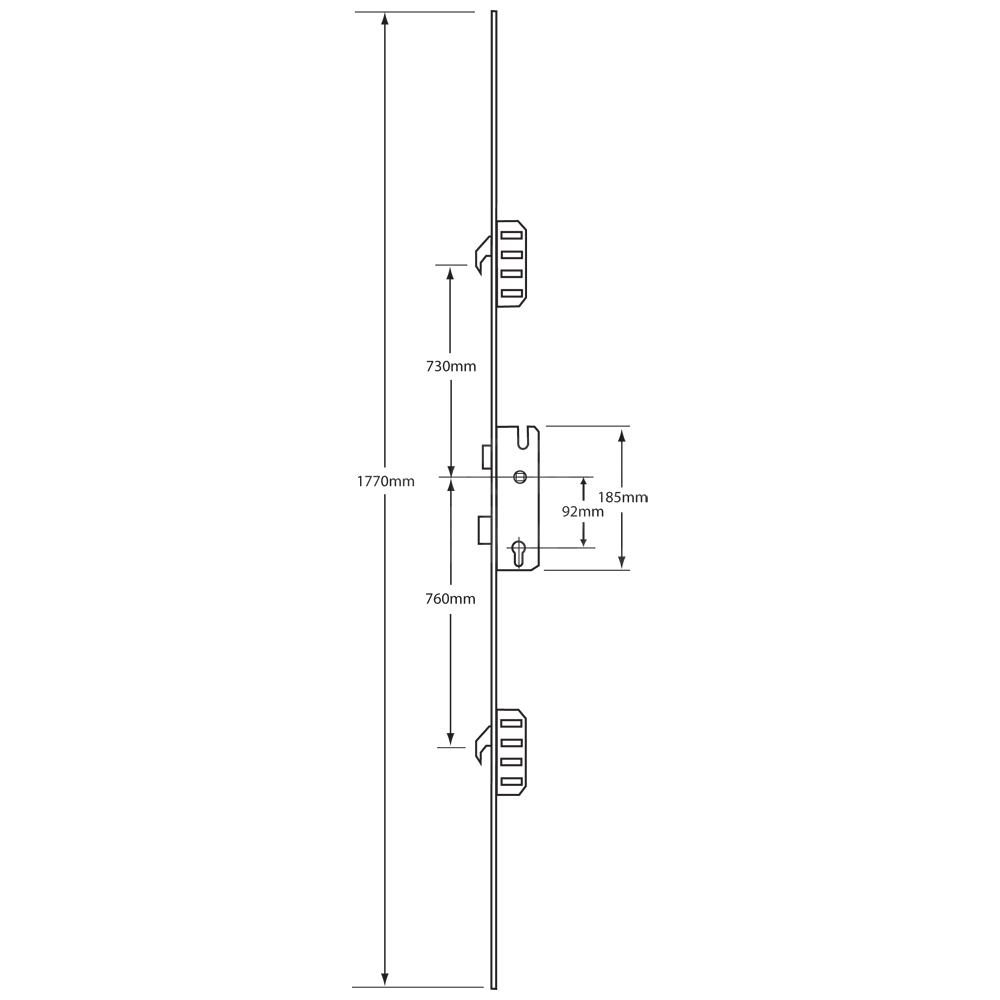

Dimensions Image: Winkhaus Trulock+ Pyro Lever Operated Multipoint Lock
Part Size (mm)
centres 92
Backset 45
Body Length 1770
Case Width 60
Case Height 185
Locking Point Hooks 2
Faceplate Width 20

FAQs

Yes, the Winkhaus Trulock+ Pyro is specifically designed for FD30 fire door applications. It is a critical component for fire-rated door sets in residential and commercial environments where safety compliance is essential.

This lock features industry-standard 92mm centres, making it compatible with the vast majority of standard UK multipoint door handles. It also features a 20mm radius faceplate designed for neat routing and precise door preparation.

This system offers high physical protection and effective weather compression by utilizing multiple locking points:

  • A central latch and deadbolt
  • Two high-security hook bolts for enhanced strength at the top and bottom of the door

The split spindle functionality allows for versatile handle configurations. It enables you to set up the door so that it can only be opened from the outside using a key, providing an extra layer of security even when the multipoint bolts are not fully engaged.
