Winkhaus Trulock STV-F 2070 M2 Keywind Multipoint Lock

£127.91

(£106.59 ex VAT)

sku: WINKH-0096
  • Supplier-identified KTA keywind action
  • Latch and deadbolt centre case with two hooks
  • Single-spindle specification and 92mm PZ centres
  • 20mm radius faceplate
  • 45mm and 55mm backsets in separate left- and right-hand references

size

Hand

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon
Latch & Deadbolt

The four retained STV-F2070 M2 KTA configurations are separate handed references with 45 mm or 55 mm backsets. Match the selected hand and complete strip to the correct door preparation, cylinder and frame parts.

Use keeps specified for the exact KTA version and door profile. An AV3 or AV4 association alone does not establish compatibility with this keywind lock.

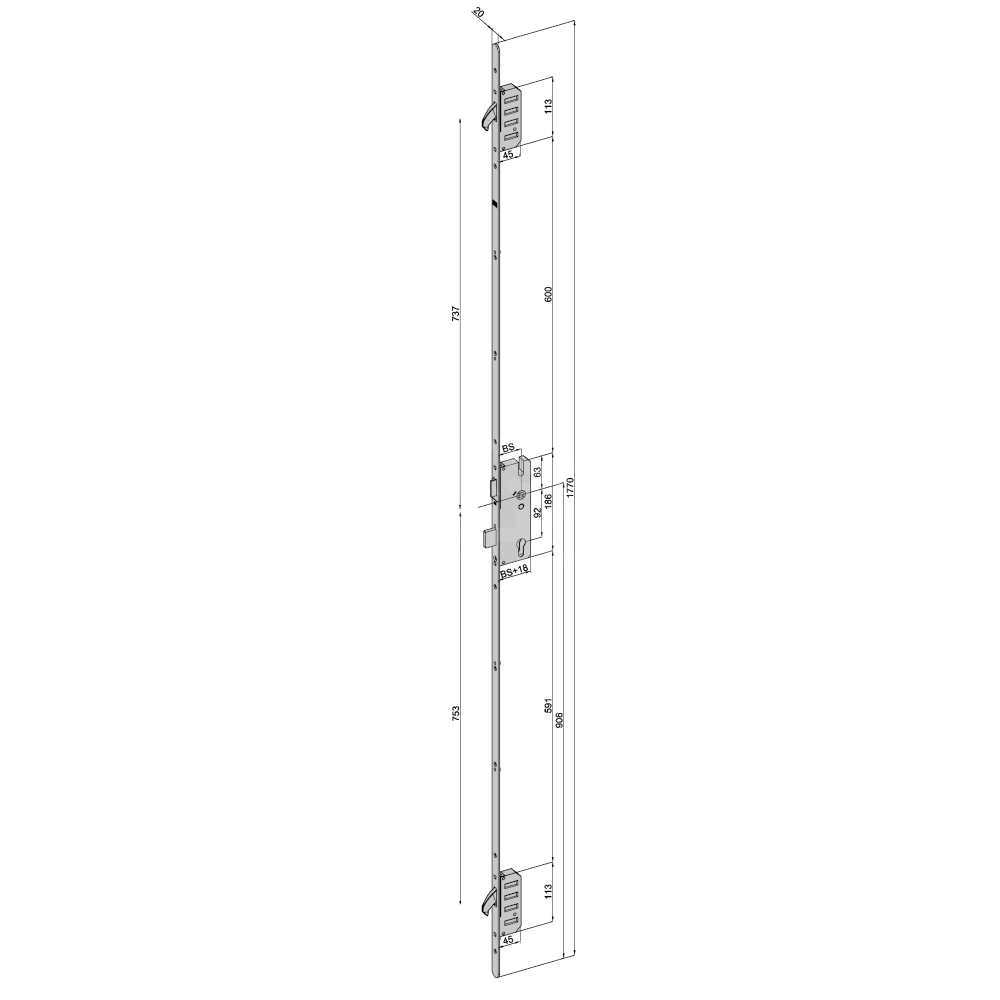

Dimensions Image: Winkhaus Trulock STV-F 2070 M2 Keywind Multipoint Lock
Part Min (mm) Max (mm)
centres 92 -
Backset 45 55
Body Length 1770 -
Case Width 63 73
Case Height 186 -
Locking Point Hooks 2 -
Faceplate Width 20 -

FAQs

The source explicitly identifies these four references as Trulock KTA keywind units: the key operates the multipoint locking elements. Exact latch movement, handle action and cylinder requirements still require a manual bound to the selected handed reference.

The supplier lists timber and composite applications with a 20mm radius faceplate. That does not make the locks universal replacements: each handed 45mm or 55mm configuration needs matching case and remote-point preparation and frame parts.

The two hooks and centre latch and deadbolt engage the corresponding frame keeps. Required security performance must be supported by the assessment for the complete doorset and its specified hardware; hook count alone is not a security rating.

The source lists 92mm PZ and a single spindle. Furniture, cylinder and any fixed-pull arrangement must match the exact KTA case and door; PZ alone is not handle compatibility. The associated AV3/AV4 keeps also remain unverified for these KTA references.
