skip to Yale 1109 Finish Chrome Plate

Yale 1109 Finish Chrome Plate

£12.00

(£10.00 ex VAT)

sku: L11727
  • Standard 5-pin tumbler mechanism for reliable security and operation
  • Designed for use with surface-mounted rim locks and night latches
  • Provides external key access for residential and commercial timber doors
  • Functions as a direct replacement part for existing Yale 1109 series installations
  • Trimmable tailpiece allows for adjustment to suit various door thicknesses
  • Compatible with a wide range of standard rim night latch lock cases
  • Supplied with two keys as standard for immediate deployment

Key Configuration

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

5/10 Security Rating
tick Key Profile: Standard

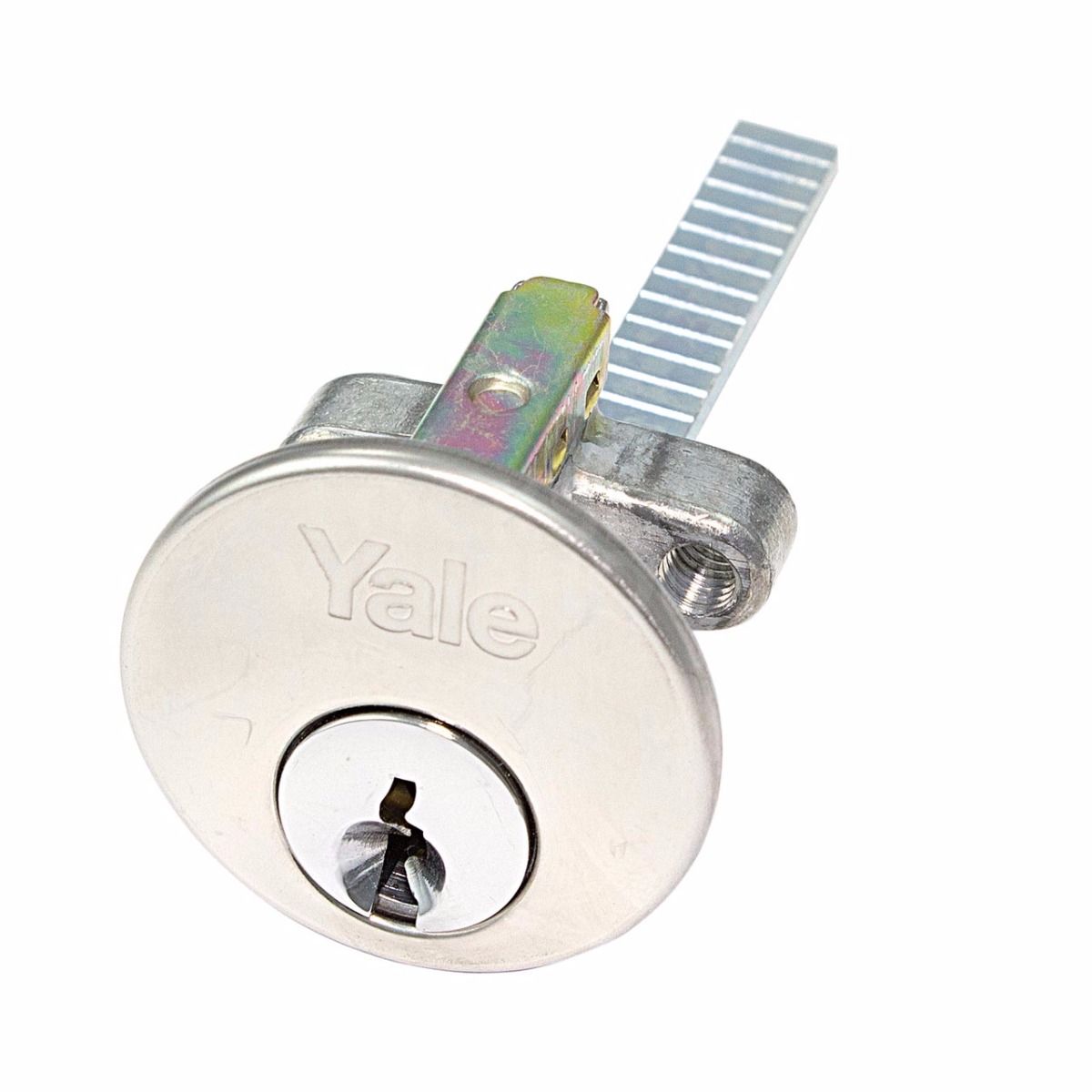

The Yale 1109 Rim Cylinder is a standard 5-pin security component designed for use with surface-mounted rim locks, often referred to as night latches. It serves as the external key interface, allowing for secure access from the outside of a timber door. This cylinder is commonly used as a replacement part for worn or damaged cylinders, enabling a security upgrade or key change without the need to replace the entire internal lock assembly.

It features a flat connecting bar (tailpiece) that can be easily trimmed to the required length to accommodate different door thicknesses. This makes it a versatile solution for maintenance and repair tasks on standard external doors. The 5-pin tumbler system provides a dependable level of security suitable for domestic and light commercial applications.

  • Ideal for new installations or as a direct replacement for existing rim cylinders
  • Compatible with Yale and most other brands of standard rim night latches
  • Suitable for timber doors where a surface-mounted lock is fitted
  • Provides an efficient way to change locks or move to a keyed-alike system
Dimensions Image: Yale 1109 Finish Chrome Plate

Brand

SKU

L11727

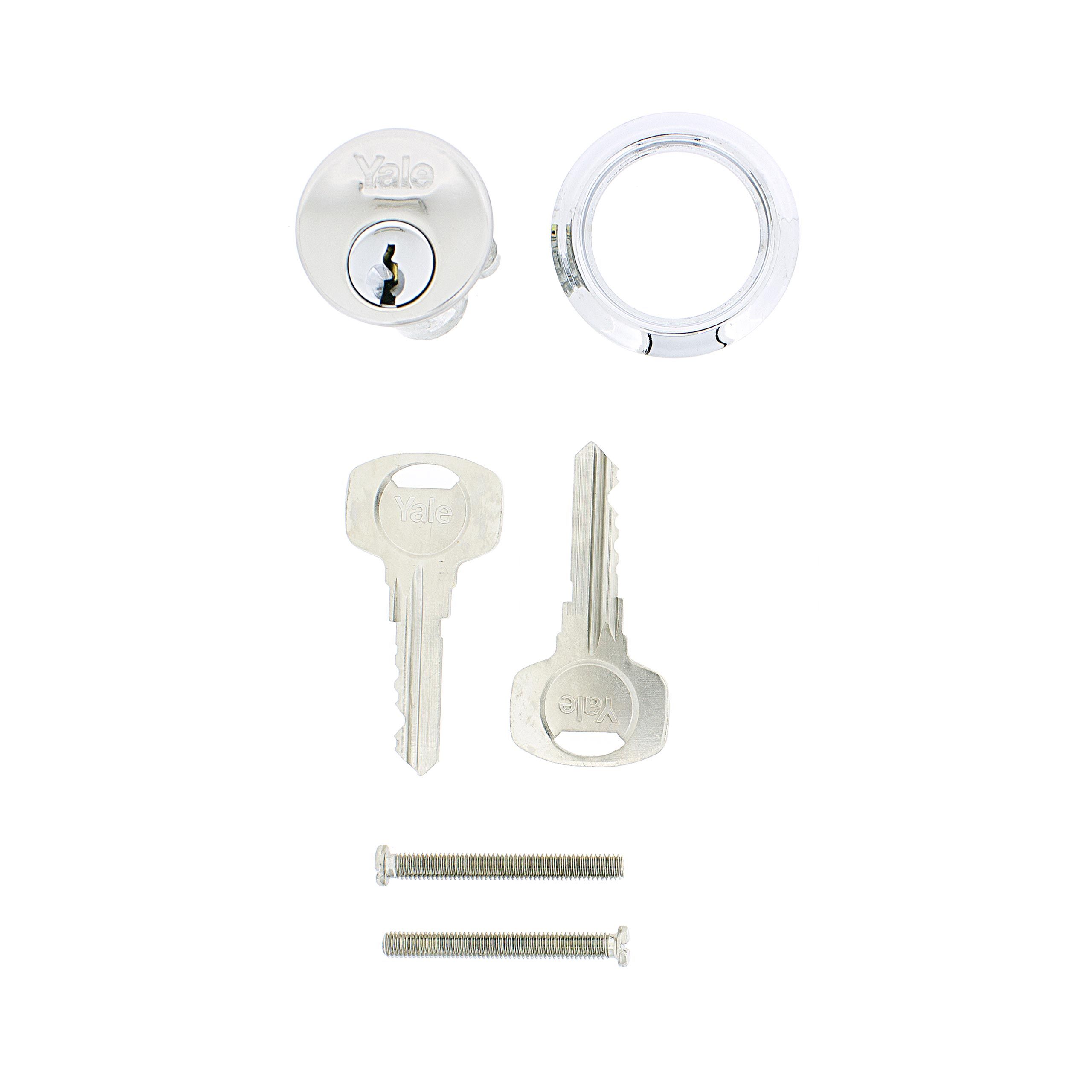

Box Contents

2 keys

fixing screws

rim cylinder

rosette

Key Profile

Key Profile: Standard

FAQs

All the extra keys for the locks are cut to the specific locks that have been ordered.

With most locks that are altered to make them keyed alike you will only get 1 x set of keys with them. So if the locks normally come with 2 you will only get 2 keys total and if they come with 3 keys you will only get 3 x keys total when ordered keyed alike.

Yes, the UK rim cylinders are all a standard size and will fit all rim night latch style locks. The only exception is the Ingersoll SC1 cylinder as this is a larger unit with different fixing positions. Most locks will need the tailbar to be chopped down to match the old cylinder tailbar length. If the tailbar is too long it can cause the lock to bind and be tight when turning the key.

Yes, we do sell the finger pulls for these cylinders. They fit in behind the cylinder and act as a finger pull to pull the door closed behind you. If you need one of these you can find it in our door furniture section under pull handles and finger plates.

The Yale 1109 is a 5-pin tumbler rim cylinder designed as a spare or replacement for use with standard cylinder rim locks and nightlatches.

As standard, this rim cylinder is supplied with 2 keys. Note that if you order multiple cylinders keyed alike, you will only receive 2 keys in total for the entire order.

This specific model is chrome plated, providing a bright, clean look that resists tarnishing and matches modern door hardware.

This is a standard 5-pin tumbler cylinder. While it provides reliable security for general domestic use on rim locks, it is a standard security component rather than a high-security rated cylinder.
