Yale 1109 Finish Satin Chrome

£12.00

(£10.00 ex VAT)

sku: yale1109-SC
  • Standard 5-pin tumbler mechanism for reliable operation
  • Compatible with most surface-mounted rim locks and night latches
  • Designed as a direct replacement part for existing door hardware
  • Provides secure external key access to residential and commercial doors
  • Adjustable tailpiece can be cut to length to suit various door thicknesses
  • Supplied with two keys as standard

Key Configuration

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

5/10 Security Rating
tick Key Profile: Standard

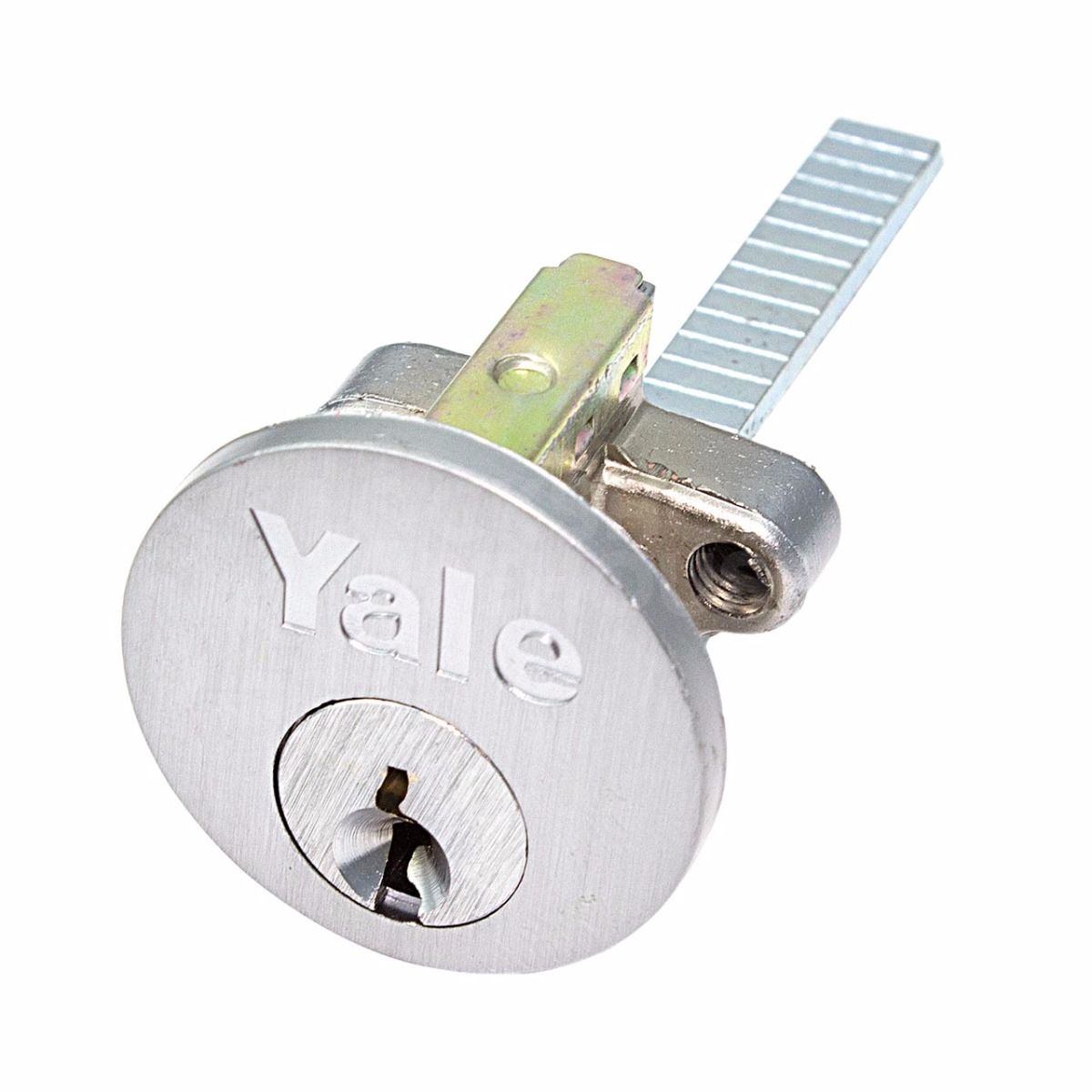

The Yale 1109 Rim Cylinder is a standard security 5-pin tumbler mechanism designed for use with surface-mounted rim locks, commonly referred to as night latches. This component serves as the external key-operated part of the lock assembly, enabling secure entry from the outside of a property.

This cylinder is primarily utilised as a replacement part for existing installations where security needs to be restored due to lost keys or mechanical wear. It is compatible with a wide range of standard rim night latches from various manufacturers, making it a versatile choice for maintenance and repair tasks on timber doors.

Installation involves inserting the cylinder through a pre-drilled hole in the door and securing it to the internal lock body. The integrated tailpiece is notched, allowing it to be accurately cut to the required length to accommodate different door depths.

  • Five-pin security mechanism for standard protection
  • Suitable for residential and light commercial applications
  • Universal compatibility with most standard rim night latches
  • Supplied with two keys for immediate operation

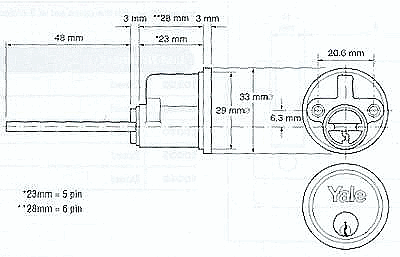

Dimensions Image: Yale 1109 Finish Satin Chrome

Brand

SKU

yale1109-SC

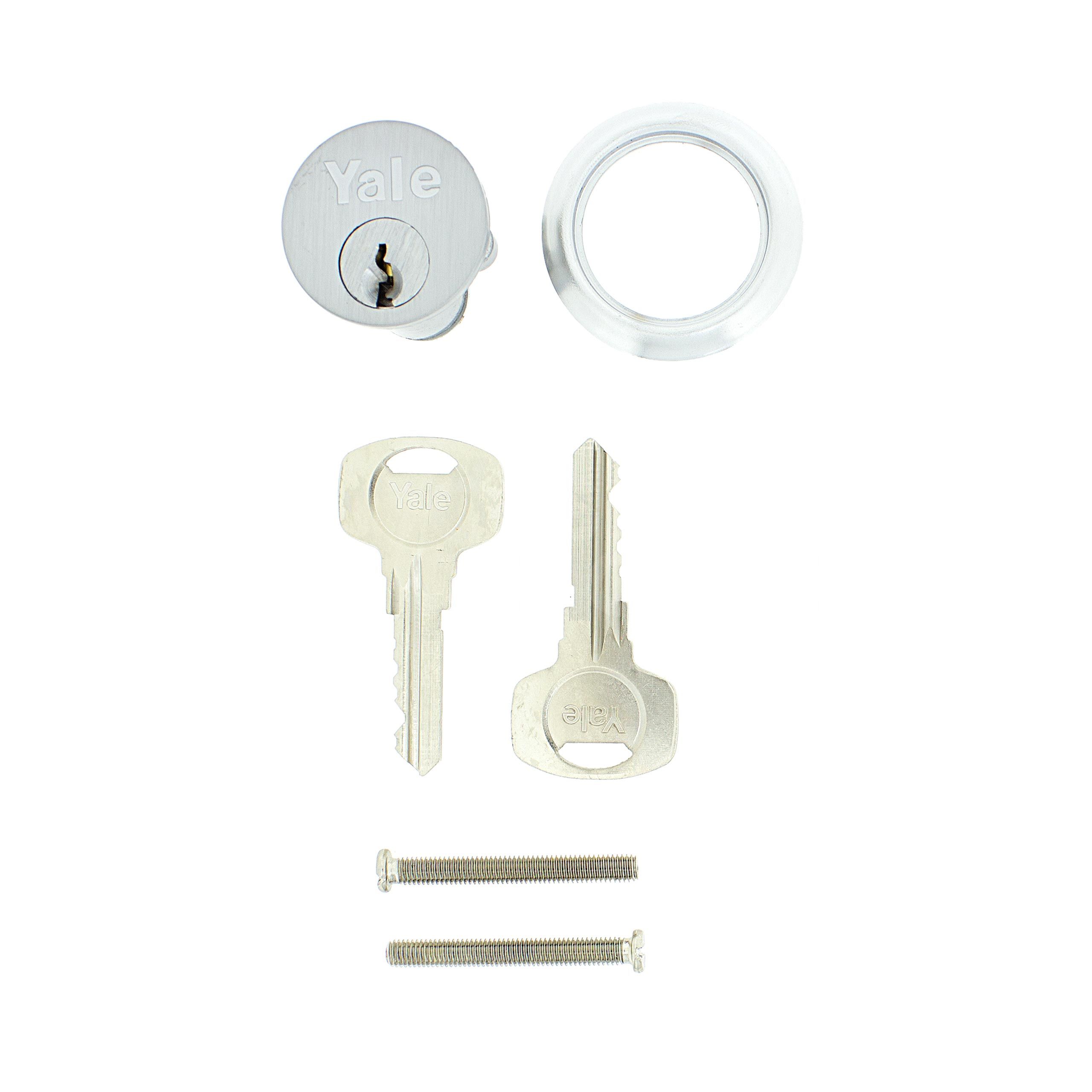

Box Contents

2 keys

fixing screws

rim cylinder

rosette

Key Profile

Key Profile: Standard

FAQs

All the extra keys for the locks are cut to the specific locks that have been ordered.

With most locks that are altered to make them keyed alike you will only get 1 x set of keys with them. So if the locks normally come with 2 you will only get 2 keys total and if they come with 3 keys you will only get 3 x keys total when ordered keyed alike.

Yes, the UK rim cylinders are all a standard size and will fit all rim night latch style locks. The only exception is the Ingersoll SC1 cylinder as this is a larger unit with different fixing positions. Most locks will need the tailbar to be chopped down to match the old cylinder tailbar length. If the tailbar is too long it can cause the lock to bind and be tight when turning the key.

Yes, we do sell the finger pulls for these cylinders. They fit in behind the cylinder and act as a finger pull to pull the door closed behind you. If you need one of these you can find it in our door furniture section under pull handles and finger plates.

The Yale 1109 is a standard replacement rim cylinder designed for use with most common surface-mounted rim locks and nightlatches on timber doors.

Each individual cylinder is supplied with 2 keys. However, if you order multiple units keyed alike, they are prepared in-house and you will receive a total of 2 keys for the whole set.

This is a standard 5-pin tumbler cylinder, providing reliable security for domestic applications. It is a direct replacement for the original cylinder found in Yale rim locks.

This model features a satin chrome plated finish. It offers a contemporary, brushed appearance that is also highly resistant to corrosion, making it suitable for external use.
