skip to Yale PM444 Mortice Door Bolt

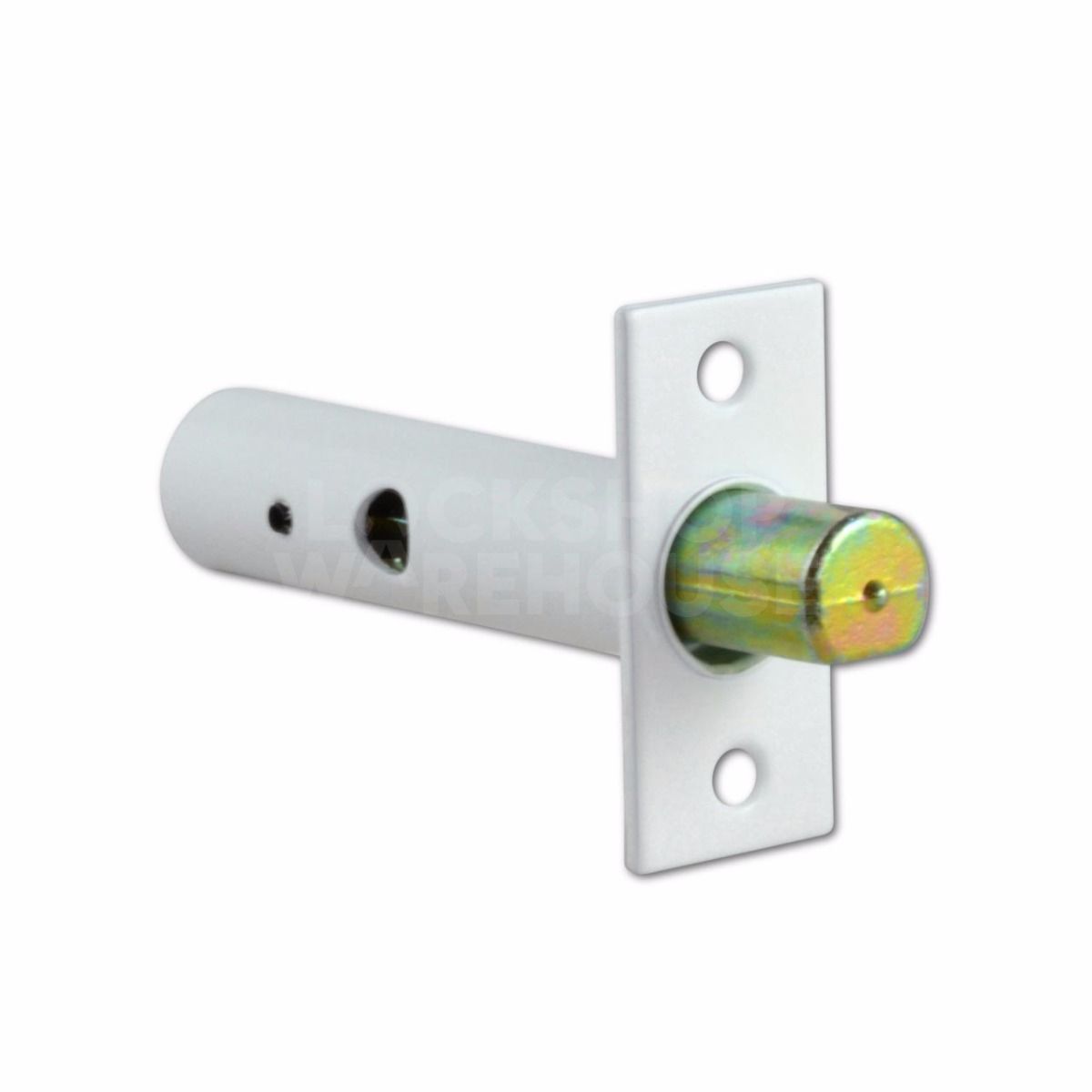

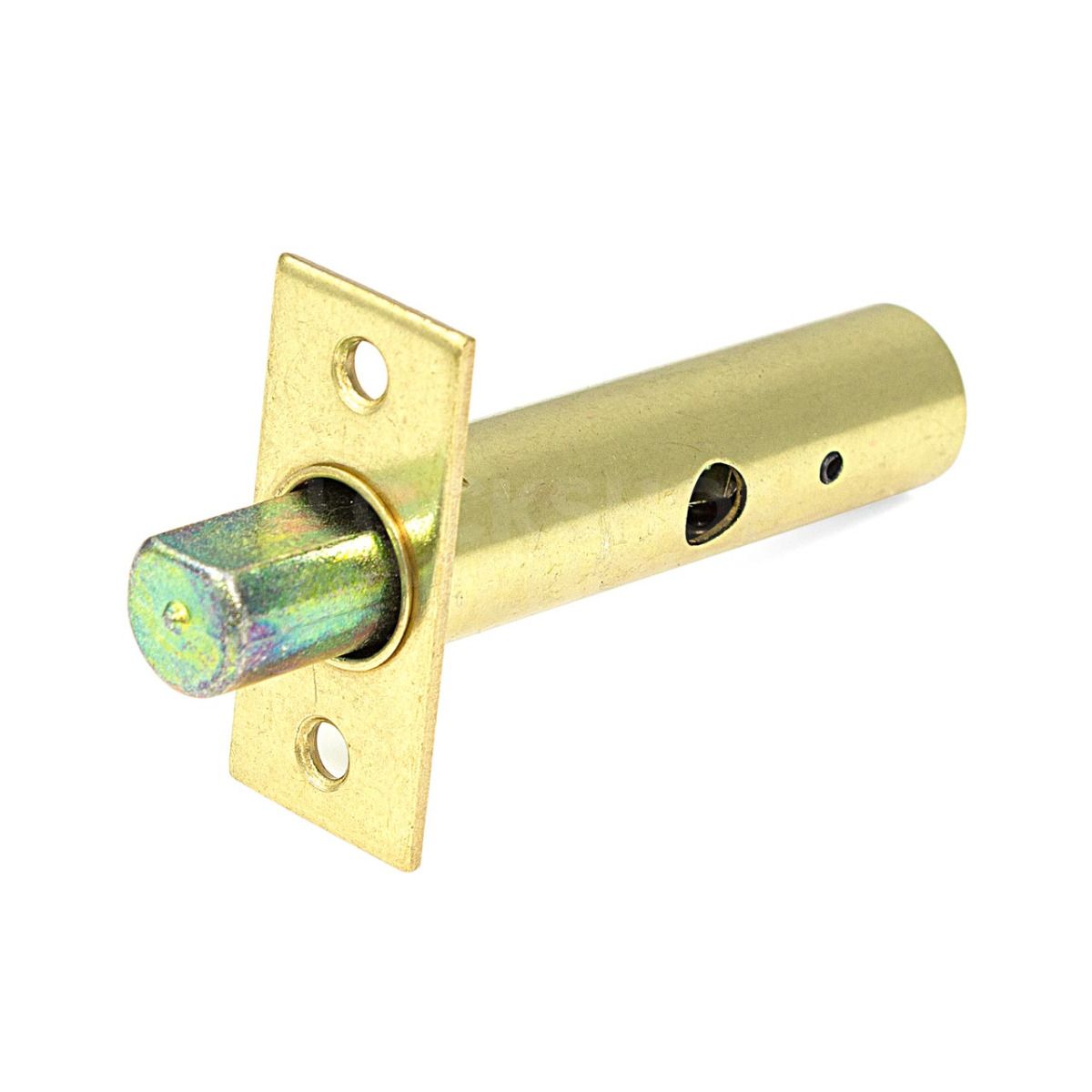

Yale PM444 Mortice Door Bolt

£11.99

(£9.99 ex VAT)

sku: 8002
  • Security mortice bolt designed for timber door applications
  • Key-operated rack and pinion mechanism for reliable deployment
  • Provides additional locking points to enhance overall door security
  • Compact cylindrical body allows for simple mortice installation
  • Compatible with standard splined rack bolt keys
  • Concealed fitting ensures door aesthetics are maintained
  • Universal design suitable for both left and right-handed doors

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

9/10 Security Rating

The Yale PM444 Mortice Door Bolt is a concealed security solution designed specifically for timber doors. Commonly known as a rack bolt, this device is morticed into the door leaf to provide an additional point of resistance against forced entry. It is typically installed in pairs, positioned at the top and bottom of the door, to complement the primary locking system and ensure the door remains secure across its full height.

The bolt functions via a rack and pinion mechanism, which is activated by inserting a standard splined rack bolt key into the keyhole on the face of the door. This mechanism drives the bolt forward into a strike plate mounted on the door frame. Because the key is removable and the bolt is hidden within the door, it provides a clean, unobtrusive security upgrade that is ideal for both domestic and commercial settings.

This product is suitable for new door installations or as a direct replacement for existing rack bolts of similar dimensions. Its simple cylindrical body allows for easy preparation using standard drill bits, making it a practical choice for improving perimeter security on front and rear external doors.

  • Provides secondary security without visible external hardware
  • Hardened steel bolt for resistance to physical attack
  • Universal handed design for versatile installation
  • Operates smoothly with standard star-shaped keys

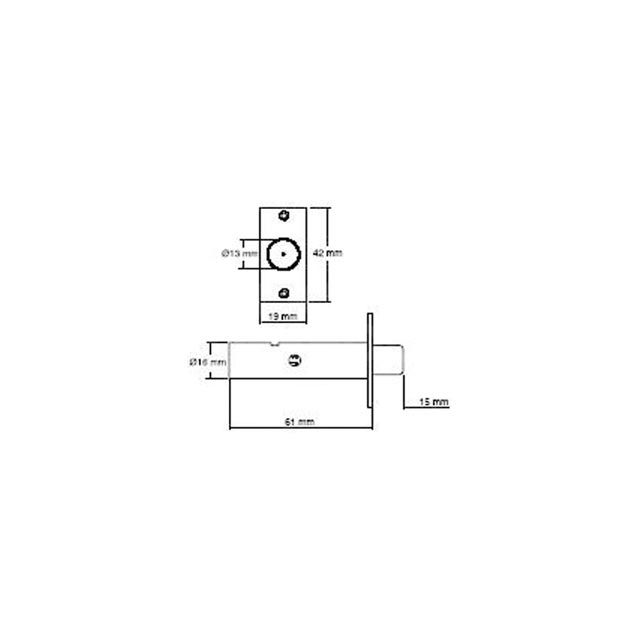

Dimensions Image: Yale PM444 Mortice Door Bolt

Brand

SKU

8002

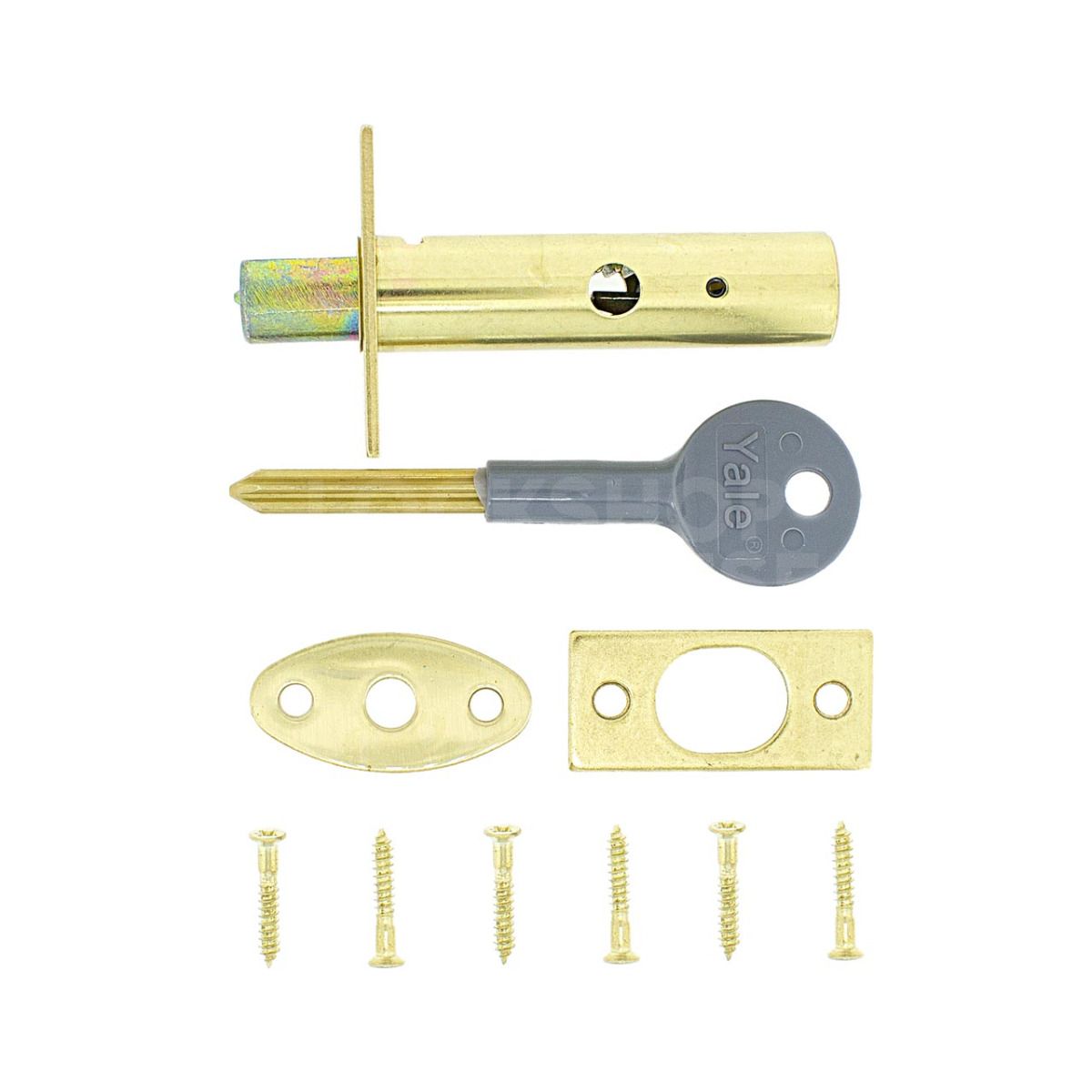

Box Contents

Door Bolt

fixing screws

strike plate

key escutcheons

1 key

FAQs

The Yale PM444 is a security bolt that is locked and unlocked using a key from either side of the door. This provides a simple and effective way to secure additional points on a door.

No, the key is supplied separately for this product. You will need to purchase a compatible Yale key separately to operate the bolt mechanism.

For fitting purposes, the bolt features the following specifications:

  • Body Length: 62mm
  • Body Diameter: 16mm
  • Backset: 32mm
  • Bolt Throw: 16mm

The Yale PM444 mortice door bolt is available in two finishes to complement your existing hardware: Brass or White.

skip to Yale Door & Window Bolt Keys (pair)

Yale Door & Window Bolt Keys (pair)

£3.90

(£3.25 ex VAT)

sku: 1079
  • Compatible with Yale 8001M window bolts
  • Suited for Yale PM444 and Y2PM444 door bolts
  • Cruciform profile specifically designed for Yale security bolt mechanisms
  • Ideal for use as spare or replacement keys
  • Moulded plastic heads for improved grip and ease of operation
  • Ensures continued functionality of lockable secondary security hardware
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

These Yale Door and Window Bolt Keys are designed specifically for use with the Yale range of secondary security bolts. They serve as a direct replacement or a convenient set of spares to ensure that your property remains secure and accessible. The keys feature a specific cruciform profile that precisely matches the internal mechanism of compatible Yale locking hardware.

Typical applications include:

  • Replacement of lost keys for existing window or door bolt installations
  • Provision of additional keys for multiple occupants or keyholders
  • Restoring functionality to 8001M or PM444 security devices

These keys are essential for the maintenance of home security, allowing for the easy operation of bolts mounted to timber or metal frames. They are compatible with the following models:

  • Yale 8001M Window Bolt (Product code: 1077)
  • Yale PM444 Door Bolt (Product codes: 8002 or Y2PM444)

Brand

SKU

1079

Box Contents

2 keys
