skip to Yale 2PM444 Mortice Door Bolt 2 bolts and 1 Key

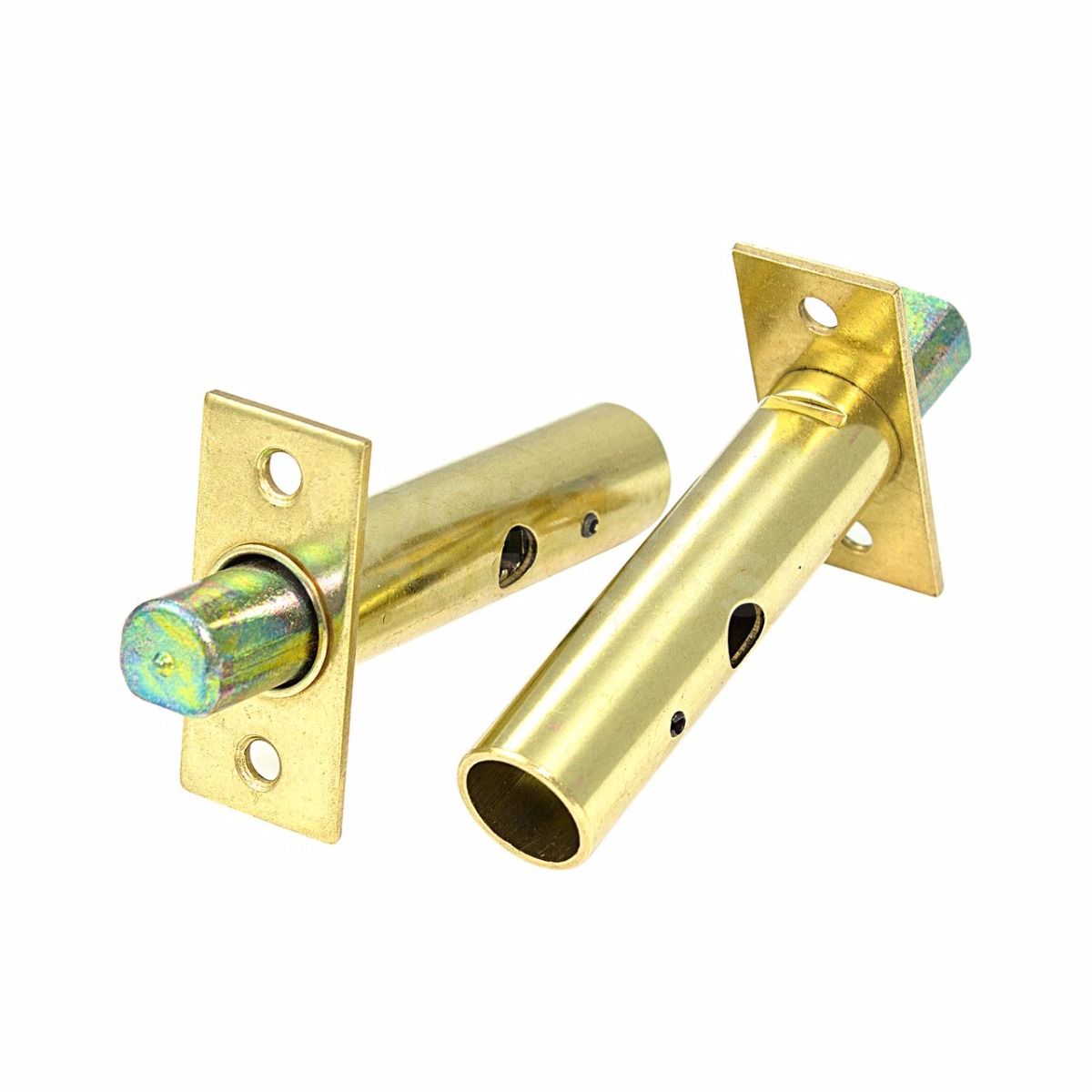

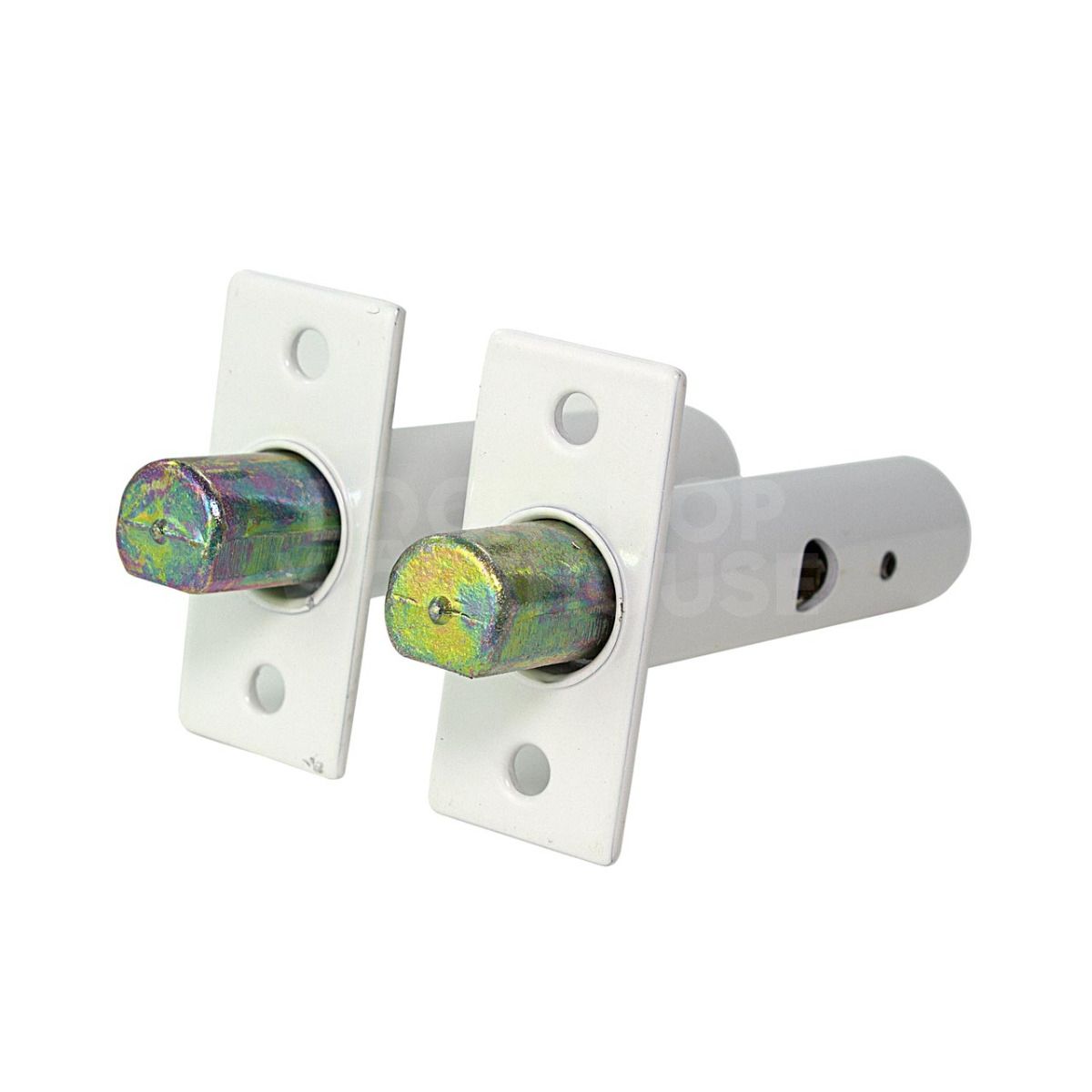

Yale 2PM444 Mortice Door Bolt 2 bolts and 1 Key

£17.76

(£14.80 ex VAT)

sku: Y2PM444
  • Provides additional secondary security for timber doors
  • Mortice-fit design ensures a discreet and flush installation
  • Key-operated mechanism works from either side of the door
  • 16mm bolt throw provides secure engagement into the frame
  • Suitable for use on front, back, or internal door applications
  • Operated via a standard splined key for ease of use

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

9/10 Security Rating

The Yale 2PM444 Mortice Door Bolt is a robust secondary security solution designed for timber doors. Often referred to as a rack bolt, it is installed into the edge of the door, providing a concealed locking point that is ideal for reinforcing front, back, or internal doors. Its mortice design ensures that the hardware is hidden within the door leaf when not in use, maintaining the aesthetic of the door.

These bolts are operated using a splined key from either side, allowing for flexible access control. When turned, the internal rack and pinion mechanism extends the bolt 16mm into the door frame, offering significant resistance against forced entry. They are typically installed in pairs—one at the top and one at the bottom of the door—to provide balanced security across the full height of the opening.

  • Function: Secondary security bolt with key operation.
  • Compatibility: Designed specifically for use with timber door frames and leaves.
  • Installation: Requires a 16mm diameter hole for the body, making it a straightforward upgrade for existing doors or new installs.
  • System Role: Works alongside primary deadlocks or sashlocks to enhance overall door strength.

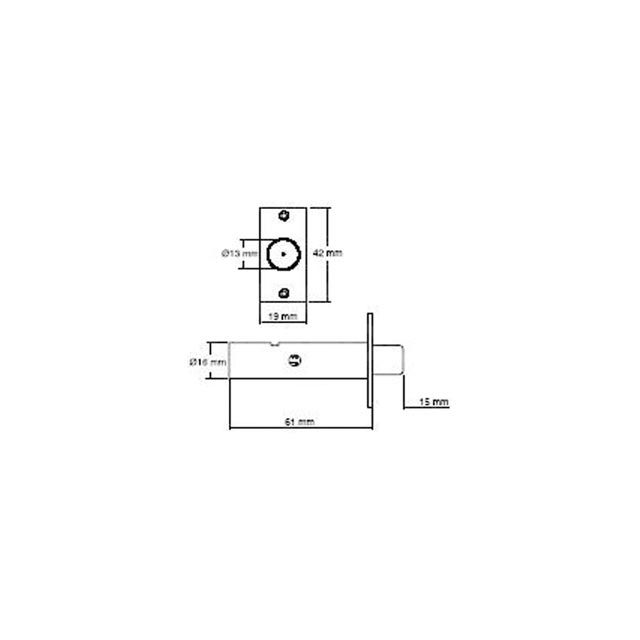

Dimensions Image: Yale 2PM444 Mortice Door Bolt 2 bolts and 1 Key

Brand

SKU

Y2PM444

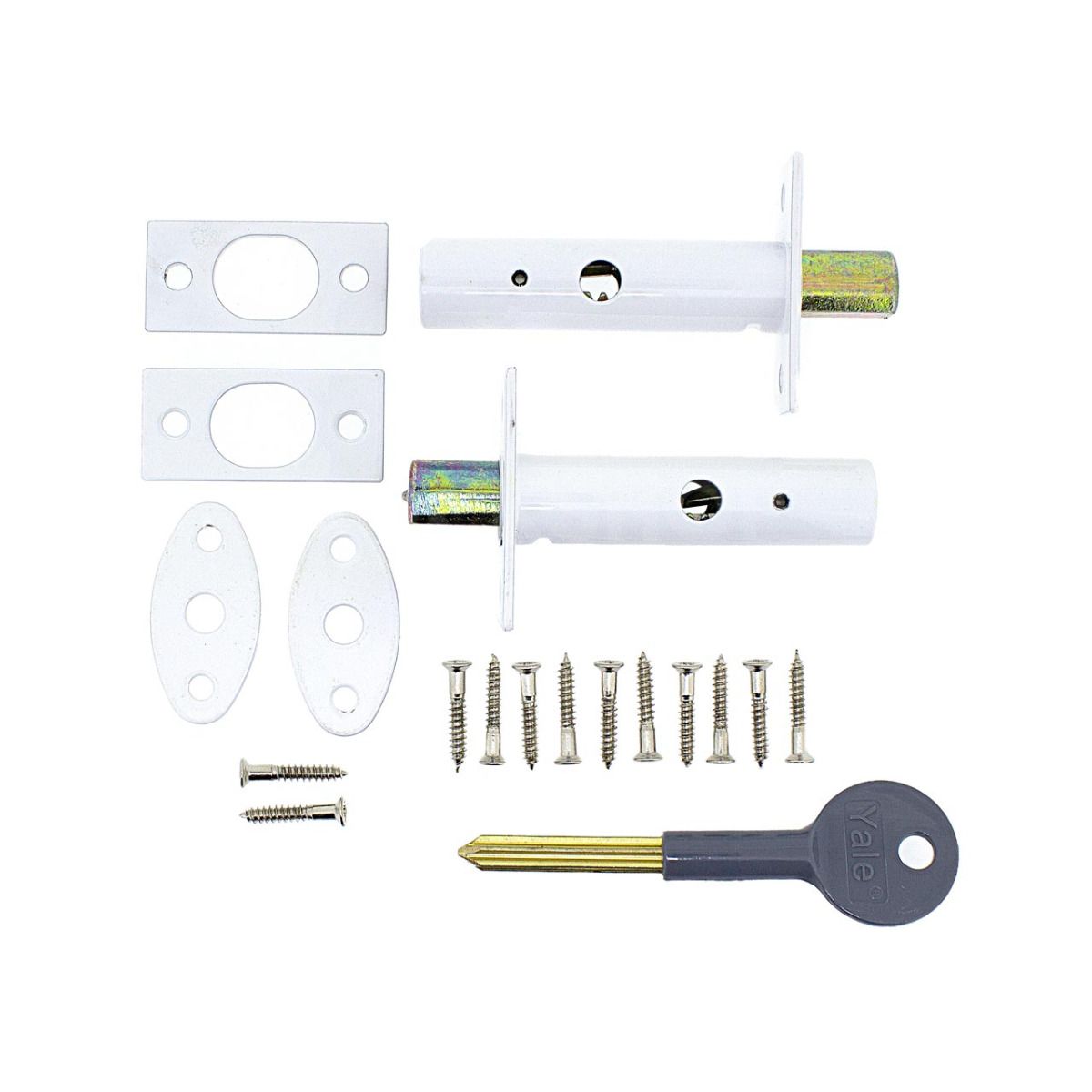

Box Contents

fixing screws

1x Key

2x Strike Plates

2x Bolts

2x Escutcheons

FAQs

Each pack is supplied with two Yale 2PM444 mortice door bolts and one key. This provides a convenient solution for securing a single door at both the top and bottom with a shared key.

Yes, the operation of these bolts allows them to be locked or unlocked by key from either side of the door, provided the appropriate access holes are drilled during installation.

To ensure a correct fit, please note the following measurements:

  • Body Length: 62mm
  • Body Diameter: 16mm
  • Backset: 32mm
  • Bolt Throw: 16mm

This mortice door bolt is available in two finish options to match your decor:

  • Polished Brass
  • White

skip to Yale Door & Window Bolt Keys (pair)

Yale Door & Window Bolt Keys (pair)

£3.90

(£3.25 ex VAT)

sku: 1079
  • Compatible with Yale 8001M window bolts
  • Suited for Yale PM444 and Y2PM444 door bolts
  • Cruciform profile specifically designed for Yale security bolt mechanisms
  • Ideal for use as spare or replacement keys
  • Moulded plastic heads for improved grip and ease of operation
  • Ensures continued functionality of lockable secondary security hardware
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

These Yale Door and Window Bolt Keys are designed specifically for use with the Yale range of secondary security bolts. They serve as a direct replacement or a convenient set of spares to ensure that your property remains secure and accessible. The keys feature a specific cruciform profile that precisely matches the internal mechanism of compatible Yale locking hardware.

Typical applications include:

  • Replacement of lost keys for existing window or door bolt installations
  • Provision of additional keys for multiple occupants or keyholders
  • Restoring functionality to 8001M or PM444 security devices

These keys are essential for the maintenance of home security, allowing for the easy operation of bolts mounted to timber or metal frames. They are compatible with the following models:

  • Yale 8001M Window Bolt (Product code: 1077)
  • Yale PM444 Door Bolt (Product codes: 8002 or Y2PM444)

Brand

SKU

1079

Box Contents

2 keys
