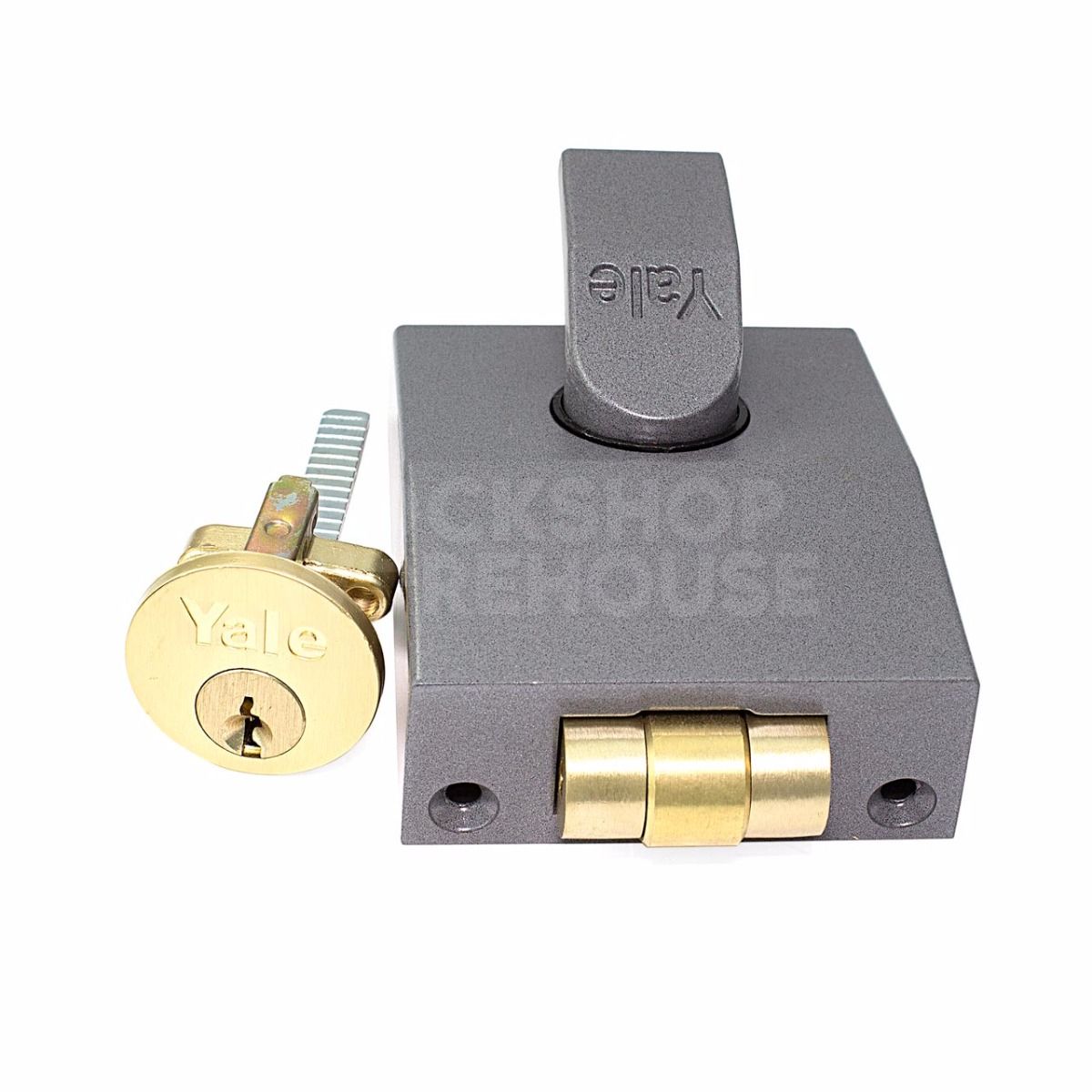

Yale 81 Rollerbolt

£46.80

(£39.00 ex VAT)

sku: Yale-81
  • Roller catch mechanism allows for convenient push and pull door operation
  • Converts into an extended throw deadbolt for enhanced security
  • Dual-sided operation via internal handle or external key
  • Deadbolt throw extends from 9mm to 20mm for increased engagement
  • Compatible with standard timber doors from 32mm to 57mm thick
  • Five-pin cylinder mechanism provides reliable security
  • Designed for use with fixed door pull handles

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

6/10 Security Rating

The Yale 81 Rollerbolt is a versatile rim night latch specifically designed for doors where a push/pull operation is preferred over a standard lever handle. It features a roller catch that holds the door closed while allowing it to be opened with a simple push or pull, making it ideal for use with fixed pull handles.

For increased security, the rollerbolt can be transitioned into a deadlocking mode. By turning the internal handle clockwise or the external key anti-clockwise, the bolt extends from its standard 9mm projection to a 20mm deadbolt throw. This deeper engagement provides significant resistance against forced entry. The lock is suitable for both new installations on timber doors and as a direct replacement for existing units of the same series.

  • Applications: Domestic timber doors requiring a combination of convenience and security.
  • Compatibility: Suitable for doors with a thickness between 32mm and 57mm.
  • Security: Includes a five-pin cylinder mechanism for standard protection.

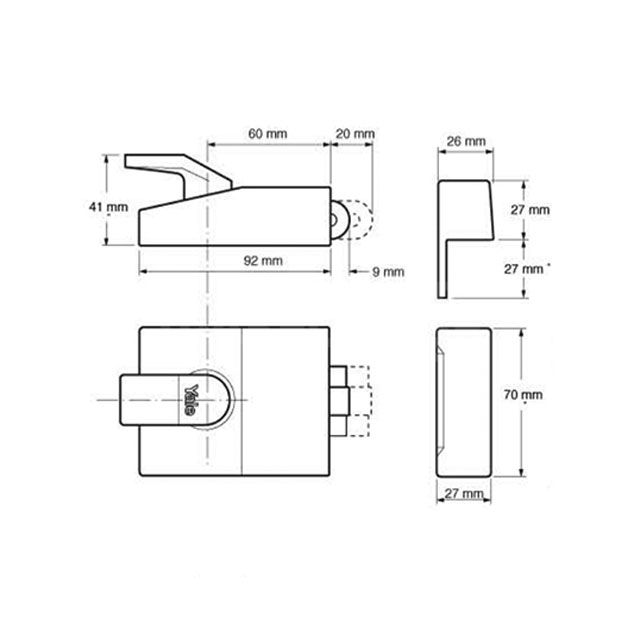

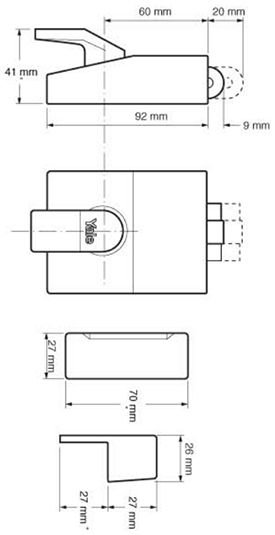

Dimensions Image: Yale 81 Rollerbolt
Dimensions Image: Yale 81 Rollerbolt

Brand

SKU

Yale-81

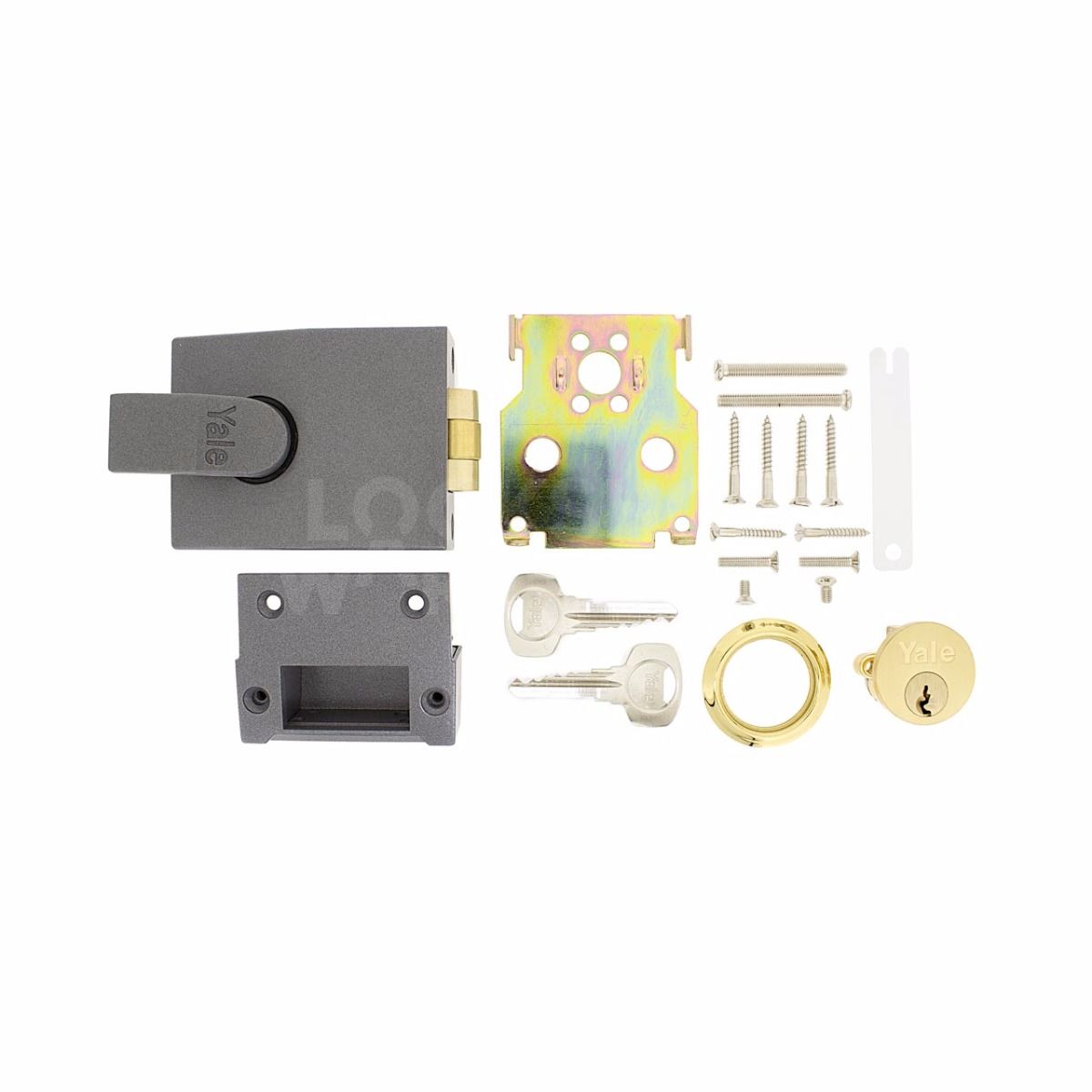

Box Contents

2 keys

strike plate

fixing screws

instructions

cylinder screw

rim cylinder

nightlatch

rosette

FAQs

No unfortunately not, the BS3621 nightlatches can not be reversed. The only way to do this is to install a standard nightlatch from our outward opening nightlatch section and then also install a BS3621 deadlock. This deadlock will give you the insurance rating required.

You need to make sure the lock you fit is NON deadlocking. This means that you can not lock people into the property. There are a few nightlatches designed for these doors. The best is the Yale PBS3 or PBS4 or a more standard model would be the Yale 88 or 84.

The best locks for these would be the a rollerbolt style lock with a masterkeyed cylinder. I would not recommend installing a standard Nightlatch on these doors as the tenants can lock themselves out if they close the door behind them. We can supply these locks for you on a masterkey if you require or keyed differ if you would prefer.

The backset on these locks is the distance from the edge of the door to the center of the Rim Cylinder. This is the large 32mm hole drilled through the door. There are 2 main sizes of these, 60mm or 40mm. Easiest way to find out what you have is to measure from outside of the door from the edge to the center of the keyhole. If you have a solid door you should use the 60mm backset locks, if you have a glass panelled door then you may need to use the 40mm backset. If your current lock is 50mm backset you will need to see our Union locks as only Union made a 50mm backset lock in the past.

There are different levels of security you can have with all locks. The standard locks (i.e. Yale 77, Yale 88) , then the mid level locks which can be key deadlocked from outside ( Yale 89, Union nightlatches). The double locking versions are only suitable for homes with other means of exit as you can lock people inside the house if not careful.

All the extra keys for the locks are cut to the specific locks that have been ordered.

With most locks that are altered to make them keyed alike you will only get 1 x set of keys with them. So if the locks normally come with 2 you will only get 2 keys total and if they come with 3 keys you will only get 3 x keys total when ordered keyed alike.

The Yale 81 operates as a convenient roller catch for easy push/pull access during the day. When security is required, it can be converted into a deadbolt by manually throwing the bolt, extending it from 9mm to 20mm.

Yes, the deadlocking bolt can be engaged or disengaged from either side. From the inside, a clockwise turn of the handle throws the bolt, while from the outside, an anti-clockwise turn of the key is used.

This rim night latch is designed to fit standard timber doors with a thickness ranging from 32mm up to 57mm.

The Yale 81 Rollerbolt comes with two keys as standard. It features a secure 5-pin cylinder mechanism for reliable locking performance.
