Yale Doormaster Lever Operated Latch & Deadbolt Single Spindle Gearbox To Suit GU - 35/92

£52.04

(£43.37 ex VAT)

sku: YDM-GB-GU-D35T
  • Direct retrofit for old-style GU multipoint locks
  • 35mm backset and 92mm centers
  • Includes both latch and deadbolt mechanisms
  • Reversible latch for left or right-hand doors
  • Standard Euro profile lock case
  • Durable lever-operated single spindle design
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The Yale Doormaster Lever Operated Latch & Deadbolt Single Spindle Gearbox is specifically designed as a direct retrofit solution for repair jobs where the existing full-length GU multipoint lock strip is still functional. It is ideal for replacing worn or broken center cases on older GU systems.

This gearbox features a 35mm backset and 92mm centers, with a total case height of 207mm and a width of 50mm. Its versatile design includes a reversible latch, allowing it to be configured for both left and right-handed door applications by simply removing the faceplate and flipping the latch.

  • Backset: 35mm
  • Centers: 92mm
  • Case Height: 207mm
  • Case Width: 50mm
  • Operation: Lift lever to engage, turn cylinder to lock

The unit is designed for use with a standard Euro profile cylinder and operates using a single spindle. It provides a cost-effective way to restore the security and functionality of your door without needing to replace the entire multipoint locking system.

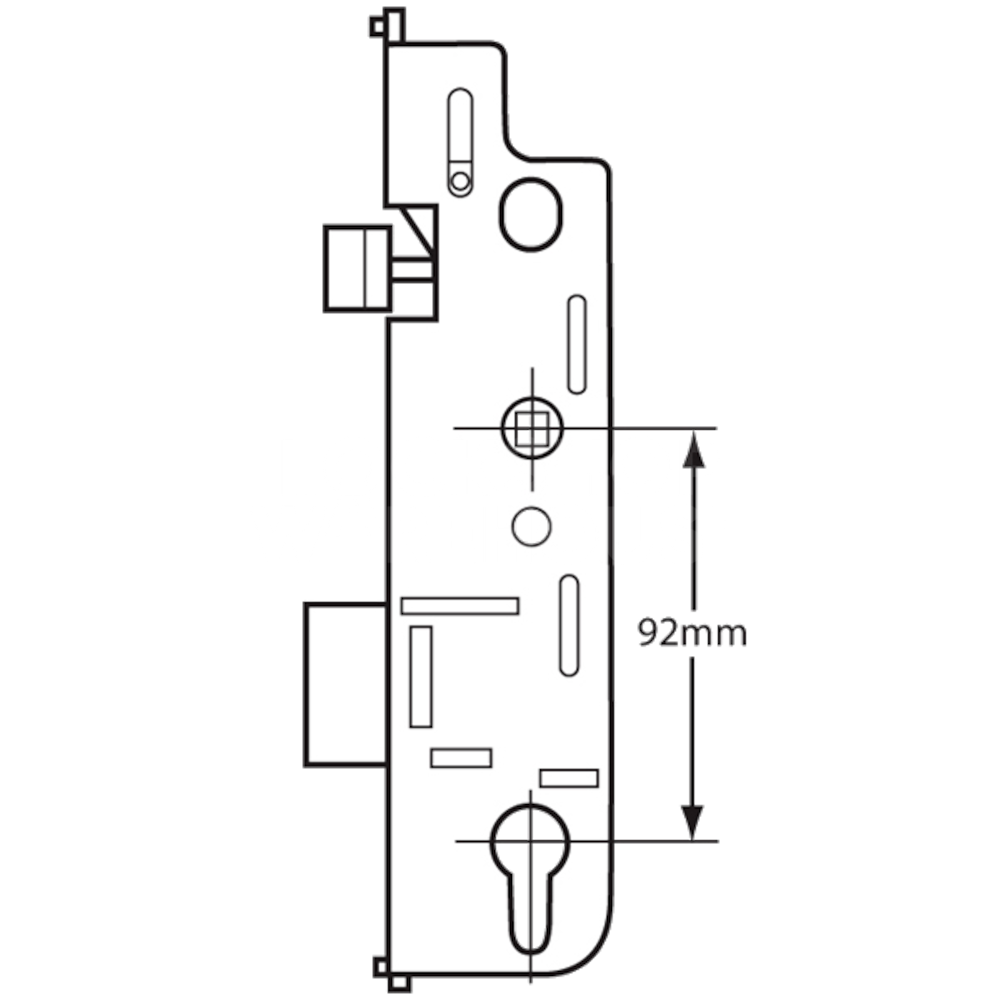

Dimensions Image: Yale Doormaster Lever Operated Latch & Deadbolt Single Spindle Gearbox To Suit GU - 35/92
Part Size (mm)
centres 92
Backset 35
Case Width 50
Case Height 207

FAQs

Yes, this unit is specifically designed as a direct retrofit for older style GU multipoint locks. It allows you to replace a faulty center case without the need to purchase and install an entire new full-length locking system.

Yes, the latch is fully reversible, making it suitable for both left and right-handed door configurations. You can change the handing easily by removing the faceplate and flipping the latch over.

You should confirm the following dimensions match your current setup:

  • 35mm Backset: The distance from the front of the faceplate to the center of the spindle hole.
  • 92mm Centers: The distance from the center of the spindle hole to the center of the key hole circle.

This is a lever-operated gearbox. To engage the multipoint locking hooks or bolts on your door, simply lift the handle upwards. You then turn the key in the Euro profile cylinder to throw the deadbolt and lock the mechanism in place.
