Yale Doormaster Lever Operated Latch & Hookbolt Gearbox - 35/92

£35.04

(£29.20 ex VAT)

sku: YDM-GBLMASTH-35D
  • Lockmaster-style latch and hook centre-case repair component
  • Listed 35mm backset
  • Listed 92mm and 62mm follower centres
  • Separate from LM21 and other visually similar hook cases
  • Match the exact revision, fixings, connections and furniture
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Latch & Hookbolt

The Yale Doormaster Lockmaster-style Latch & Hook Gearbox is listed as YDM-GBLMASTH-35D, with 35mm backset and twin followers.

Compare the physical case reference and revision, fixing points, drive connections and latch/hook layout before replacement. A similar appearance, case height or shared backset does not establish fit to a Safeware or LM21 mechanism.

Confirm the snib arrangement of the supplied revision before relying on a latch hold-back function or reusing snib furniture. A round hole is not sufficient to approve the function. Use the exact fitting and operating instructions, and match the handles and spindles to the actual follower arrangement.

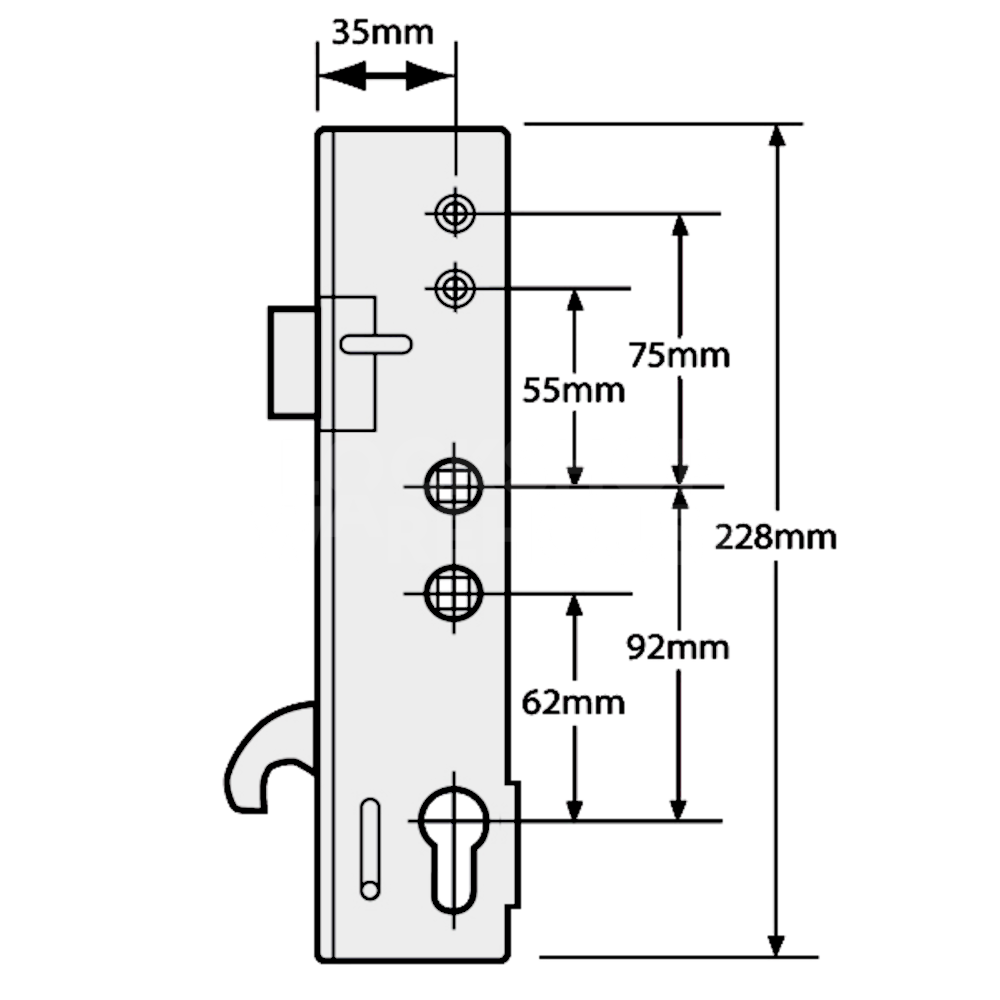

Dimensions Image: Yale Doormaster Lever Operated Latch & Hookbolt Gearbox - 35/92
Part Size (mm)
Backset 35
Case Width 47
Case Height 228

FAQs

Match the existing case reference and revision, backset, follower arrangement, fixings and drive connections. Case height or visual similarity alone cannot distinguish every compatible and incompatible Lockmaster-style or Safeware case.

The latch is listed as reversible. Follow the supplied revision's instructions and confirm the orientation of the complete lock and furniture before fitting.

The two follower positions are listed at 92mm and 62mm centres. Match the correct handles and spindles; this is not automatic approval for split-follower, lever/pad or outside key-only operation.

Confirm that the supplied revision has the required snib function and use its instructions. Do not rely on a round hole or assume that pushing the latch in provides hold-back on every replacement case or with every snib handle.
