Yale L22180 Monarch Sashcase - 50mm SC

£140.53

(£117.11 ex VAT)

sku: L22180
  • Specially designed for use in metal doors
  • Features a 24mm double throw deadbolt for enhanced security
  • Reversible latch bolt for easy handing adjustment
  • Integrated anti-thrust snib for added protection
  • Compatible with standard Euro cylinder mechanisms
  • Durable 50mm case depth construction
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

tick Latch & Deadbolt

The Yale L22180 Monarch Sashcase is a high-performance lock specifically engineered for metal door applications. Also widely recognized as the "Monarch lock," this sashcase offers a blend of reliability and high security for commercial and residential settings. It features a robust 24mm double throw deadbolt, providing superior resistance against forced entry.

This lock is designed with 48mm centres and a 30.5mm backset, fitting into a 50mm deep case. It is equipped with an anti-thrust snib to prevent unauthorized manipulation of the latch. The reversible latch feature ensures versatility; simply use a screwdriver through the back of the case to push and rotate the latch to suit the handing of your door.

  • Centres: 48mm
  • Backset: 30.5mm
  • Case Depth: 50mm
  • Mechanism: Euro Cylinder
  • Spindle: Single

Operation is simple and secure: lift the lever to engage the locking mechanisms and complete a full turn of the cylinder to lock. To open, perform a full turn of the key and push down on the lever.

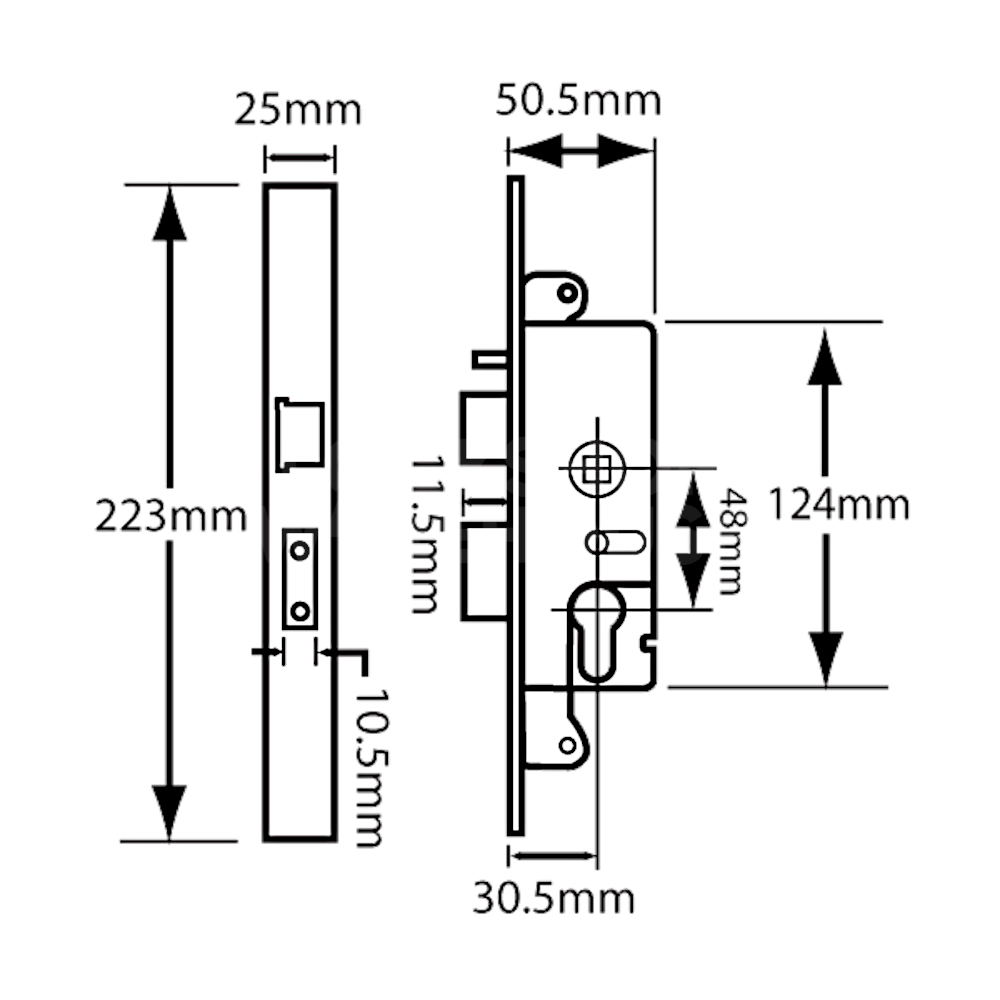

Dimensions Image: Yale L22180 Monarch Sashcase - 50mm SC
Part Size (mm)
centres 48
Backset 31
Case Width 50
Case Height 124
Case Depth 50
Forend Width 25
Forend Length 223
Faceplate Width 25

FAQs

The Yale L22180 Monarch Sashcase is specifically engineered for use in metal doors. While it may fit other profiles depending on the preparation, its construction and 50mm case depth are optimized for the specific requirements of commercial and residential metal door systems.

This lock features a reversible latch for easy adjustment. To change the handing, use a screwdriver through the opening at the back of the lock case to push and rotate the latch until it is in the correct orientation for your door's opening direction.

Before ordering, please check that your door preparation matches these key specifications:

  • Centres: 48mm
  • Backset: 30.5mm
  • Case Depth: 50mm

The unit is designed to work with standard Euro cylinder mechanisms and a single spindle operation.

To secure the door, lift the lever handle to engage the mechanisms and then complete a full turn of the key in the Euro cylinder to throw the 24mm deadbolt. To unlock, perform a full turn of the key and then push down on the lever to retract the latch and deadbolt.
