Yale Lockmaster AutoEngage Classic Latch & Deadbolt Multipoint Lock

£130.70

(£108.92 ex VAT)

sku: LOCKM-0042
  • Classic complete units: YAS1-3502-27 and YAS1-4502-27
  • Listed 35mm and 45mm backset configurations
  • 20mm radius-ended faceplate
  • Security latches engage on closure; do not confuse this with the centre deadbolt
  • Match the original generation, furniture, route and keeps

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

BS EN 1670:2007 - Grade 4
PAS 24:2016
Latch & Deadbolt

This AutoEngage Classic family contains the non-SM YAS1-3502-27 and YAS1-4502-27 locks with radius-ended faceplates. Match the selected backset and complete mechanism to the original door.

Automatic security-latch engagement is not the same as operating the separate centre deadbolt. Use the key-locking and unlocking sequence specified for the fitted lock. A newer smart-prepared SMYAS1 unit or its keeps should not be substituted solely because the rest of the code looks similar.

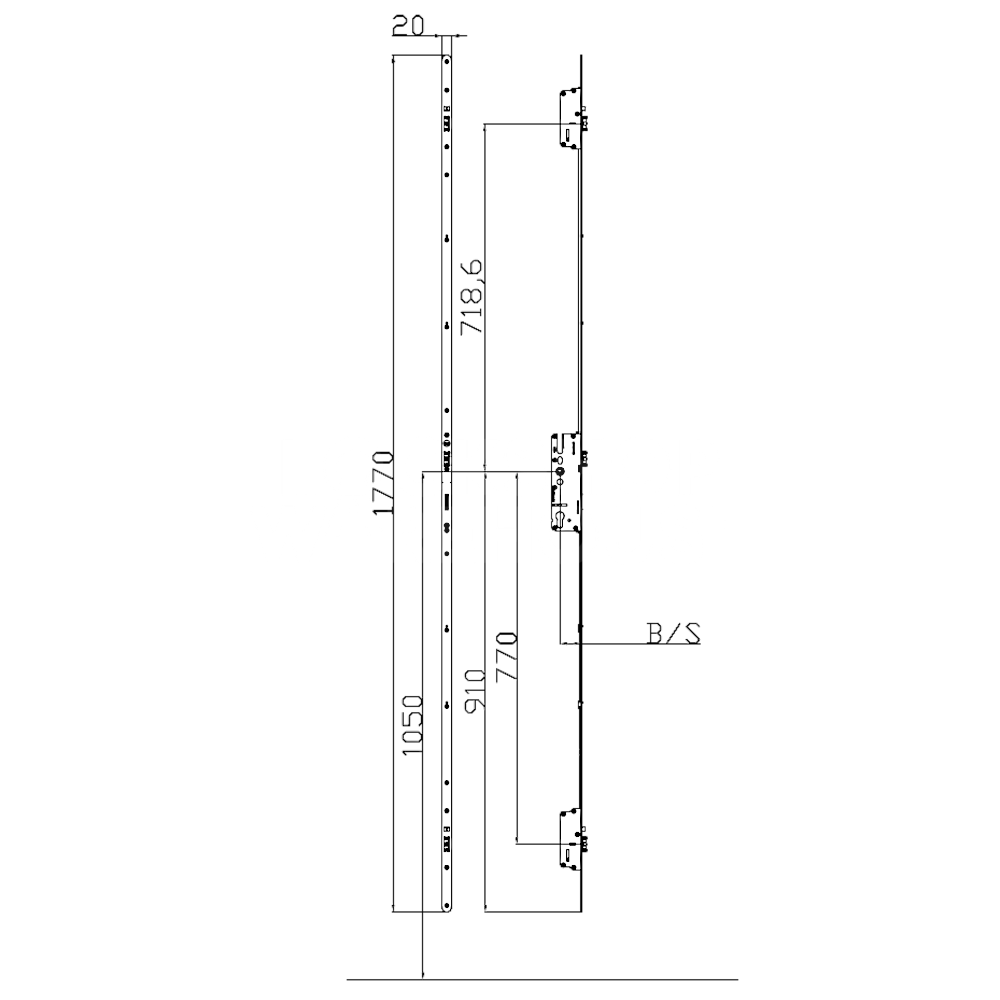

Dimensions Image: Yale Lockmaster AutoEngage Classic Latch & Deadbolt Multipoint Lock
Part Min (mm) Max (mm)
centres 92 -
Backset 35 45
Body Length 1770 -
Faceplate Width 20 -

Brand

SKU

LOCKM-0042

Certifications

tick BS EN 1670:2007 - Grade 4
tick PAS 24:2016

FAQs

The security latches engage on door closure. This does not mean that the separate centre deadbolt has been thrown; carry out the key-locking step specified for the fitted AutoEngage lock.

It is listed for timber and composite door applications, but only a matching complete preparation establishes fit. Check the selected backset, faceplate ends, case, locking points, furniture and keeps.

Reversible security latches are a range feature, not a statement that every part of the door assembly is non-handed. Match the centre keep, furniture and any handed components, following the original instructions.

Performance depends on the complete specified door assembly and correct installation. Do not treat a replacement mechanism alone as proof of PAS 24 compliance; use the exact doorset evidence where a rating is required.
