Yale Lockmaster AutoEngage Heritage Multi-Point Lock

£196.24

(£163.53 ex VAT)

sku: YAS1-4503-27
  • Original non-SM YAS1-4503-27 Heritage complete unit
  • Listed 45mm backset and 16mm square-ended faceplate
  • Three security latches with key-retract operation
  • Door closure does not establish that the separate centre deadbolt is locked
  • Furniture and keeps must match the original generation
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

PAS 24:2016
BS EN 1670:2007 - Grade 4
Latch & Deadbolt

The YAS1-4503-27 is the square-ended AutoEngage Heritage complete lock. Its key-retract mechanism is intended for a correctly matched door and furniture arrangement, rather than any pull handle or heritage-style door.

Security-latch engagement on closure is separate from the centre-deadbolt locking step. Follow the original mechanism's instructions and match its complete geometry and keeps. Newer SMYAS1 smart-prepared references do not establish a replacement for this non-SM unit.

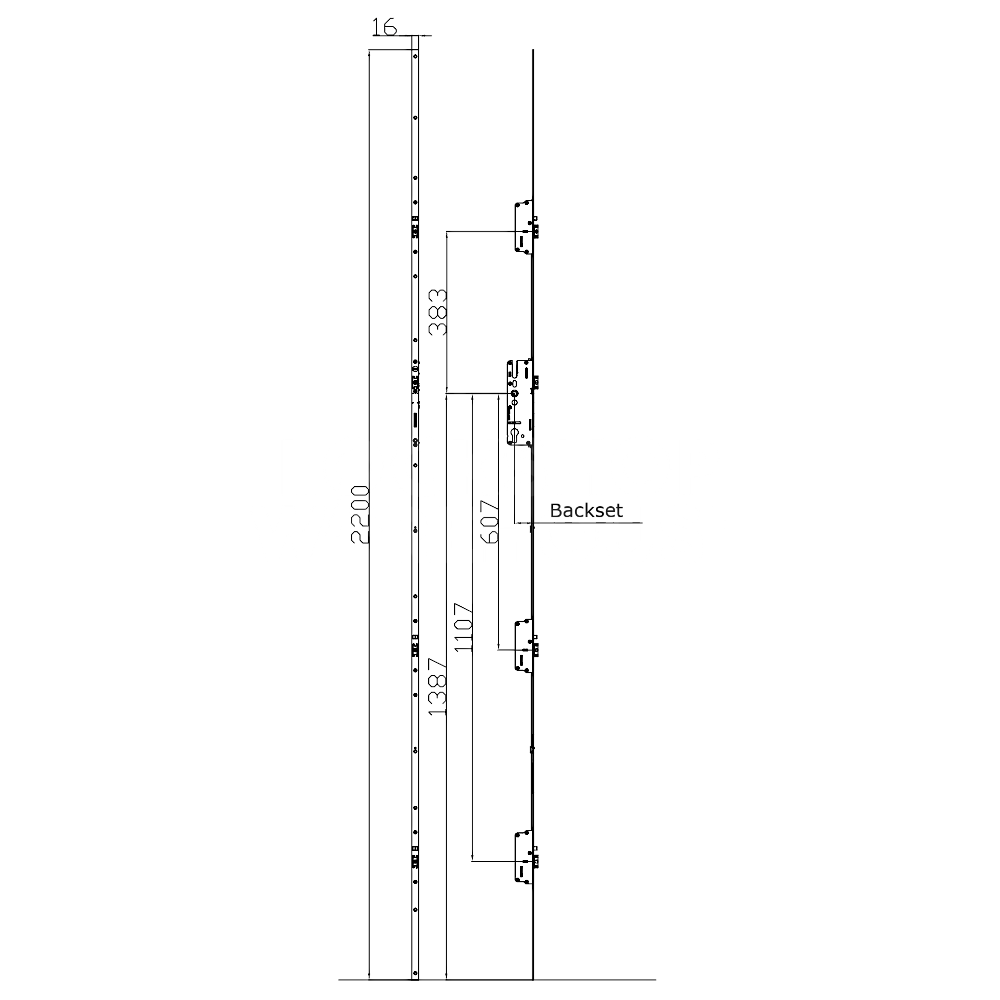

Dimensions Image: Yale Lockmaster AutoEngage Heritage Multi-Point Lock
Part Size (mm)
centres 92
Backset 45
Body Length 2200
Faceplate Width 16

Brand

SKU

YAS1-4503-27

Certifications

tick PAS 24:2016
tick BS EN 1670:2007 - Grade 4

FAQs

The security latches engage on door closure. Use the specified key-locking action for the separate centre deadbolt; do not assume automatic latch engagement completes every locking function.

Heritage styling alone does not establish compatibility. Check the exact case, route, furniture fixings, key-retract operation and keeps; pull handles or knobs need a suitable complete arrangement.

Follow the handing instructions for the original lock and match every handed keep and furniture component. Reversible security latches do not make the whole assembly non-handed.

Use the exact doorset evidence where a security rating is required. Replacing a mechanism does not by itself certify the finished door to PAS 24, and a range-level test claim should not be treated as a rating for every configuration.
