Yale YS170 Latch & Hookbolt Multipoint Lock

£81.98

(£68.32 ex VAT)

sku: YALE-0240
  • Euro profile latch and hookbolt centre case for standard cylinder compatibility
  • Dual reverse action hookbolts provide enhanced anti-lift protection
  • Integrated snib function allows the latch to be held or deadlocked
  • Split spindle operation for versatile handle and access configurations
  • Specifically designed for timber and composite door systems
  • Tested to PAS 24 and BS 6375 for security and weather performance
  • Radius faceplate design for precise installation into door preps

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon
10 Year Guarantee
tick PAS 24:2016

The Yale YS170 is a high-performance multipoint locking system engineered specifically for timber and composite doors. It features a central gearbox with a Euro profile latch and hookbolt, providing a secure primary locking point. To enhance security, the system includes two additional reverse-action hookbolts which act as an effective anti-lift mechanism, preventing the door from being forced vertically out of its frame.

This lock is suitable for both new installations and as a replacement for existing systems. The split spindle functionality offers flexibility in handle operation, making it compatible with various lever configurations. An integrated snib function adds further utility, allowing users to hold the latch back or deadlock it for increased security.

Typical applications include external residential doors where meeting high security and weather sealing standards is essential. The unit is compliant with PAS 24 and BS 6375, ensuring long-term durability and resistance to the elements.

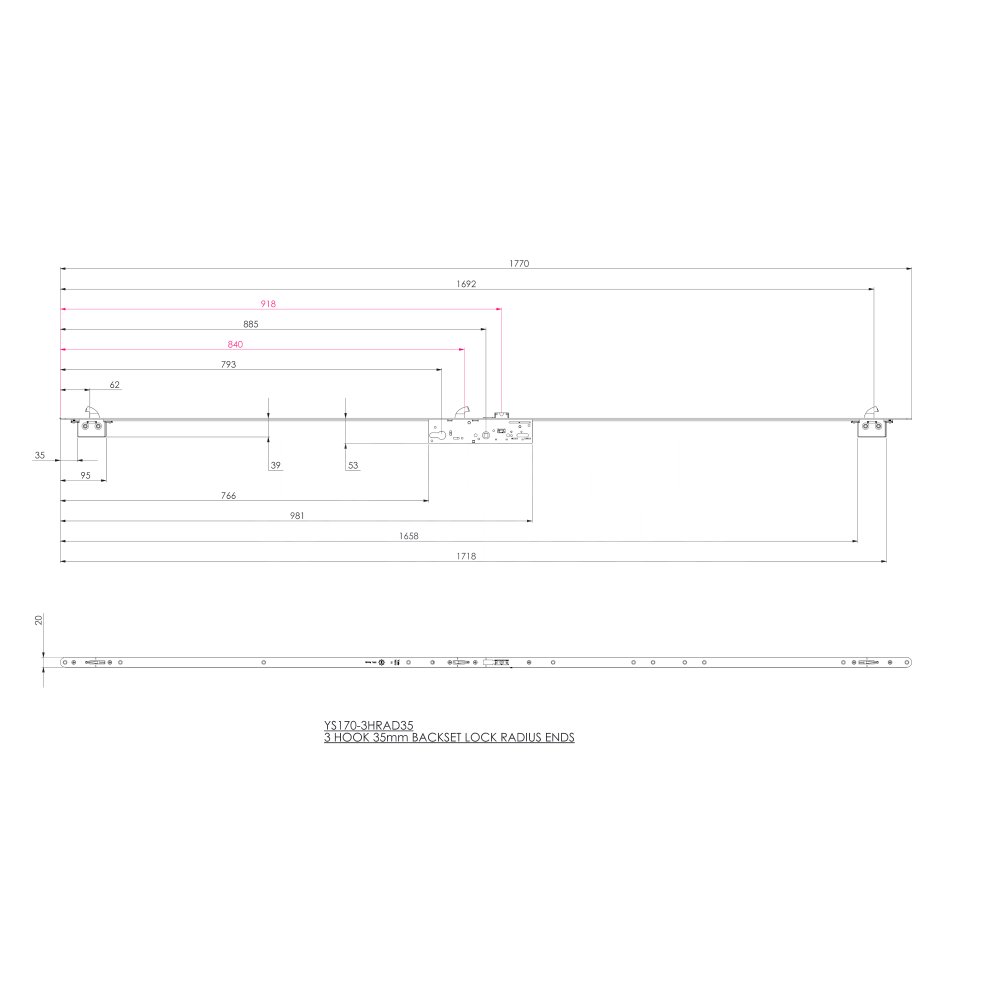

Dimensions Image: Yale YS170 Latch & Hookbolt Multipoint Lock
Part Min (mm) Max (mm)
centres 92 -
Backset 35 45
Body Length 1770 -
Locking Point Hooks 2 -
Faceplate Width 20 -

Brand

SKU

YALE-0240

Certifications

tick PAS 24:2016

FAQs

The Yale YS170 is specifically engineered for use with timber and composite door systems. Its radius faceplate design is crafted for precise installation into these specific door preparations.

These hookbolts provide essential anti-lift protection. By engaging in opposite directions, they effectively prevent the door from being forced vertically or levered out of its frame by intruders.

The split spindle operation allows for versatile handle and access configurations. This means you can set up your door so that the external handle does not operate the latch without a key, providing an extra layer of controlled access.

The Yale YS170 has been rigorously tested to meet high industry standards, including:

  • PAS 24 for enhanced security performance.
  • BS 6375 for weather performance and durability.
