Yale YS170 Lever Operated Latch & Hookbolt Multipoint Lock

£70.10

(£58.42 ex VAT)

sku: YALE-0239
  • Flat-faceplate family: YS170-3HDS35 and the listed 45mm configuration
  • Two outer reverse-action hooks and a centre hookbolt
  • Split-follower operation requires the correct spindle and furniture configuration
  • Latch retention is separate from full-door deadlocking
  • Match the selected backset, full route, locking points and keeps

size

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon
10 Year Guarantee
PAS 24:2016

This YS170 family uses a 20mm flat faceplate, with two outer hooks and a hookbolt at the centre. The 35mm and 45mm backset configurations must be matched separately to the existing door.

Yale's operating instructions distinguish normal lever/lever operation from a correctly configured nightlatch arrangement. The snib's latch-retention function is not a substitute for key deadlocking. Match the original case, follower arrangement, fixings and keeps; a similar YS170 name does not establish an interchangeable complete strip.

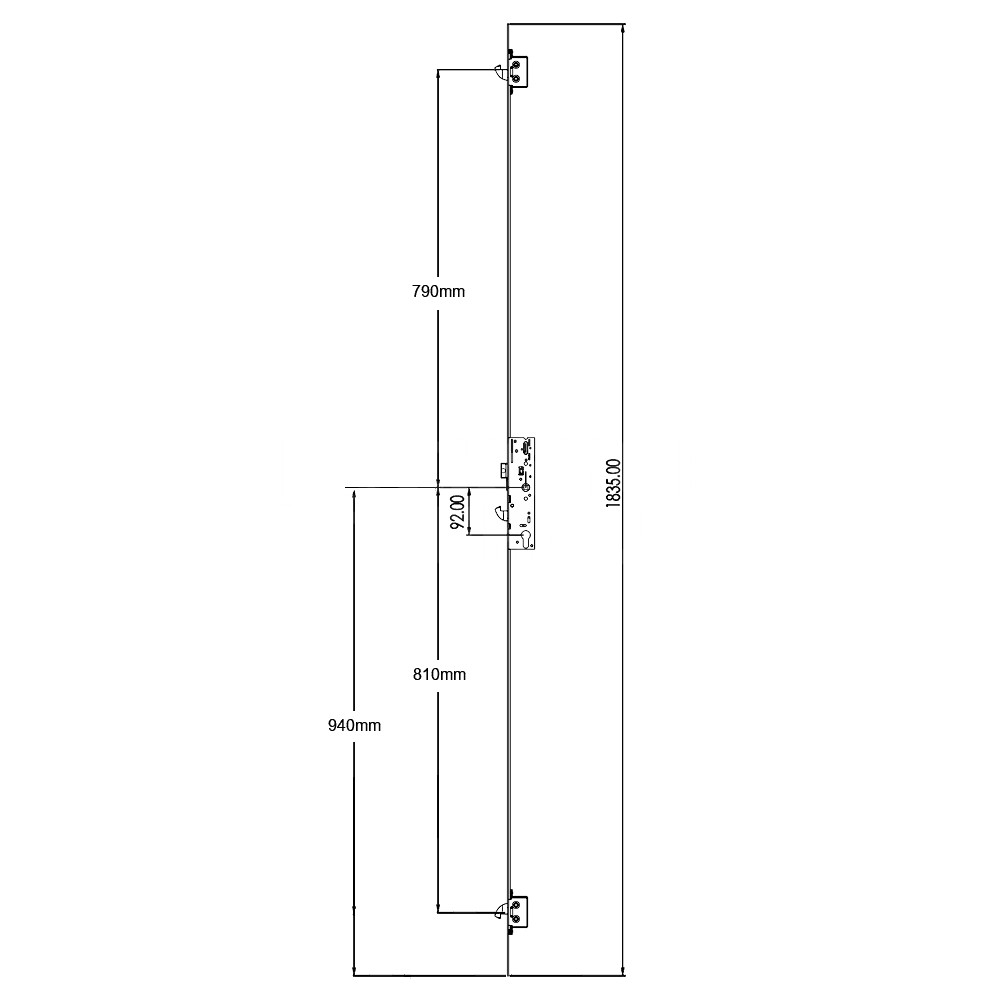

Dimensions Image: Yale YS170 Lever Operated Latch & Hookbolt Multipoint Lock
Part Min (mm) Max (mm)
centres 92 -
Backset 35 45
Body Length 1836 -
Locking Point Hooks 2 -
Faceplate Width 20 -

Brand

SKU

YALE-0239

Certifications

tick PAS 24:2016

FAQs

Use it only where the exact flat-faceplate YS170 mechanism matches the door preparation. Check the selected backset, case, faceplate ends, hook positions, fixings and keeps rather than relying on door material.

The reverse-action outer hooks engage matching keeps. They form part of the door's locking system, but do not guarantee that the complete door cannot be lifted or forced.

A correctly configured split-follower and furniture arrangement can provide nightlatch operation. The outside handle behaviour depends on that configuration; it is not an assurance of keyless escape from a deadlocked door.

Latch retention holds the latch withdrawn for convenience where the appropriate facility is fitted. It does not deadlock the whole door or replace the lock's normal key-locking sequence.
