Yale YS170 Multipoint Door Lock with 2 Hooks and 4 Rollers

£88.34

(£73.62 ex VAT)

sku: YS170-3H4R
  • Multipoint locking system with a Euro profile latch and hookbolt centre case
  • Two reverse-action hookbolts provide enhanced resistance against anti-lift attacks
  • Four adjustable roller cams ensure a tight compression seal for improved weatherproofing
  • Integrated snib feature allows the latch to be held back or deadlocked
  • Split spindle functionality supports both lever-lever and lever-pad operation
  • Specifically engineered for use on UPVC door systems
  • Meets PAS 24 and Secured by Design security standards
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon
10 Year Guarantee
tick PAS 24:2016

The Yale YS170 is a comprehensive multipoint locking system engineered for high-security applications on UPVC doors. This unit combines a central latch and hookbolt with multiple locking points across the length of the faceplate to provide superior protection against forced entry.

This locking mechanism features two reverse-action hookbolts, which are specifically designed to grip the keep and prevent the door from being lifted out of the frame. To complement the security features, four adjustable roller cams are distributed along the strip to pull the door tightly against the frame gaskets, ensuring an effective weatherproof seal and reducing draughts.

Functionally, the YS170 utilises a split spindle arrangement, making it suitable for various handle configurations, including offset lever-pad setups where external access is restricted to key entry. An integrated snib function allows the latch to be held in a retracted position for convenience or deadlocked for additional security. It is frequently specified as a high-performance replacement for existing Yale systems or as a primary lock in new door installations. The system is tested to PAS 24 and BS 6375 standards, ensuring compliance with police-approved security specifications.

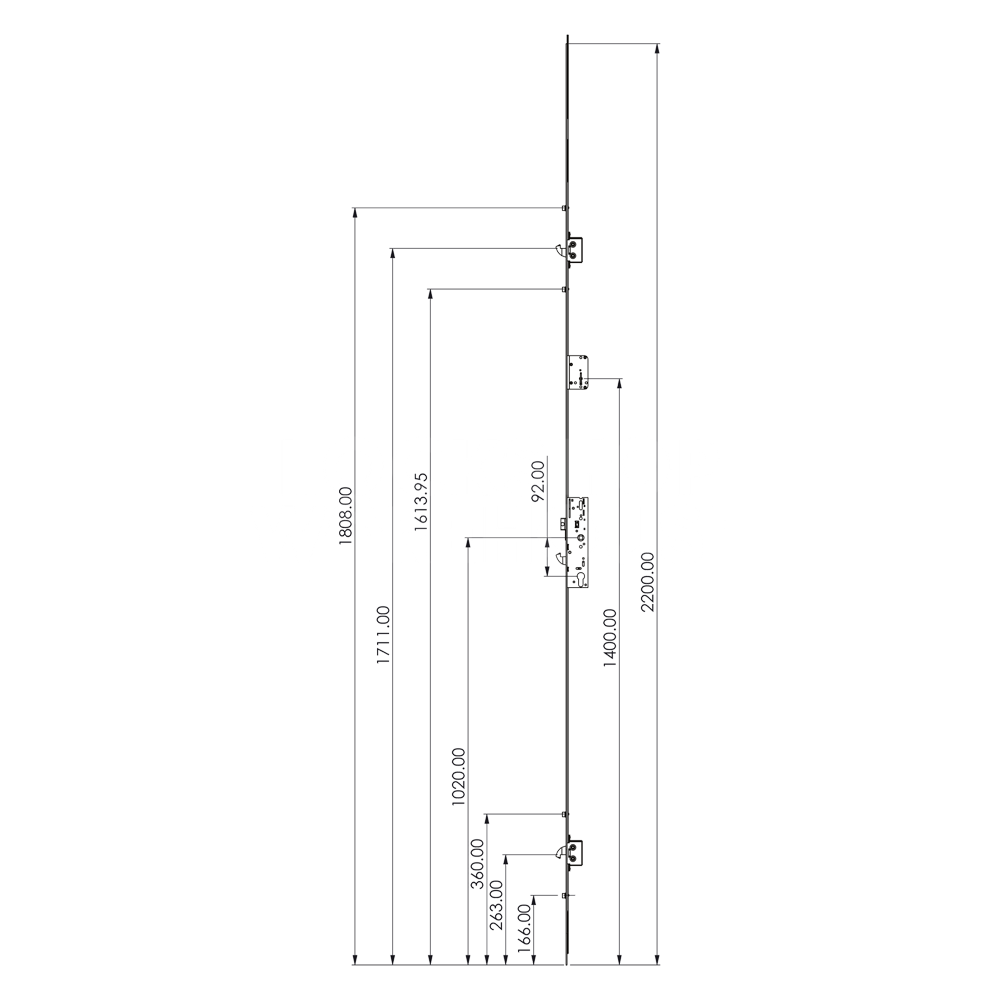

Dimensions Image: Yale YS170 Multipoint Door Lock with 2 Hooks and 4 Rollers
Part Size (mm)
centres 92
Backset 35
Body Length 2200
Locking Point Hooks 2
Locking Point Roller 4
Faceplate Width 16

Brand

SKU

YS170-3H4R

Certifications

tick PAS 24:2016

FAQs

Yes, the Yale YS170 is specifically engineered for use on UPVC door systems. It is frequently specified as a high-performance replacement for existing Yale systems or as a primary lock in new door installations.

The two reverse-action hookbolts are designed to grip the keep securely. This mechanism provides enhanced resistance against anti-lift attacks, preventing the door from being forced or lifted out of its frame.

Yes. The YS170 features split spindle functionality, which supports both standard lever-lever handles and lever-pad configurations. This allows for offset setups where external access can be restricted to key entry only.

The system includes four adjustable roller cams distributed along the faceplate. When the lock is engaged, these rollers pull the door tightly against the frame gaskets, ensuring an effective compression seal that reduces draughts and improves weatherproofing.
