Yale YS170 Multipoint Latch and Hookbolt Lock

£130.87

(£109.06 ex VAT)

sku: YS170-3H45IGILH
  • Retain the exact YS170-3H45IGILH complete-unit reference
  • Listed 45mm backset and radius-ended faceplate configuration
  • Two outer hooks with a centre latch and hookbolt
  • Match the IG Doors-specific preparation and any handed components
  • Latch retention and nightlatch configuration are separate from full-door deadlocking
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon
10 Year Guarantee
PAS 24:2016

This is the specific YS170-3H45IGILH complete unit, not a universal replacement for every IG Doors installation. Match the full suffix and original mechanism as well as the case, faceplate, fixings and hook positions.

The YS170 range has distinct lever/lever and nightlatch operating arrangements. Furniture and follower configuration determine the outside handle behaviour, while latch retention is not full-door deadlocking. Use the original lock and door instructions; a standard radius-ended YS170 is not an established substitute for this IG Doors reference.

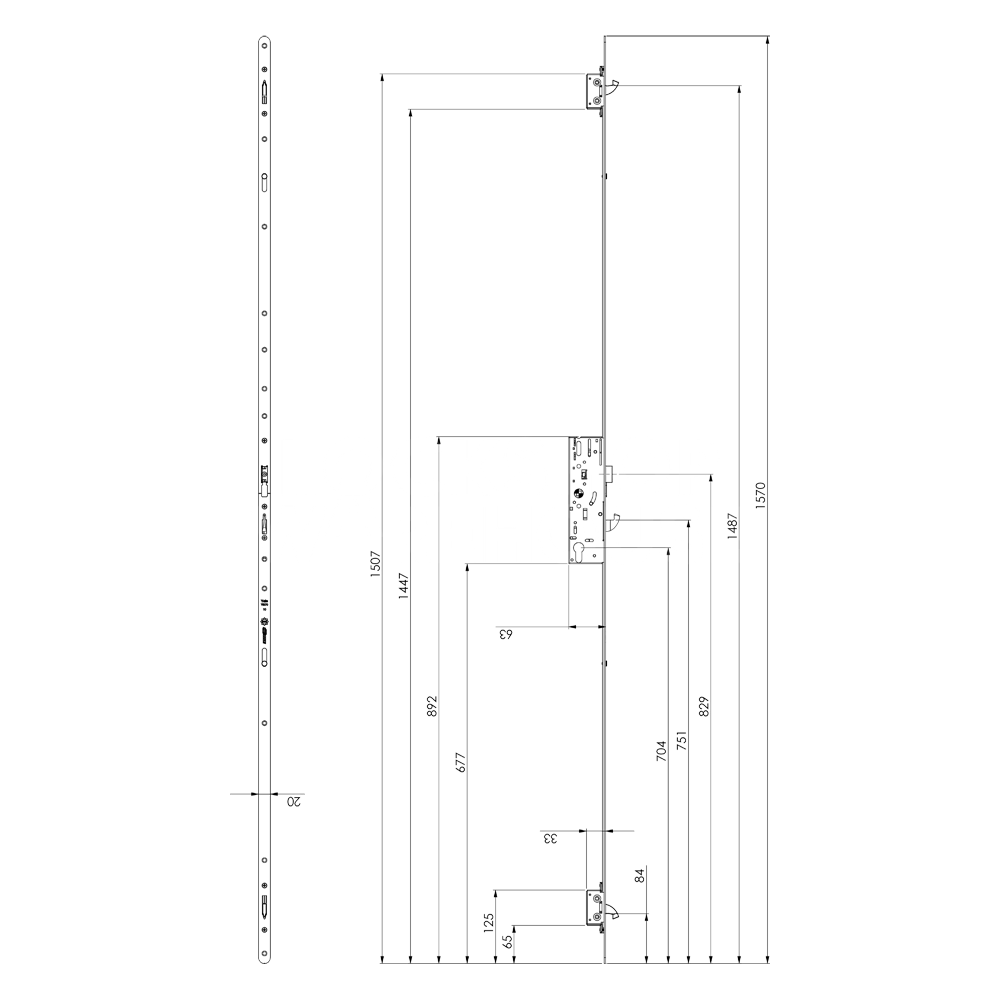

Dimensions Image: Yale YS170 Multipoint Latch and Hookbolt Lock
Part Size (mm)
centres 92
Backset 45
Body Length 1570
Locking Point Hooks 2
Faceplate Width 20

Brand

SKU

YS170-3H45IGILH

Certifications

tick PAS 24:2016

FAQs

Only if the exact YS170-3H45IGILH unit and complete preparation match the original. An IG Doors label or a housebuilder name alone is not enough; compare the full reference, case, faceplate, locking points, fixings and handing.

The outer reverse-action hooks engage matching keeps. They form part of the locking arrangement, not a guarantee that every fitted door cannot be lifted or forced.

Nightlatch behaviour depends on the correctly configured follower, spindle and furniture. A latch-retention snib holds the latch withdrawn where the facility is fitted; it does not replace full-door key deadlocking.

Use evidence for the exact door assembly and specified hardware where a rating is required. A YS170 range claim is not proof that this IG Doors-specific replacement makes the finished door PAS 24 or BS 6375 compliant.
