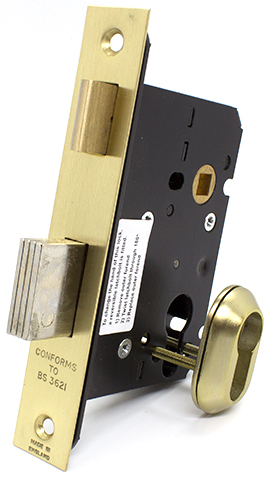

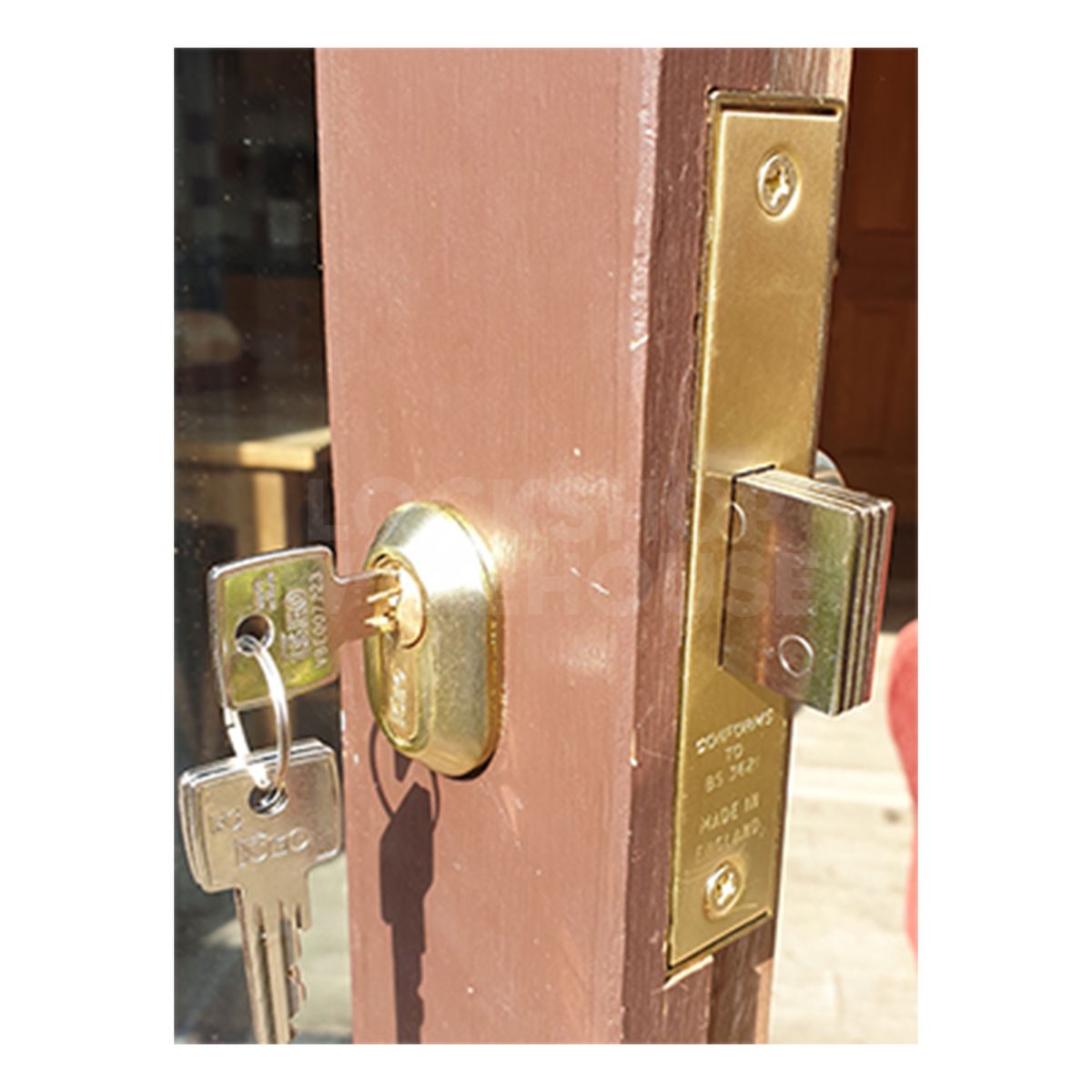

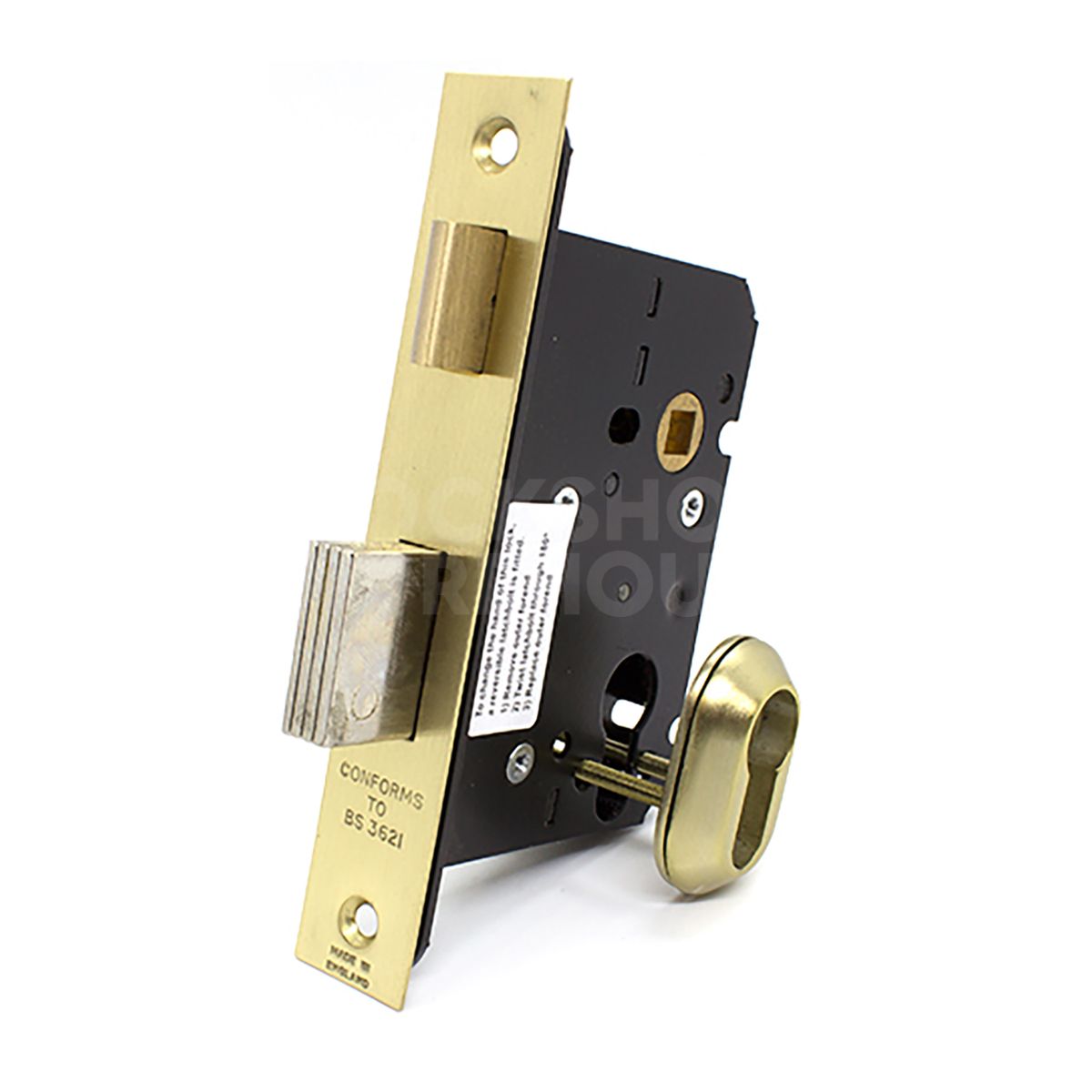

Imperial G7130 BS3621 Euro Profile Cylinder Sashlock with Security Escutcheons

This Imperial Euro Sashlock comes with the mortice lock and the security escutcheons BUT NO Euro cylinder.

To meet the BS3621 insurance rating or the BS8621 fire and insurance rating you need to use a 1 star Kitemarked or 3 Star Kitemarked Cylinder with these parts.

You can purchase these from us - We recommend the Ultion WXM 3 Star Euro cylinders or the ZONE 1 star kitemarked Euro Cylinders.

Product Description

Kitemarked BS3621 British standard euro profile cylinder mortice sashlock for use on external wooden hinged doors providing the maximum level of security. Fire rated to BS EN 1634-1:2000 & Performance rated to BS EN 12209. Latchbolt operated by lever handle from either side. Deadbolt operated by key from either side. Supplied with striker plate and fixing screws. Finishes stainless steel (SS) or satin brass (SB). Other finishes available.

Operation

Latchbolt operated by lever handle from either side. Deadbolt operated by key from either side

Case

Hardened steel. Pierced to accept 20mm and 38mm centre bolt through fixing escutcheons Pierced to accept 38mm centre horizontally opposed bolt through fixing furniture


Latchbolt

Brass, easily reversible. Projection 12mm

Deadbolt

Laminated steel. Throw 20mm

Follower

Brass, to suit 8mm square spindle. One-way action Heavier springing available

Cylinder

Supplied on request. Successfully type-tested for conformity to all of the requirements of BS3621:2007 Thief Resistant Locks when fitted 1 star kitemarked Euro double cylinder ( NOT Supplied) and G9527 security escutcheons ( supplied)

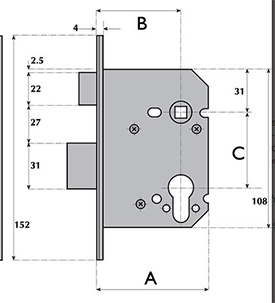

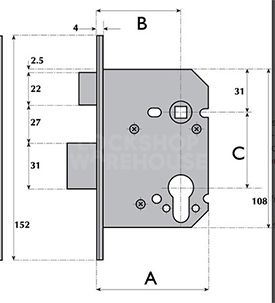

Centres 51mm,

Backset = 45mm ( 64mm Case Depth) or 57mm (76mm Case Depth)
