skip to Imperial G7134 BS3621 Euro-Profile Deadlock with Security Escutcheons

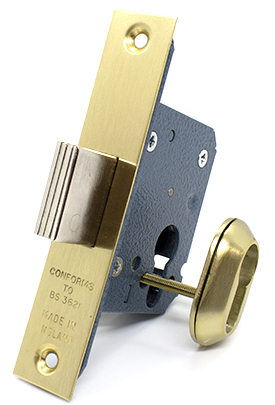

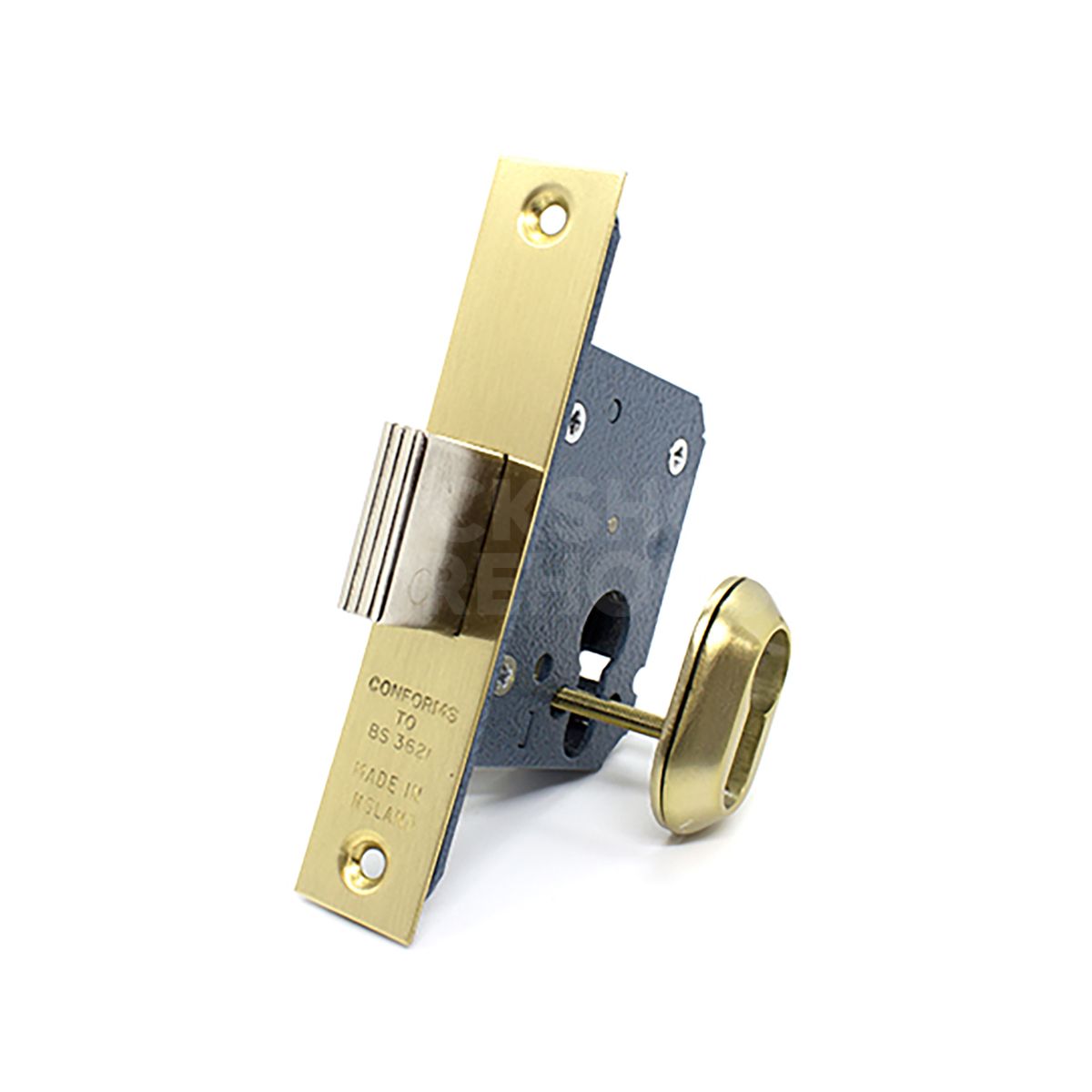

Imperial G7134 BS3621 Euro-Profile Deadlock with Security Escutcheons

£65.99

(£54.99 ex VAT)

sku: G7134
  • Conforms to BS 3621:2007 when fitted with a 1 star Kitemarked euro cylinder
  • Supplied with security escutcheons for enhanced cylinder protection
  • Suitable for use on external wooden hinged doors
  • Fire rated to BS EN 1634-1:2000 and performance rated to BS EN 12209
  • Laminated steel deadbolt features a 20mm throw for increased security
  • Hardened steel lock case pierced for 20mm and 38mm bolt-through fixings
Document Icon product info

Imperial BS3621 Euro Cylinder Range of mortice locks which can be keyed alike together

Imperial G7134 BS3621 Euro-Profile Deadlock with Security Escutcheons £ 65.99
Imperial G7130 BS3621 Euro Profile Cylinder Sashlock with Security Escutcheons £ 71.99

Case Size

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

star Recommended
heavy-duty Heavy Duty
10/10 Security Rating
10 Year Guarantee
british-standard British Standard - BS3621
ce CE Marked
british-standard British Standard - EN 12209
british-standard British Standard - EN 1634-1
fire Fire Rated

The Imperial G7134 is a high-security euro profile cylinder mortice deadlock designed for external timber doors. This deadlock provides a robust security solution, meeting BS 3621:2007 standards when used in conjunction with a 1 star Kitemarked euro cylinder and the provided security escutcheons. It is an ideal choice for both new installations and as a high-specification replacement for existing mortice locks.

The unit features a hardened steel case designed to resist drilling and physical attack. The laminated steel deadbolt offers a 20mm throw, providing deep engagement into the striker plate. Additionally, the lock is CE Marked and fire rated to BS EN 1634-1:2000, ensuring compatibility with fire-resisting door sets.

  • Operated by a euro profile cylinder (sold separately)
  • Includes matching security escutcheons and striker plate
  • Suitable for residential and commercial external doors
  • Compatible with bolt-through furniture fixings

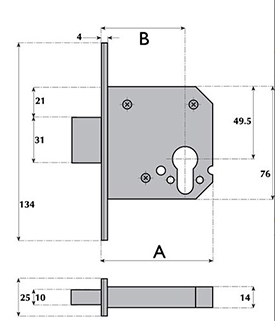

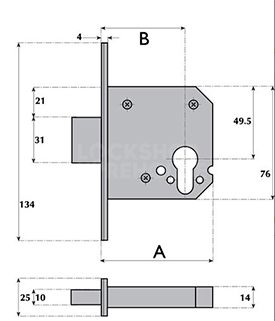

Dimensions Image: Imperial G7134 BS3621 Euro-Profile Deadlock with Security Escutcheons
Part Min (mm) Max (mm)
Bolt Length 20 -
Case Width 14 -
Case Height 76 -
Strike Plate Width 25 -
Strike Plate Length 134 -
Backset 45 57
Case Depth 64 76

Brand

SKU

G7134

Box Contents

Euro Profile Lock Case

fixing screws

security escutcheons

Certifications

british-standard British Standard - BS3621
ce CE Marked
british-standard British Standard - EN 12209
british-standard British Standard - EN 1634-1

Fire Rating

Fire Rated

FAQs

No, the Euro cylinder and keys are not supplied with this deadlock. This gives you the flexibility to choose a cylinder that matches your specific security requirements. For full insurance compliance, we recommend pairing it with a 1-star or 3-star Kitemarked cylinder.

This lock is designed to conform to BS3621:2007 Thief Resistant standards. To achieve this rating for insurance purposes, you must install the lock with a 1-star Kitemarked Euro double cylinder and the security escutcheons provided in the pack.

Yes, the Imperial G7134 is CE Marked and has been successfully type-tested for fire resistance to BS EN 1634-1:2000. It is suitable for use on external wooden hinged fire doors.

You should measure the distance from the edge of your door to the center of the keyhole. This model is available in two sizes to suit different door types: a 45mm backset (64mm total case depth) or a 57mm backset (76mm total case depth).
