skip to Adams Rite 4710 Deadlatch

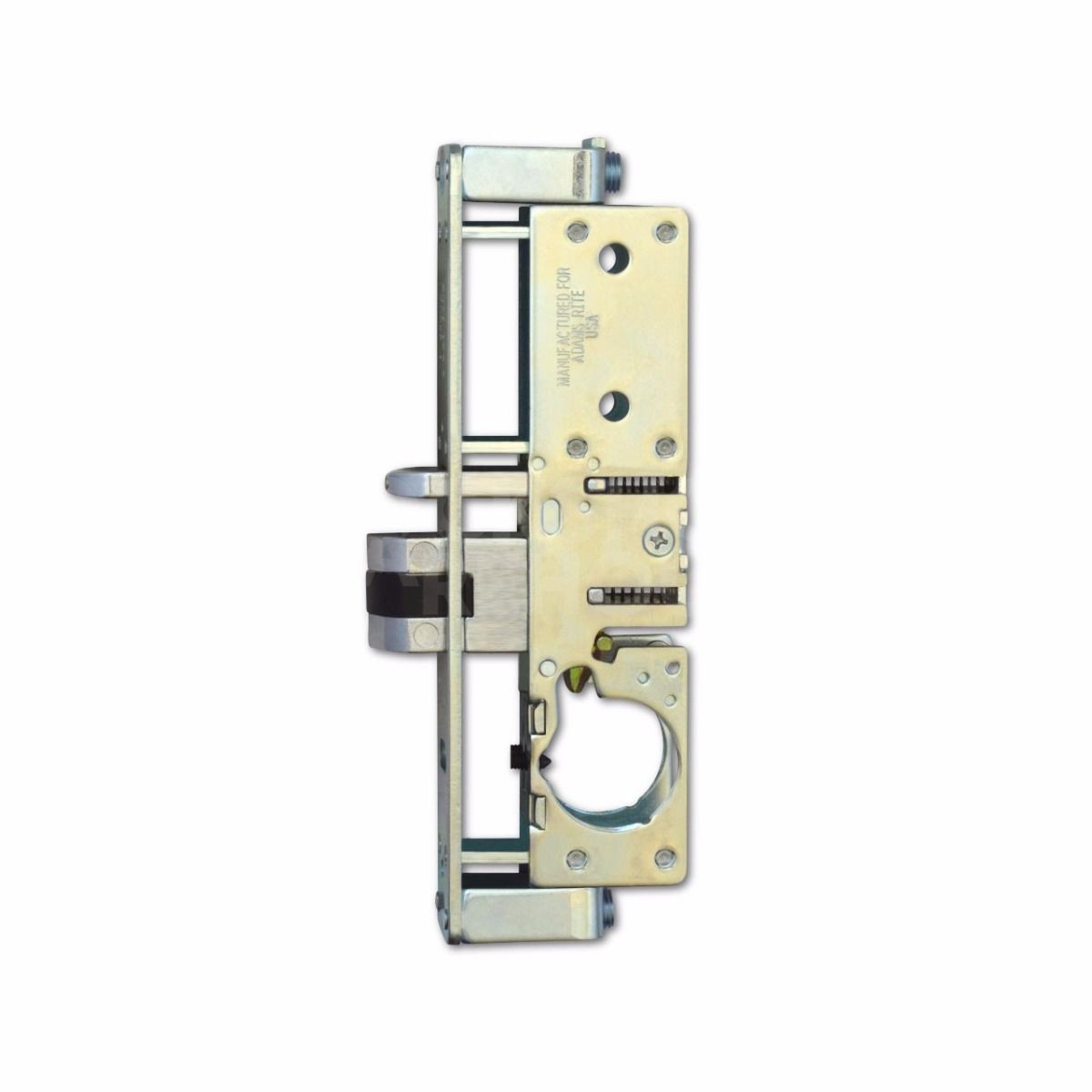

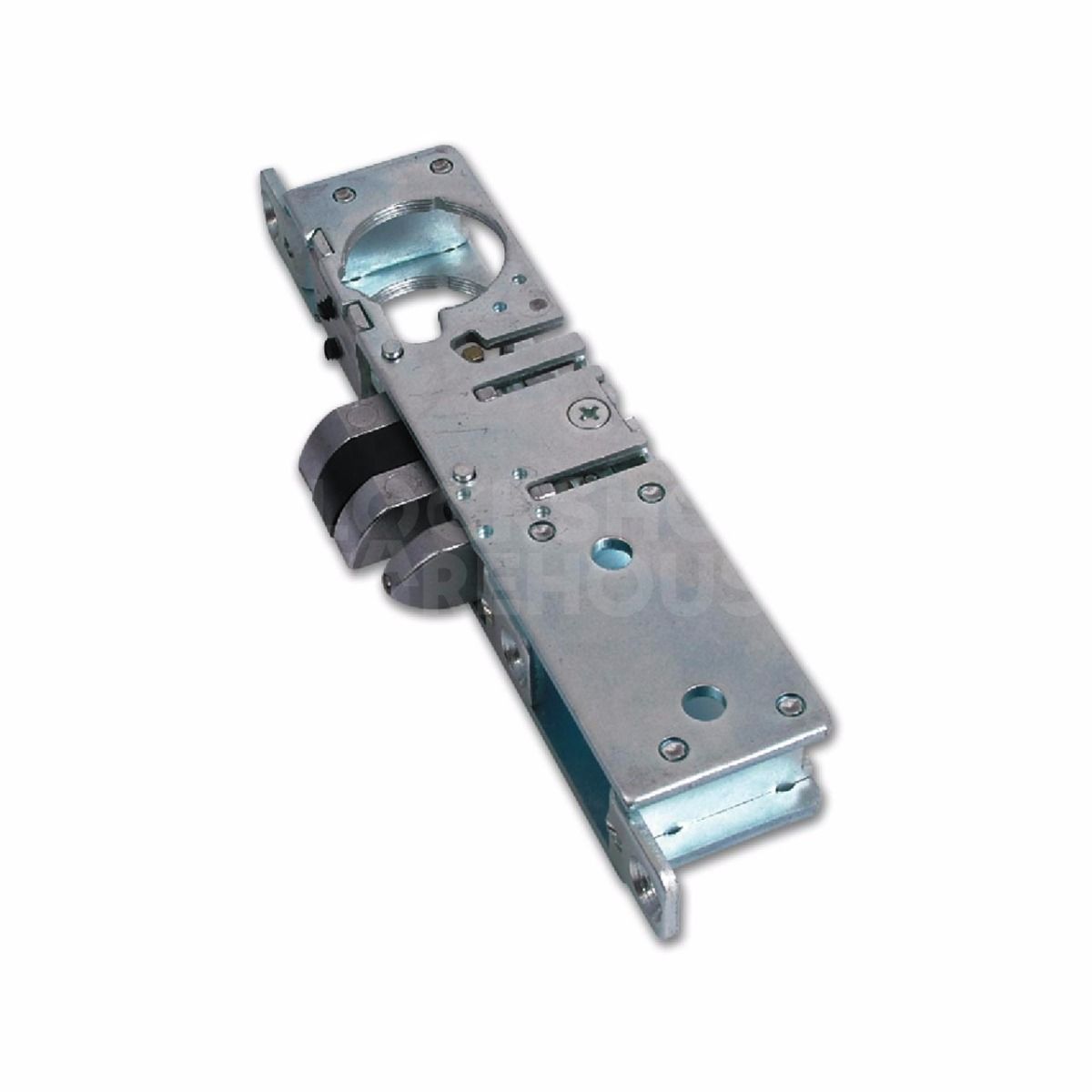

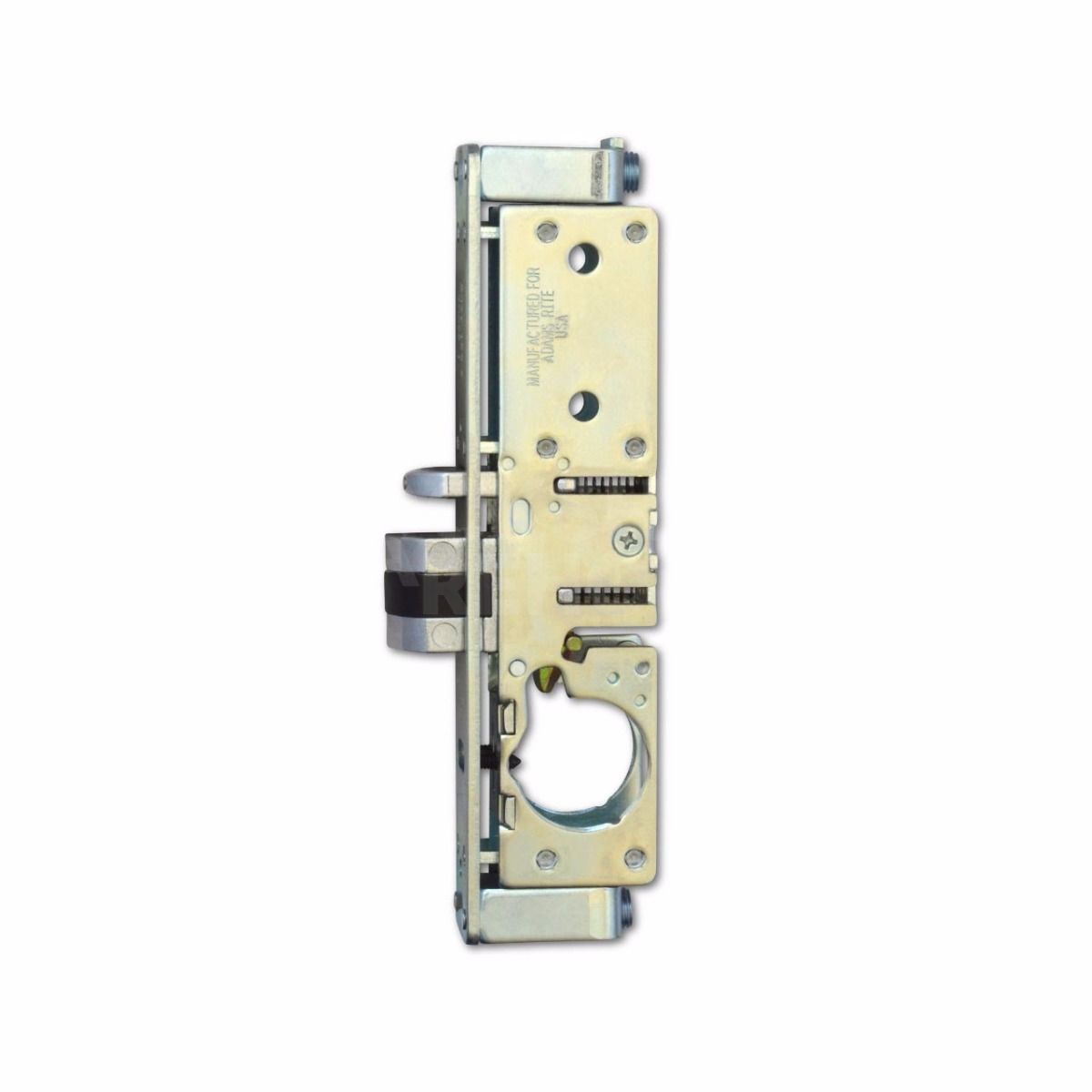

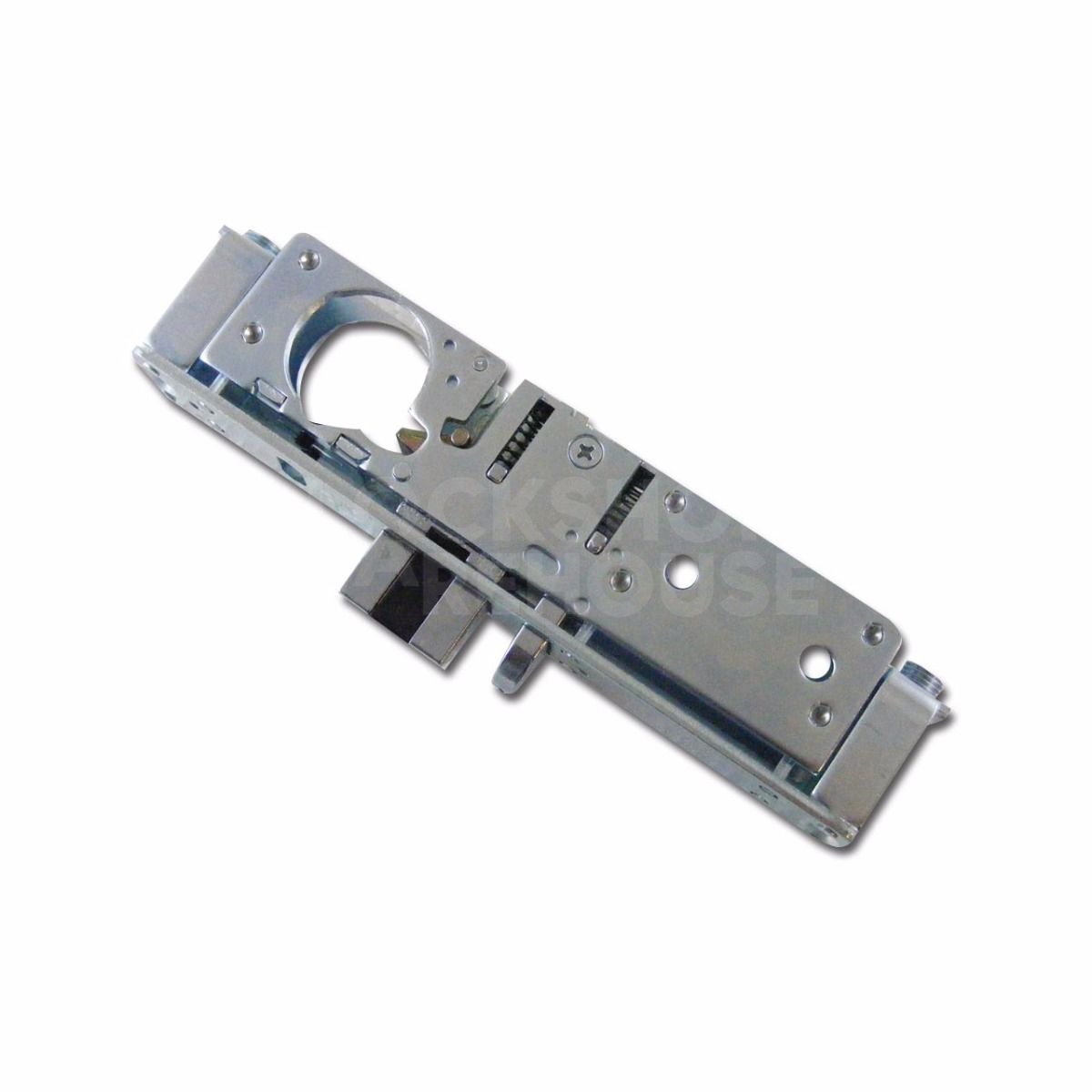

Adams Rite 4710 Deadlatch

£113.99

(£94.99 ex VAT)

sku: 1130
  • Provides automatic deadlocking of the latch bolt when the door is in the closed position
  • Designed for integration into narrow stile aluminium and metal door profiles
  • Compatible with standard threaded screw-in cylinders for secure access control
  • Reversible latch bolt allows for versatile installation on left or right-handed doors
  • Supports a variety of operating hardware including lever handles and exit paddles
  • Manufactured with a plated steel case for reliable performance in commercial applications

Backset

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

heavy-duty Heavy Duty
7/10 Security Rating

The Adams Rite 4710 is a high-performance mortice deadlatch designed primarily for narrow stile metal doors. It functions by providing an automatically deadlocking latch when the door is closed, which helps prevent unauthorised entry through physical manipulation of the bolt. This makes it an ideal solution for commercial or retail environments where security and ease of use are paramount.

This lock case is typically used as a replacement part or as part of a new installation within architectural aluminium systems. It is compatible with standard screw-in cylinders, allowing it to be keyed to existing suites or configured with specific security cylinders. The unit is designed to be operated by a range of internal furniture, such as paddles or lever handles, providing a safe and efficient means of egress.

Please note that this listing is for the lock case only. Compatible faceplates and strike plates are required to complete the installation and must be selected based on the specific door frame and application requirements. The 4710 is a versatile component that supports various backsets and door handing configurations, ensuring compatibility across a wide range of shopfront and entrance systems.

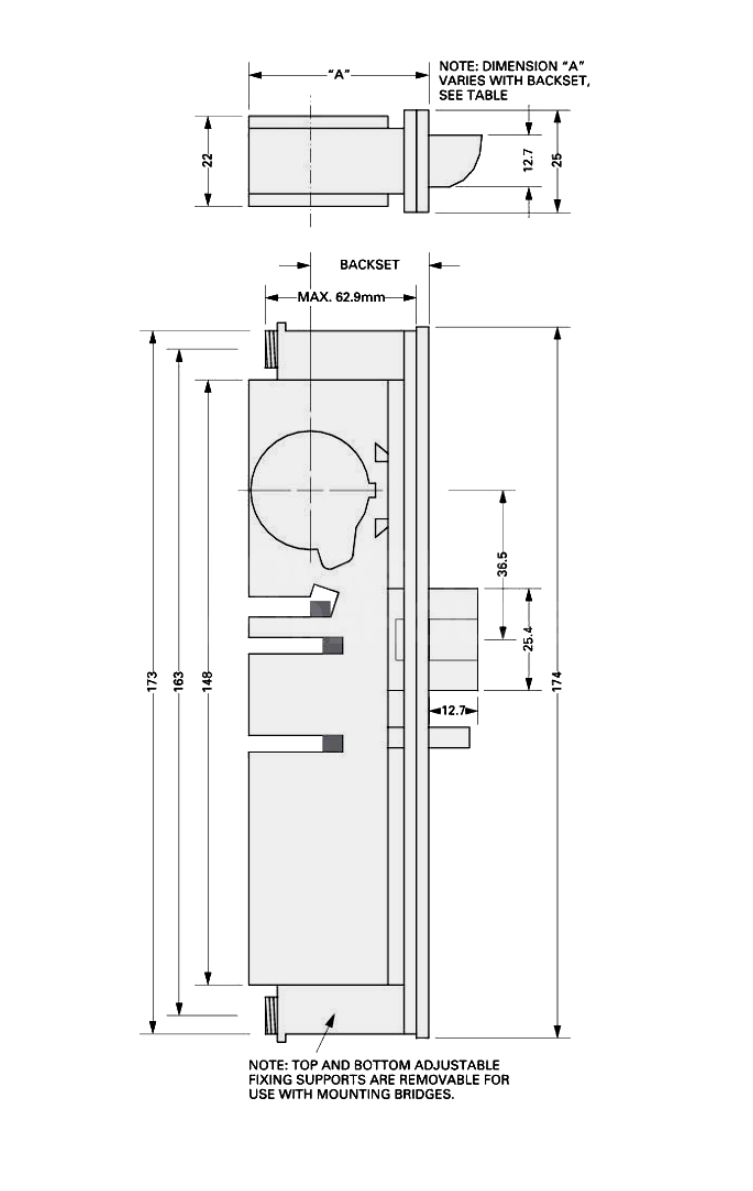

Dimensions Image: Adams Rite 4710 Deadlatch
Part Size (mm)
Backset 22
Body Width 38
Case Height 173
Forend Width 25
Forend Length 174

FAQs

This unit is supplied as a lock case only. Please note that the faceplate and strike plate are not included and must be ordered separately to complete your installation.

The 4710 Mortice Deadlatch is designed for convenience and security; the latch automatically deadlocks as soon as the door is moved into the closed position, preventing the latch from being retracted by external force.

The Adams Rite 4710 can be specified in four different backset sizes to match your door profile:

  • 22mm
  • 24mm
  • 28mm
  • 38mm

This lock case features a mechanism designed for use with a standard screw-in cylinder, which is commonly used in metal door hardware configurations.

Related Products

skip to ADAMS RITE 4591 Paddle Handle

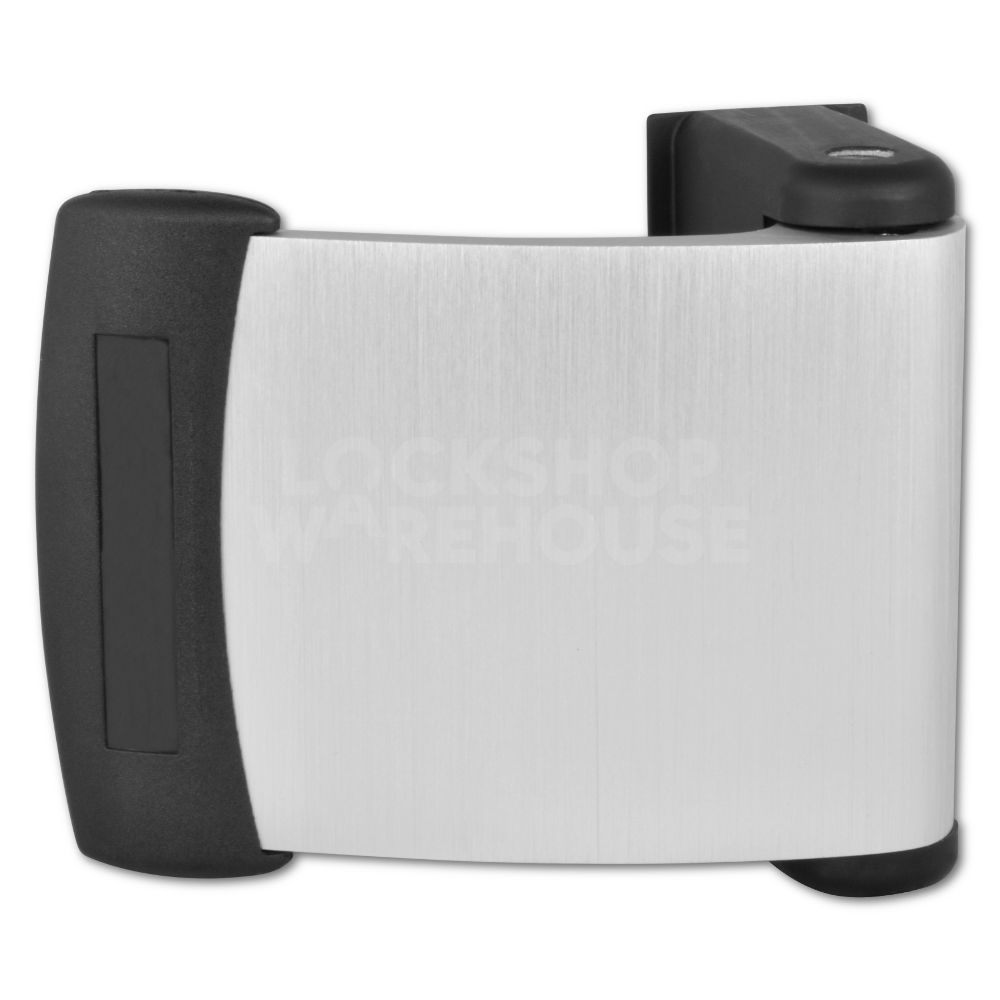

ADAMS RITE 4591 Paddle Handle

£197.99

(£164.99 ex VAT)

sku: L13453-6
  • Provides an intuitive push or pull operation for ease of access
  • Compatible with Adams Rite 4700 series narrow stile deadlatches
  • Ideal alternative to traditional lever handles or turnknobs
  • Designed for use on aluminium or glass commercial doors
  • Supplied with required cam plug for direct installation
  • Supports both inward and outward opening door configurations

Hand / Action

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

star Recommended

The Adams Rite 4591 Paddle Handle is a specialised exit device engineered to provide a simple and ergonomic alternative to standard lever handles. Primarily used in commercial and retail settings, this paddle handle facilitates rapid and effortless door operation, making it an excellent choice for high-traffic environments or where improved accessibility is required.

Designed specifically for integration with narrow stile deadlatches (such as the 4710, 4720, and 4750 series), the handle translates a push or pull motion into the mechanical action needed to retract the latch bolt. It is commonly installed on the interior side of the door to allow for quick egress.

Typical applications include:

  • Retail shopfronts with aluminium-framed glass doors
  • Commercial office entrances requiring easy-to-use hardware
  • Public buildings focused on accessibility compliance
  • Replacement of worn or difficult-to-operate lever sets

The unit is supplied with a cam plug, ensuring a secure and precise connection to the existing latch mechanism. It is suitable for new installations or as a retrofit solution for existing Adams Rite systems.

skip to Adams Rite 4710 Radius Faceplate

Adams Rite 4710 Radius Faceplate

£7.19

(£5.99 ex VAT)

sku: 4402
  • Specifically designed for use with Adams Rite 4710 series deadlatches
  • Radius profile ensures a precise fit on curved aluminium door stiles
  • Includes integrated weather-stripping to reduce draughts and moisture ingress
  • Protects the internal lock mechanism from debris and environmental exposure
  • Provides correctly positioned apertures for the latch and auxiliary bolt
  • Simplifies maintenance and replacement of existing lock furniture
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

The Adams Rite 4710 Radius Faceplate is a dedicated component engineered for use with the 4710 series heavy-duty deadlatches. This faceplate is specifically designed for narrow stile aluminium doors that feature a radius or curved edge, providing a seamless and professional finish to the lock installation.

Functionally, the faceplate serves to secure the lock within the door stile while providing precise cut-outs for the latch and the deadlocking auxiliary bolt. A key feature of this component is the integrated brush or weather-strip along the edge, which is essential for maintaining the door's thermal performance by preventing air infiltration and protecting the internal lock body from dust and moisture.

These faceplates are commonly used in commercial environments where aluminium entrance doors are standard. They are suitable for:

  • New door installations requiring a radius profile finish
  • Replacement of damaged, worn, or corroded faceplates
  • Upgrading existing 4710 deadlatch assemblies to improve sealing

As a genuine Adams Rite accessory, it ensures full compatibility with the 4710 deadlatch range, maintaining the security and operational integrity of the locking system.

skip to Adams Rite 4580 Cam Plug

Adams Rite 4580 Cam Plug

£20.39

(£16.99 ex VAT)

sku: 4650
  • Compatible with Adams Rite 4700 series deadlatches
  • Fully reversible for both left and right-handed door applications
  • Converts standard cylinder rotation into the specific action required for deadlatch operation
  • Provides a secure mechanical interface within the lock housing
  • Facilitates the use of standard mortice cylinders with specialised commercial hardware
  • Essential component for commercial aluminium door maintenance and upgrades
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

The Adams Rite 4580 Cam Plug is a critical interface component designed specifically for use with 4700 series deadlatches. It functions by translating the rotary motion of a standard mortice cylinder into the mechanical action required to retract the latch bolt. This allows for the flexible use of various cylinder types and keying systems within specialised commercial door hardware.

Typically used in aluminium door applications, this cam plug is required when installing a new lock or when replacing an existing cylinder setup. Its reversible design ensures it can be configured on-site to suit both clockwise and anti-clockwise opening requirements, making it a versatile solution for maintenance and retrofitting.

The unit is designed to fit securely into the back of the lock case, ensuring a robust connection between the user's key and the internal locking mechanism. It is commonly utilised by locksmiths and facilities managers to maintain the operational integrity of commercial entrances.
