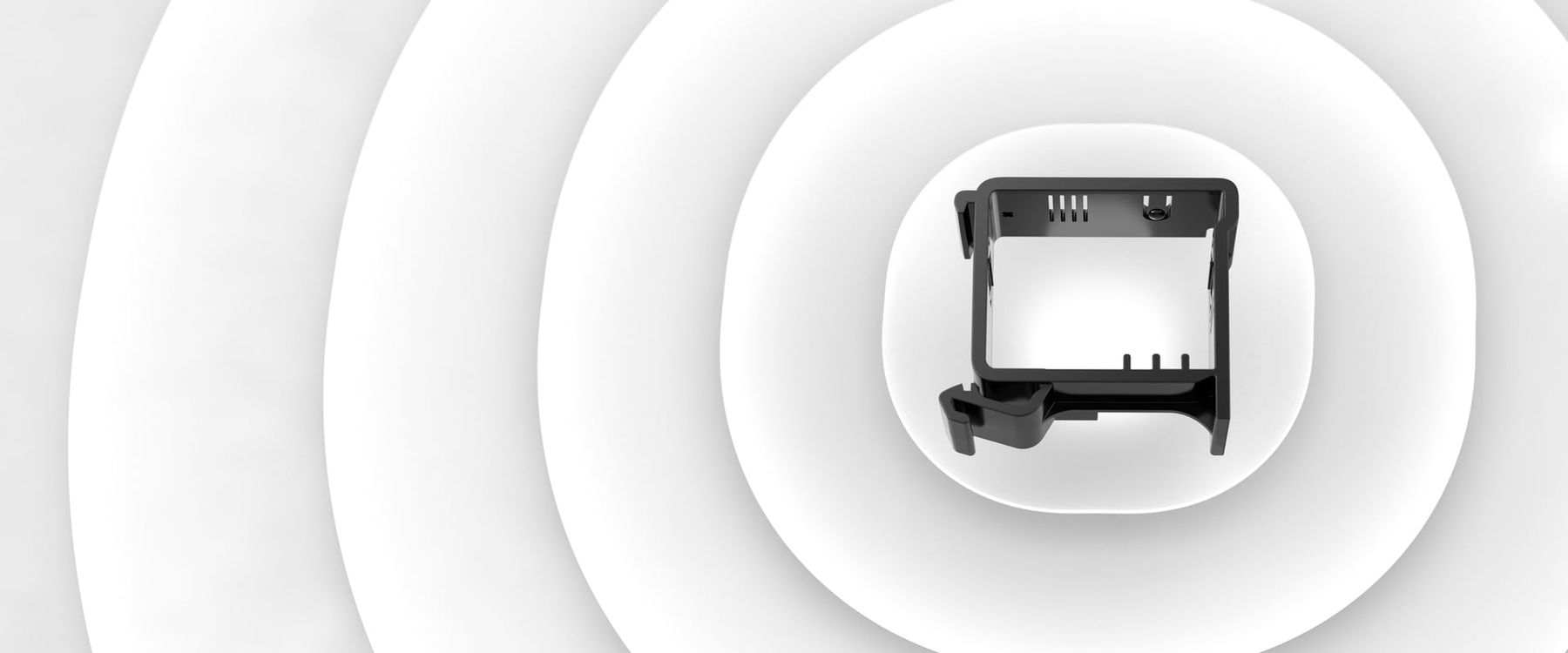

Ajax DIN Holder

Name: Ajax DIN Holder
Brand: Ajax
SKU: AJAX-51170
Price: 8.95 GBP
Availability: InStock

£8.95

(£7.46 ex VAT)

sku: AJAX-51170

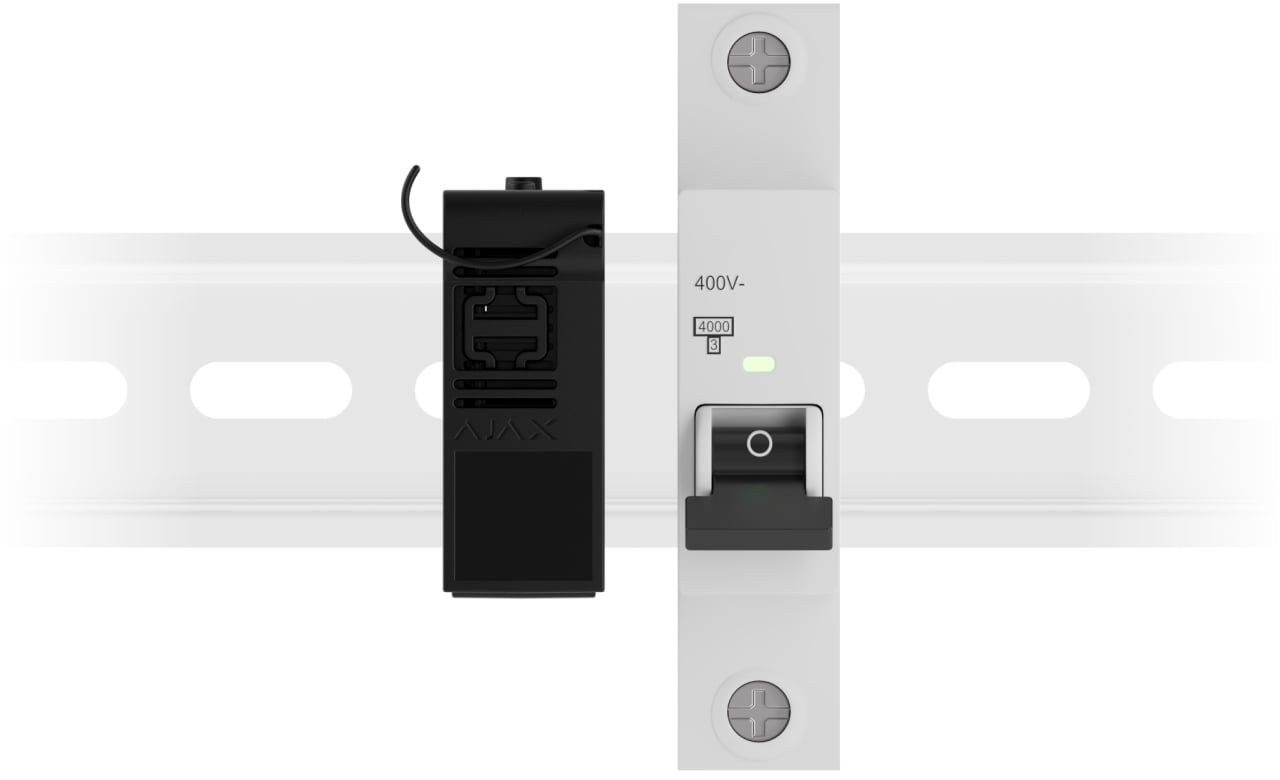

DIN Holder provides a DIN-rail mounting arrangement for the compatible Ajax Relay or WallSwitch. It helps keep a planned electrical installation organised.

Accessory only. Check the exact equipment and installation requirements.

Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

A neater cabinet installation. Mount the correct relay securely.

Part of a properly protected cabinet.

It is a mounting accessory rather than a relay, power supply or electrical protective enclosure. The connected module and the cabinet must still meet their installation requirements.

What you need. Fitting and setup.

Have a competent installer verify the module fit, rail and enclosure. Isolate relevant circuits, route conductors correctly and maintain the required clearances and protection.

Technical specifications

Part	Size (mm)
width	41
Height	52
Depth	18

Related Products

Black

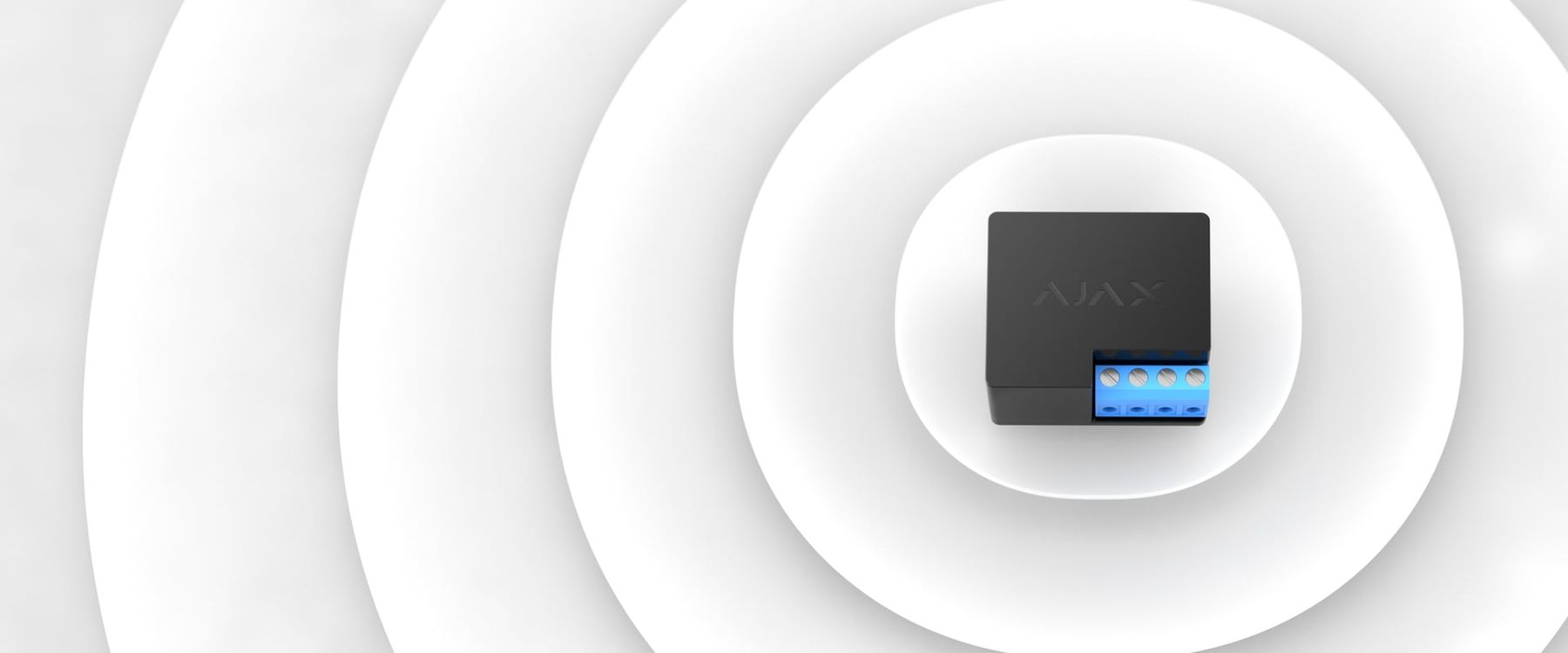

Ajax WallSwitch Jeweller

£51.95

(£43.29 ex VAT)

sku: AJAX-38189

WallSwitch controls a suitable mains-powered appliance through the Ajax app or a configured scenario. Energy monitoring helps make the connected load visible as well as controllable.

A compatible system and correctly planned installation are required; see fitting guidance below.

Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Switch a mains-powered load. Add it to an Ajax scenario.

Match the load to the switch.

Load type matters as much as headline wattage. Motors, transformers and other inductive loads need particular care; this is not the dry-contact Relay model.

What you need. Fitting and setup.

A qualified electrician must install it in an appropriate enclosure with the correct mains protection, conductor sizes and load rating. Isolate the circuit before work. Pair with a compatible Ajax hub and test switching and the intended automation safely.

Explore Hub 2 Plus Fitting and setup guide Technical specifications

Part	Size (mm)
width	33
Height	39
Depth	18

Brand

SKU

AJAX-38189

Power Supply

110-230 V AC +/- 10%, 50/60 Hz

Enclosure Protection

IP20

Black

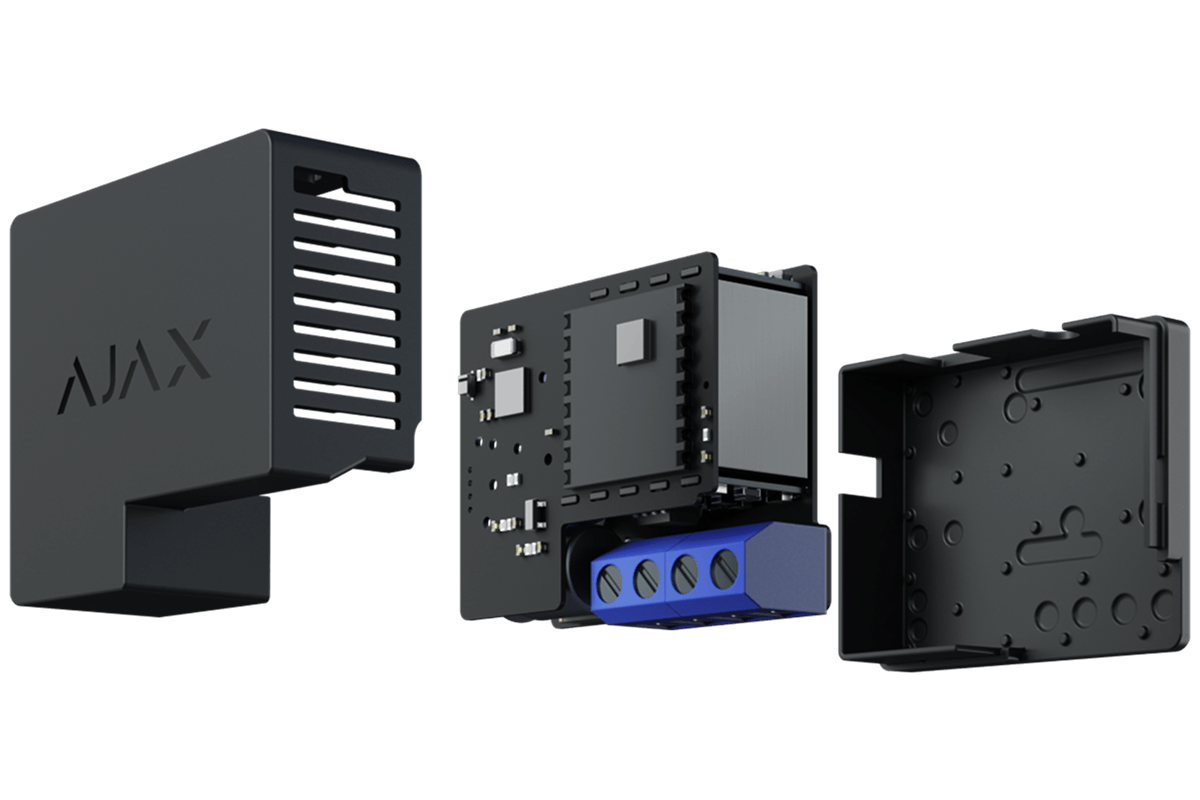

Ajax Relay Jeweller

£51.95

(£43.29 ex VAT)

sku: AJAX-38204

Relay provides a configurable dry-contact output for compatible equipment. It is useful for an appropriately designed gate, lock or automation input where a voltage-free contact is required.

A compatible system and correctly planned installation are required; see fitting guidance below.

Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

A controlled contact. For compatible automation.

Dry contacts, separate power.

Relay needs its own suitable low-voltage supply. It is different from WallSwitch: do not assume it can directly replace a mains switching device or power the attached equipment.

What you need. Fitting and setup.

Have the installer verify the equipment input, switching limits and low-voltage supply. Fit in a suitable enclosure, wire the contact circuit correctly and pair with the Ajax hub. Test the safe state, pulse or bistable mode and any power-failure behaviour.

Explore Hub 2 Plus Fitting and setup guide Technical specifications

Part	Size (mm)
width	33
Height	39
Depth	18
