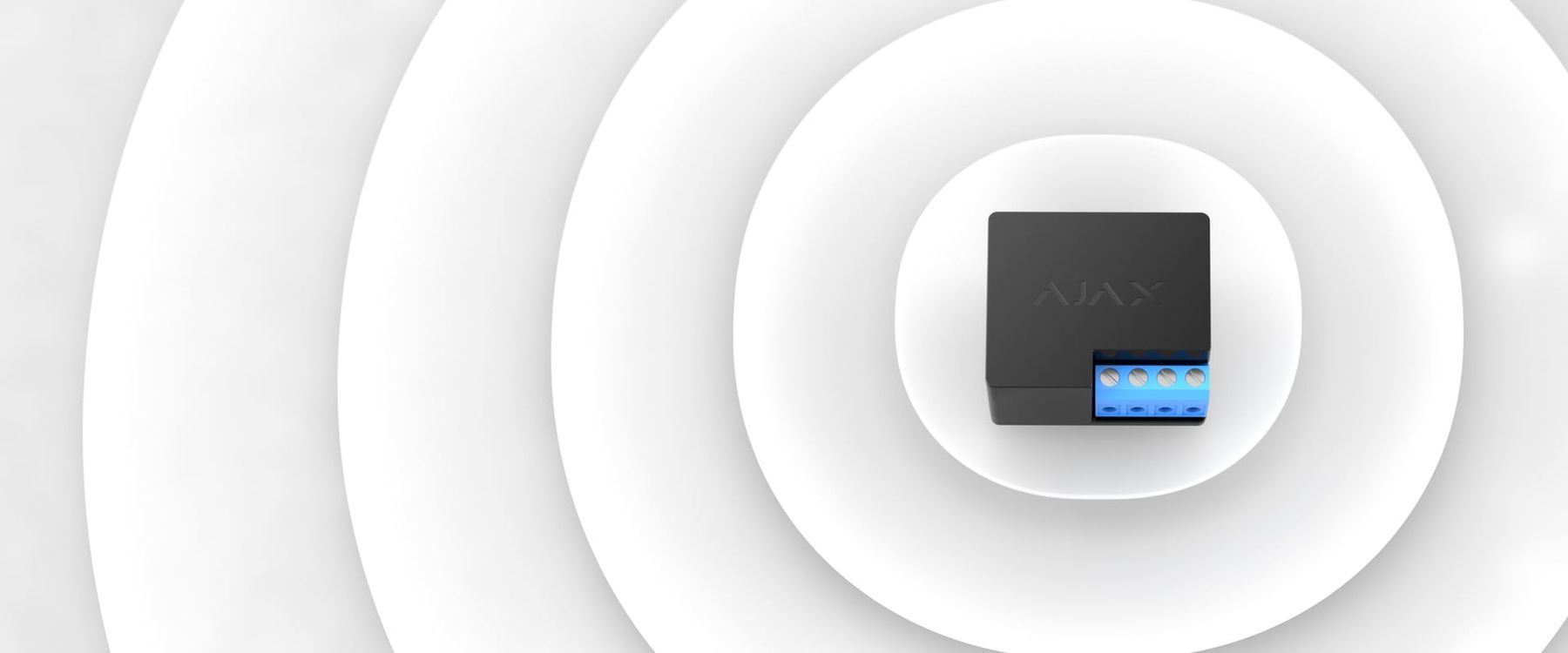

Ajax Relay Jeweller

Name: Ajax Relay Jeweller
Brand: Ajax
SKU: AJAX-38204
Price: 51.95 GBP
Availability: InStock

£51.95

(£43.29 ex VAT)

sku: AJAX-38204

Relay provides a configurable dry-contact output for compatible equipment. It is useful for an appropriately designed gate, lock or automation input where a voltage-free contact is required.

A compatible system and correctly planned installation are required; see fitting guidance below.

Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

A controlled contact. For compatible automation.

Dry contacts, separate power.

Relay needs its own suitable low-voltage supply. It is different from WallSwitch: do not assume it can directly replace a mains switching device or power the attached equipment.

What you need. Fitting and setup.

Have the installer verify the equipment input, switching limits and low-voltage supply. Fit in a suitable enclosure, wire the contact circuit correctly and pair with the Ajax hub. Test the safe state, pulse or bistable mode and any power-failure behaviour.

Explore Hub 2 Plus Fitting and setup guide Technical specifications

Part	Size (mm)
width	33
Height	39
Depth	18

Brand

SKU

AJAX-38204

Power Supply

7-24 V DC external supply required

Enclosure Protection

IP20
