Ajax HomeSiren U Indoor Alarm Siren

Name: Ajax HomeSiren U Indoor Alarm Siren
Brand: Ajax
SKU: AJAX-HOMESIREN-U

£91.50

(£76.25 ex VAT)

sku: AJAX-HOMESIREN-U

A compact indoor siren with adjustable sound and LED indication. Adds alarms, entry/exit reminders and optional door-opening chimes to Ajax.

Requires a compatible Ajax hub and configured alarm devices. This siren does not detect smoke or carbon monoxide.

Colour

Keys Supplied: per lock ( total) total (unless ordering multiple groups)

Additional Keys are available below

Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Make an alarm heard indoors. Without a bulky sounder.

HomeSiren U brings a clear audible warning and LED indication into a room. Its compact enclosure fits discreetly into an interior, with adjustable volume for the installation.

The right warning for the event.

Set the alarm volume from 81 to 105 dB at one metre and configure which events activate the siren. It responds to the Ajax system; it does not contain an intrusion or fire sensor.

No cable across the room.

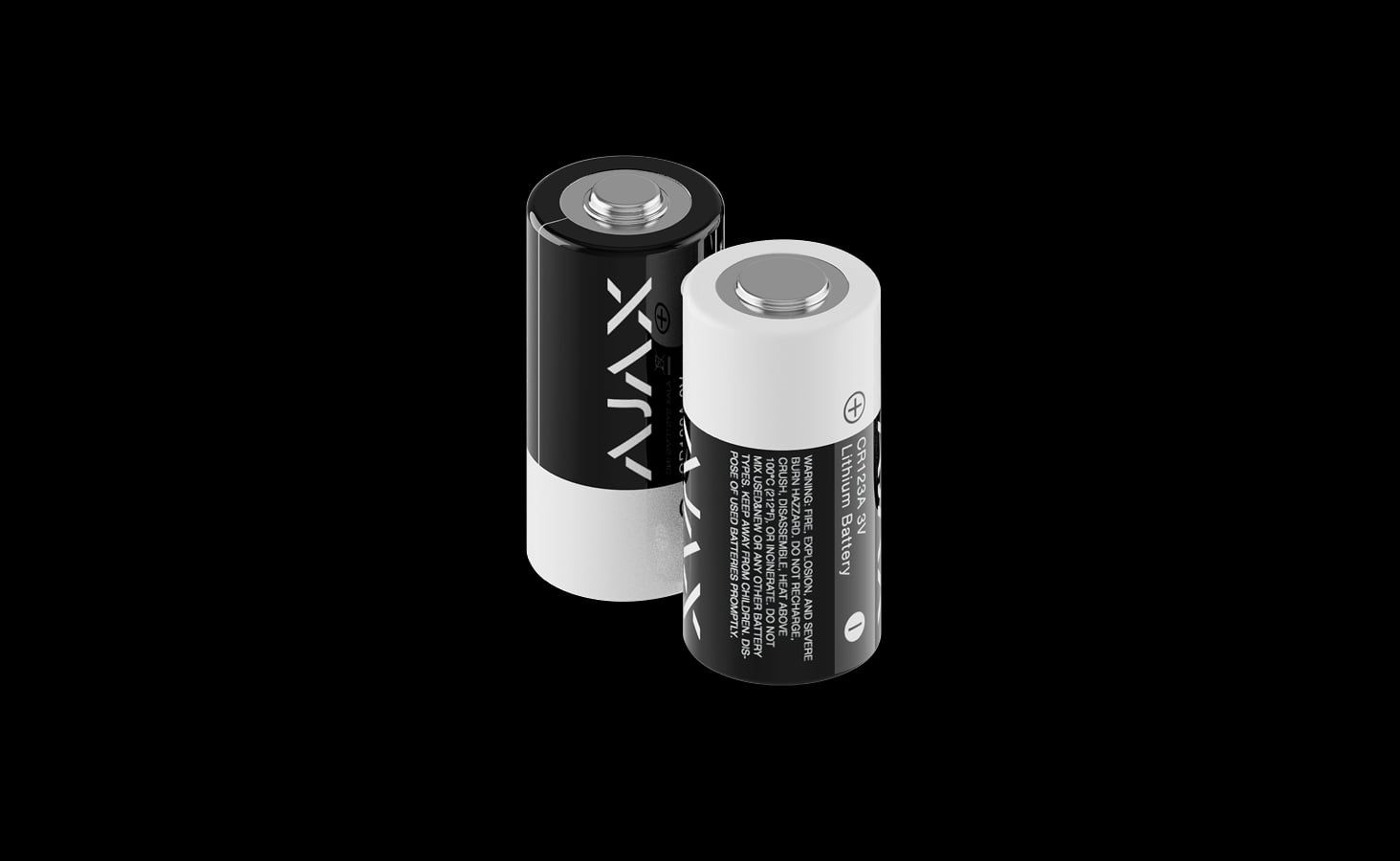

Two included CR123A batteries provide up to five years of operation. Jeweller carries events and commands between the siren and hub, with supervision and low-battery reporting in the app.

A secure place to sound.

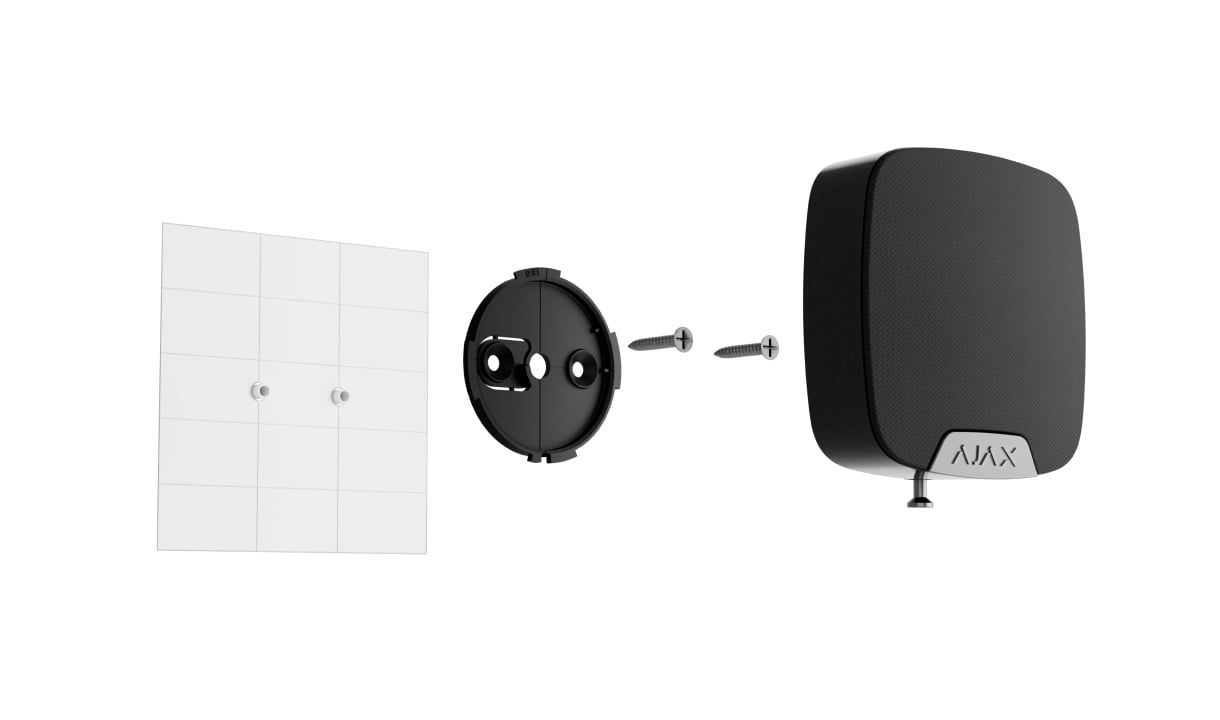

SmartBracket and the holding screw secure the siren to the mounting surface. Ajax recommends a position at least 2.5 metres high, with good radio reception and a location that is difficult to interfere with.

What you need. Fitting and setup.

You need a compatible Ajax hub and the detectors or events that will activate the siren. Fit it indoors on a secure surface, check Jeweller reception and configure the alarm volume and indications. No mains, CAT6 or cable back to the hub is required; the batteries are supplied. Only an optional external LED needs a local wire. Test audibility as part of the complete system without prolonged close exposure to the sounder. Use an outdoor-rated siren for an exposed exterior position.

Explore Hub 2 Plus Fitting and setup guide Technical specifications

Part	Size (mm)
width	76
Height	75
Depth	27

Brand

SKU

AJAX-HOMESIREN-U

Network Connection

Jeweller radio

Power Supply

2 x CR123A batteries, pre-installed

Enclosure Protection

IP50

Radio Range

Up to 2,000 m in open space

Battery Life

Up to 5 years

Alarm Volume

81-105 dB at 1 m, adjustable

Hub Requirements

Compatible Ajax hub required

Operating Temperature

-10 to +40 C

FAQs

No. It is intended for indoor installation. StreetSiren is the outdoor option in this pilot.

No. It sounds in response to configured Ajax system events. Appropriate detectors are required separately.

Yes. The U model offers 81-105 dB at one metre. These figures differ from the older non-U HomeSiren.

Yes, with a compatible opening detector, hub and configured Chime feature.

No. Two pre-installed CR123A batteries provide power. The optional LED connection is not a siren power input.

Configured entry and exit beeps help make alarm delays understandable during everyday use.

With a compatible opening detector and Chime enabled, the siren can announce a door opening while the system is disarmed.

LED indications show configured system states. An optional wired 3 V LED can repeat the built-in indication at another suitable point.
