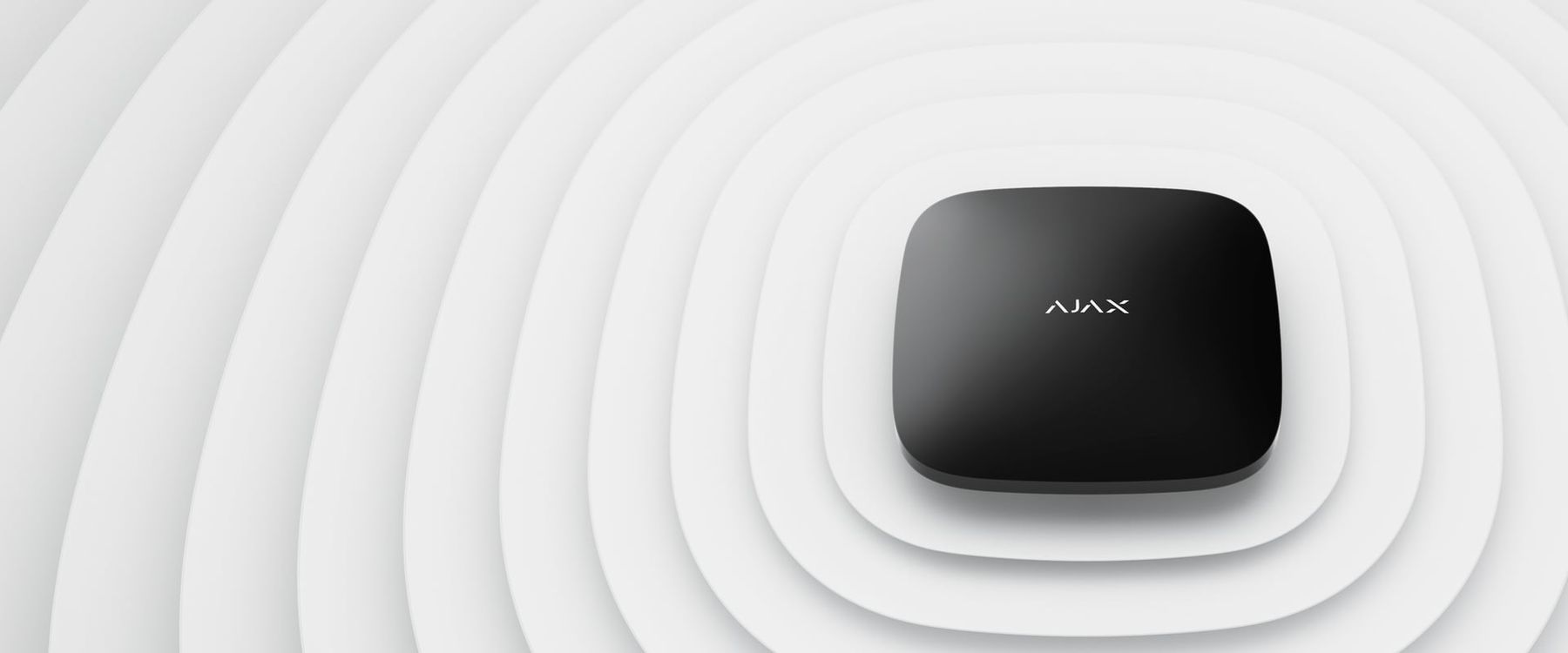

Ajax Hub 2 Plus Alarm Hub

Name: Ajax Hub 2 Plus Alarm Hub
Brand: Ajax
SKU: AJAX-HUB2-PLUS

£344.50

(£287.08 ex VAT)

sku: AJAX-HUB2-PLUS

An Ajax alarm hub with Ethernet, Wi-Fi and two mobile SIM slots. Brings compatible detectors, sirens and automation together in the Ajax app.

Detectors, sirens and optional mobile service are required separately. The hub is not a video recorder or a camera power supply.

Colour

Keys Supplied: per lock ( total) total (unless ordering multiple groups)

Additional Keys are available below

Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

At the centre of your protection. Ready everyday.

Arm the alarm, see which detector has triggered and manage access from the Ajax app. Hub 2 Plus connects the alarm devices around your property, with space to add compatible fire detectors and automation as your needs grow.

Several ways to get the message through.

Ethernet, Wi-Fi and two mobile SIM slots give Hub 2 Plus alternative routes to Ajax Cloud. Configure more than one route so the system can keep you informed when a connection is interrupted.

Mobile backup needs compatible SIMs, coverage and an active service. Switching between SIMs can take up to four minutes.

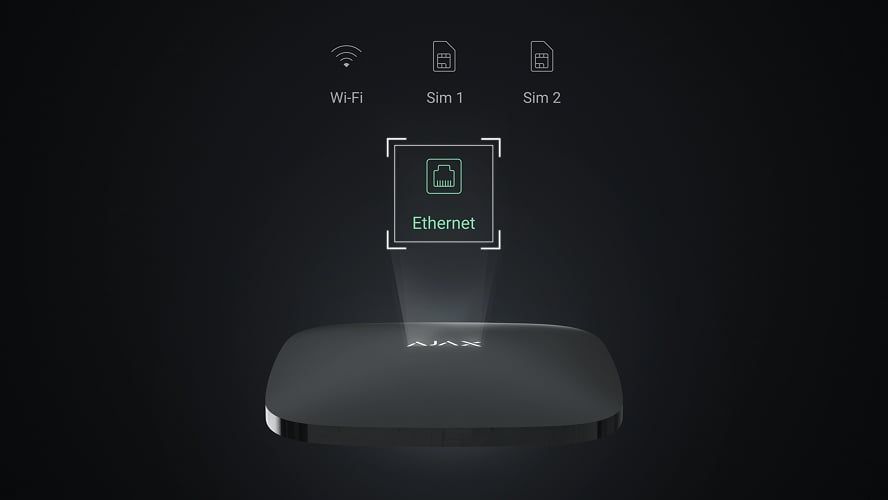

Always in touch — via cables, Wi-Fi, LTE

See the reason for an alarm.

A compatible MotionCam detector sends a sequence of photographs with an alarm, helping you understand what happened before deciding how to respond. MotionCam U (PhOD) also supports photo requests and scenarios with the appropriate permissions.

Alarm verification with photo in 9 seconds

Separate areas. One manageable system.

Arm an outbuilding while keeping the living areas accessible. Up to 25 security groups, 200 devices and 200 users give the system room to grow. Up to 64 scenarios connect events to compatible lights, relays and other automation.

Protection of large premises with complex internal organization

More room to grow. Compare the hub choices.

Hub 2 Plus is our main choice for a home: Ethernet, Wi-Fi and mobile backup in one hub. Hub 2 (4G) is a smaller-capacity alternative without Wi-Fi. Hub BP is the specialist battery-powered option for sites without a suitable mains supply. These are alternatives, not three hubs needed together.

Scroll across if needed to compare prices and specifications.

Product prices and specifications. Configurable products show family options and starting prices.
	Ajax Hub 2 Plus Alarm Hub View product	Ajax Hub 2 (4G) Jeweller View product	Ajax Hub BP Jeweller View product
Price Including VAT	From £344.50	From £287.95	From £279.95
Network connection	Ethernet, 2.4 GHz Wi-Fi and two micro-SIM slots (2G/3G/4G)	Ethernet and two SIM slots (2G/3G/4G); no Wi-Fi	Two SIM slots (2G/3G/4G)
System capacity	Up to 200 devices, 200 users, 25 groups, 50 rooms and 64 scenarios	Up to 100 devices, 50 users, 9 groups and 32 scenarios	Not specified
Power supply	110-240 V AC, 50/60 Hz; built-in 3 Ah backup battery	Mains power with built-in backup battery	Supported internal or external battery, purchased separately
Battery life	Backup up to 15 hours with Ethernet disconnected and SIM communication only	Not specified	Not specified
Size (W x H x D)	163 x 163 x 36 (mm)	163 x 163 x 36 (mm)	238 x 196 x 100 (mm)

Alarms and photographs. Two dedicated radio links.

Jeweller carries detector alarms, events and supervision. Wings transfers photographs from compatible MotionCam detectors, adding visual context when you need to assess an alert.

Complete your protection. Compatible devices, one system.

Protect an opening with DoorProtect U, add indoor motion or MotionCam photo verification, and put a keypad and siren where they are most useful. These devices work with Hub 2 Plus to form one connected alarm.

Ajax MotionProtect U Jeweller

MotionProtect U is our straightforward indoor motion detector for an Ajax alarm. Its PIR sensor detects movement while the compact enclosure sits quietly in the room.

Ajax DoorProtect U Door and Window Contact

A compact wireless opening detector for doors and windows. Flexible magnet positioning, an additional wired-sensor input and optional chime alerts.

Ajax KeyPad Plus Wireless Alarm Keypad

Control your Ajax alarm with a code, Pass card or Tag key fob. A touch-sensitive keypad with contactless access and individual permissions.

Ajax HomeSiren U Indoor Alarm Siren

A compact indoor siren with adjustable sound and LED indication. Adds alarms, entry/exit reminders and optional door-opening chimes to Ajax.

Ajax MotionCam U (PhOD) Motion Detector

Indoor motion detection with HDR photo verification. Understand an alarm with a sequence of pictures, with controlled photo-on-demand access.

What you need. Fitting and setup.

Provide a suitable mains socket and connect the hub through Ethernet, Wi-Fi or configured mobile service. Add and test each detector, keypad and siren in the Ajax app. Jeweller devices communicate wirelessly, so they do not need detector cabling back to the hub.

Plan coverage, mounting, entry delays and radio reception before final fixing. Fit and configure any SIMs for mobile backup, then test the complete alarm response.

Detectors, sirens, installation and optional mobile or monitoring services are separate. The hub coordinates alarm devices; continuous video recording uses separate camera storage.

Fitting and setup guide Technical specifications

Part	Size (mm)
width	163
Height	163
Depth	36

Brand

SKU

AJAX-HUB2-PLUS

Network Connection

Ethernet, 2.4 GHz Wi-Fi and two micro-SIM slots (2G/3G/4G)

Power Supply

110-240 V AC, 50/60 Hz; built-in 3 Ah backup battery

Enclosure Protection

IP20

Radio Range

Jeweller up to 2,000 m; Wings up to 1,700 m (open space, device-dependent)

Battery Life

Backup up to 15 hours with Ethernet disconnected and SIM communication only

System Capacity

Up to 200 devices, 200 users, 25 groups, 50 rooms and 64 scenarios

Hub Requirements

Central alarm hub; compatible Ajax devices required

Operating Temperature

-10 to +40 C

FAQs

No. The hub manages the alarm system and compatible automation. Cameras need their own recording provision, such as an Ajax NVR with a suitable drive or a supported cloud plan.

Compatible Jeweller alarm devices communicate wirelessly with the hub. The hub itself needs mains power and configured internet connectivity.

Ethernet or Wi-Fi can provide the normal cloud connection. Active SIMs add alternative mobile routes where there is suitable network coverage.

The built-in battery provides temporary backup. Ajax specifies up to 15 hours with Ethernet disconnected and communication via SIM only; actual runtime depends on conditions. A router may need its own backup.

Hub 2 Plus supports alarm reporting to compatible monitoring stations. Monitoring is a separately arranged service, not included with the hub.

OS Malevich updates bring supported improvements to the hub. Configuration lives in the Ajax apps, so routine changes do not require opening the enclosure.

Tamper detection, device authentication and connection supervision report problems as well as alarms. The built-in battery provides temporary backup when mains power is lost.

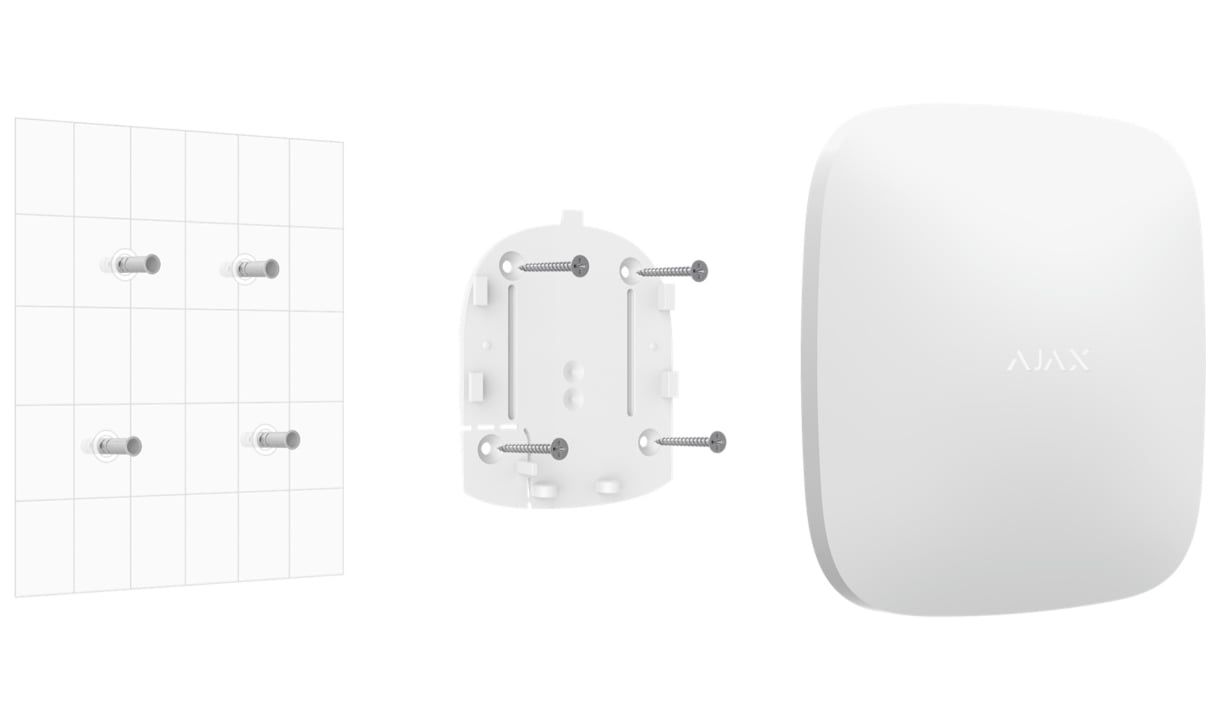

SmartBracket gives the hub a fixed mounting point. Locate it indoors where the radio signal, network connection and mobile reception are all suitable.
