Ajax Internal battery NB (7.2V/95Ah)

£128.50

(£107.08 ex VAT)

sku: AJAX-121874

Internal battery NB (7.2V/95Ah) is a non-rechargeable lithium thionyl chloride battery for Hub BP Jeweller. It fits inside the hub casing and can supply the hub on its own or provide backup when an external battery is used.

Battery only; Hub BP is separate. Do not recharge this battery.

Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Ajax Internal battery NB (7.2V/95Ah)

Ajax Baseline

Battery power for Hub BP. Designed for longer unattended use.

Autonomy depends on the installation.

Hub settings, communication activity and temperature affect the available operating time. Configure the correct internal battery type and Battery power saver settings for the site rather than treating a headline runtime as a guarantee.

The cable outlet must face upwards inside the casing. Ajax specifies this orientation to minimise capacity loss.

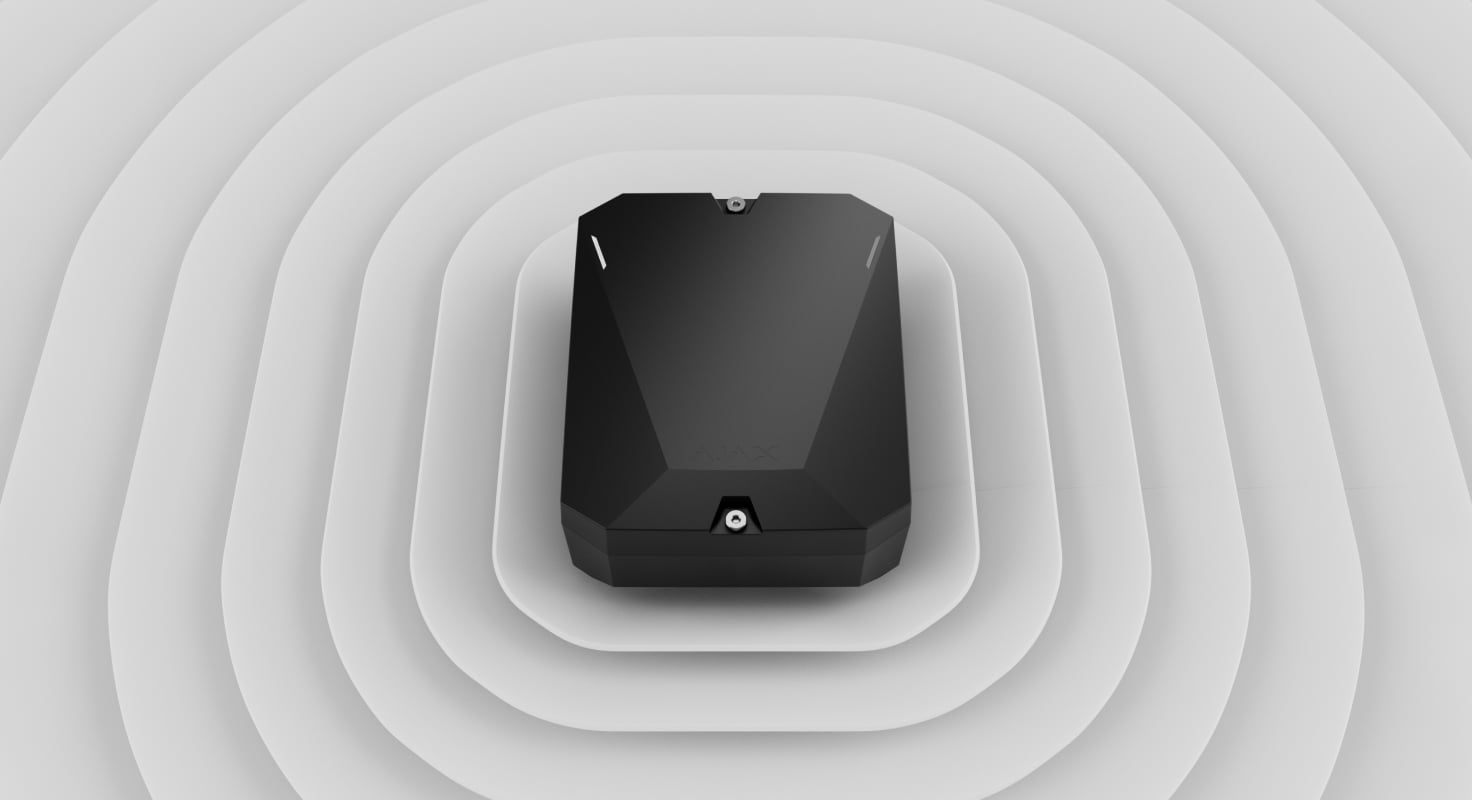

Hub BP

Complete the installation. Compatible equipment.

Ajax Hub BP Jeweller

Ajax Hub BP Jeweller

What you need. Fitting and setup.

Use the supported Hub BP internal-battery arrangement. Follow the manual for positioning, polarity, cable routing and securing the pack with ties. Keep the cable clear of the hub board and select the Ajax non-rechargeable lithium battery setting in the PRO app. Verify the connection state after fitting. Never recharge the NB pack; arrange safe replacement and disposal when depleted.

Fitting and setup guide Technical specifications

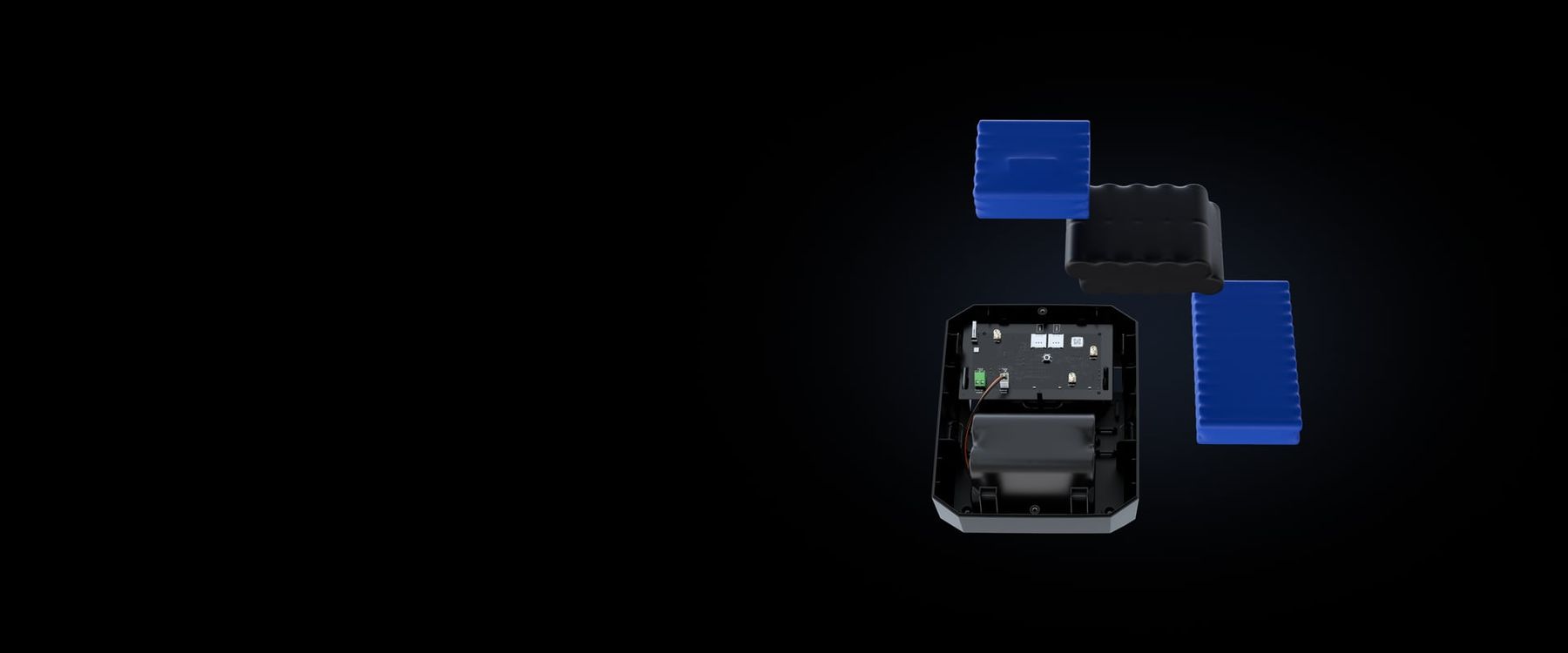

Shown as part of a Hub BP installation. This product is the battery only; hub and other equipment are separate.

Part Size (mm)
width 65
Height 135
Depth 105

Brand

SKU

AJAX-121874

Power Supply

7.2 V, 95 Ah non-rechargeable lithium thionyl chloride battery

Related Products

skip to Ajax Hub BP Jeweller

Ajax Hub BP Jeweller

£279.95

(£233.29 ex VAT)

sku: AJAX-HUB-BP

Hub BP connects compatible Ajax alarm devices at sites where a normal powered internet connection is impractical. Two mobile SIM slots provide the cloud connection; this is a distinct battery-powered hub, not a Hub 2 Plus option.

A compatible system and correctly planned installation are required; see fitting guidance below.

Colour

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Part Size (mm)
width 238
Height 196
Depth 100

Brand

SKU

AJAX-HUB-BP

Network Connection

Two SIM slots (2G/3G/4G)

Power Supply

Supported internal or external battery, purchased separately

Enclosure Protection

IP40

Hub Requirements

Battery-powered alarm hub; check device and Battery Saving mode compatibility
