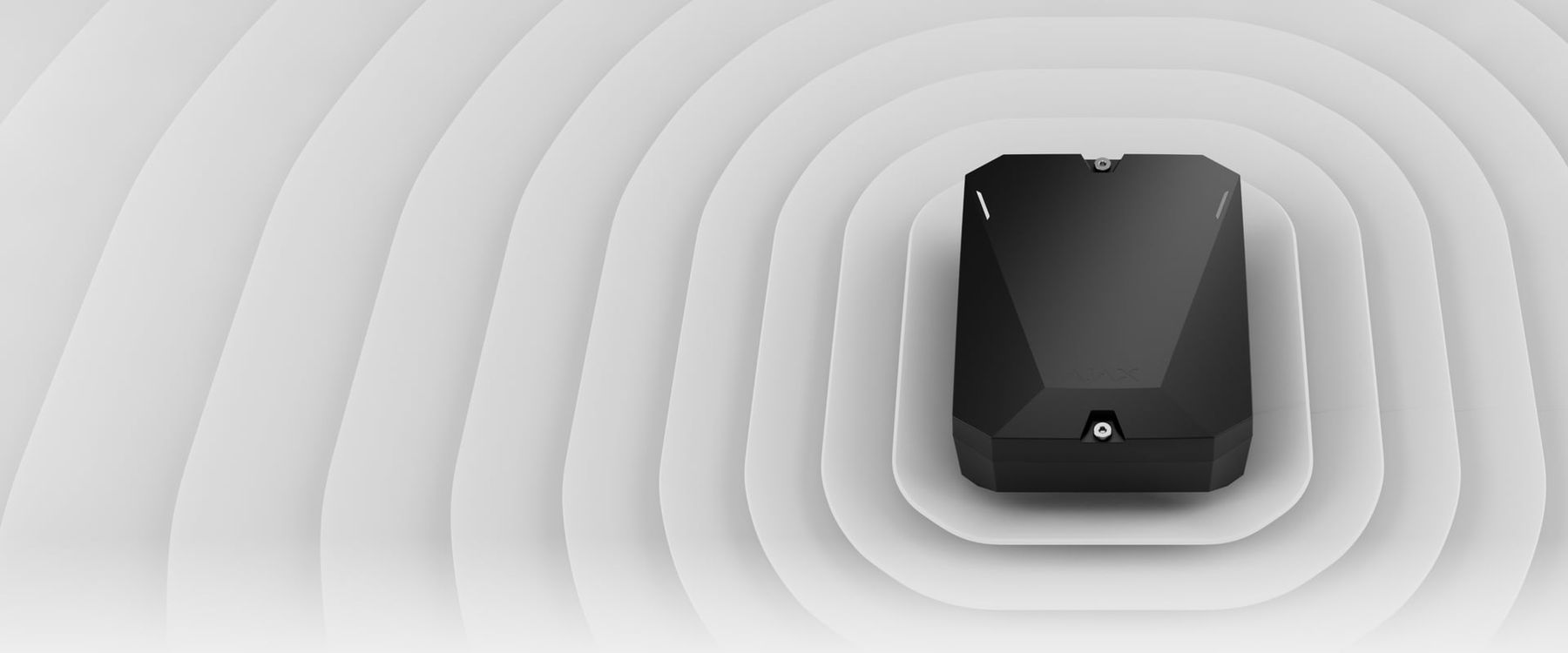

Ajax Hub BP Jeweller

Name: Ajax Hub BP Jeweller
Brand: Ajax
SKU: AJAX-HUB-BP

£279.95

(£233.29 ex VAT)

sku: AJAX-HUB-BP

Hub BP connects compatible Ajax alarm devices at sites where a normal powered internet connection is impractical. Two mobile SIM slots provide the cloud connection; this is a distinct battery-powered hub, not a Hub 2 Plus option.

A compatible system and correctly planned installation are required; see fitting guidance below.

Colour

Keys Supplied: per lock ( total) total (unless ordering multiple groups)

Additional Keys are available below

Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Protection away from the mains. Built around battery power.

Power planned around the site.

Battery Saving mode extends autonomy by changing the way the hub communicates. Runtime depends on the battery, signal and settings. Internal and external batteries are separate purchases, so the power plan must be chosen alongside the hub.

Impressive autonomy for challenging locations

Mains available? Consider a conventional hub.

Hub 2 Plus is our main choice for a home: Ethernet, Wi-Fi and mobile backup in one hub. Hub 2 (4G) is a smaller-capacity alternative without Wi-Fi. Hub BP is the specialist battery-powered option for sites without a suitable mains supply. These are alternatives, not three hubs needed together.

Scroll across if needed to compare prices and specifications.

Product prices and specifications. Configurable products show family options and starting prices.
	Ajax Hub 2 Plus Alarm Hub View product	Ajax Hub 2 (4G) Jeweller View product	Ajax Hub BP Jeweller View product
Price Including VAT	From £344.50	From £287.95	From £279.95
Network connection	Ethernet, 2.4 GHz Wi-Fi and two micro-SIM slots (2G/3G/4G)	Ethernet and two SIM slots (2G/3G/4G); no Wi-Fi	Two SIM slots (2G/3G/4G)
System capacity	Up to 200 devices, 200 users, 25 groups, 50 rooms and 64 scenarios	Up to 100 devices, 50 users, 9 groups and 32 scenarios	Not specified
Power supply	110-240 V AC, 50/60 Hz; built-in 3 Ah backup battery	Mains power with built-in backup battery	Supported internal or external battery, purchased separately
Battery life	Backup up to 15 hours with Ethernet disconnected and SIM communication only	Not specified	Not specified
Size (W x H x D)	163 x 163 x 36 (mm)	163 x 163 x 36 (mm)	238 x 196 x 100 (mm)

Evidence from a site you cannot visit quickly.

Compatible MotionCam detectors can provide photographs of an alarm, helping you distinguish an intrusion from an event that needs investigation. Jeweller carries alarm events and Wings carries supported photographs. The hub is not a surveillance recorder, and mobile data service and detector equipment are separate.

Complete the installation. Compatible equipment.

Ajax Internal battery NB (7.2V/95Ah)

Internal battery NB (7.2V/95Ah) is a non-rechargeable lithium thionyl chloride battery for Hub BP Jeweller. It fits inside the hub casing and can supply the hub on its own or provide backup when an external battery is used.

Ajax Internal battery RB (6.4V/36Ah)

Internal battery RB (6.4V/36Ah) is a rechargeable LiFePO4 battery pack for Hub BP Jeweller. It fits inside the hub casing and can supply the hub on its own or provide backup when an external battery is used.

What you need. Fitting and setup.

Provide a supported internal or external battery, compatible SIM service and reliable mobile reception. Fix the hub in a suitable protected location and test device coverage before final mounting. Configure Battery Saving mode following the manual and check how it affects communication. Do not connect an arbitrary charger or power supply.

Fitting and setup guide Technical specifications

Part	Size (mm)
width	238
Height	196
Depth	100

Brand

SKU

AJAX-HUB-BP

Network Connection

Two SIM slots (2G/3G/4G)

Power Supply

Supported internal or external battery, purchased separately

Enclosure Protection

IP40

Hub Requirements

Battery-powered alarm hub; check device and Battery Saving mode compatibility

FAQs

The supported internal or external battery must be selected separately. Match battery capacity, maintenance and the operating mode to the site.

Yes. It changes communication behaviour to extend autonomy. Review the exact mode limitations with the installer rather than expecting the same continuous connectivity as a mains-powered hub.

Related Products

Product

Ajax Internal battery NB (7.2V/95Ah)

£128.50

(£107.08 ex VAT)

sku: AJAX-121874

Battery only; Hub BP is separate. Do not recharge this battery.

Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Part	Size (mm)
width	65
Height	135
Depth	105

Brand

SKU

AJAX-121874

Power Supply

7.2 V, 95 Ah non-rechargeable lithium thionyl chloride battery

Product

Ajax Internal battery RB (6.4V/36Ah)

£94.50

(£78.75 ex VAT)

sku: AJAX-132037

Battery only; Hub BP and a recommended charger are separate. Hub BP does not charge this pack.

Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Part	Size (mm)
width	120
Height	133
Depth	51
