skip to Ajax KeyPad Plus Wireless Alarm Keypad

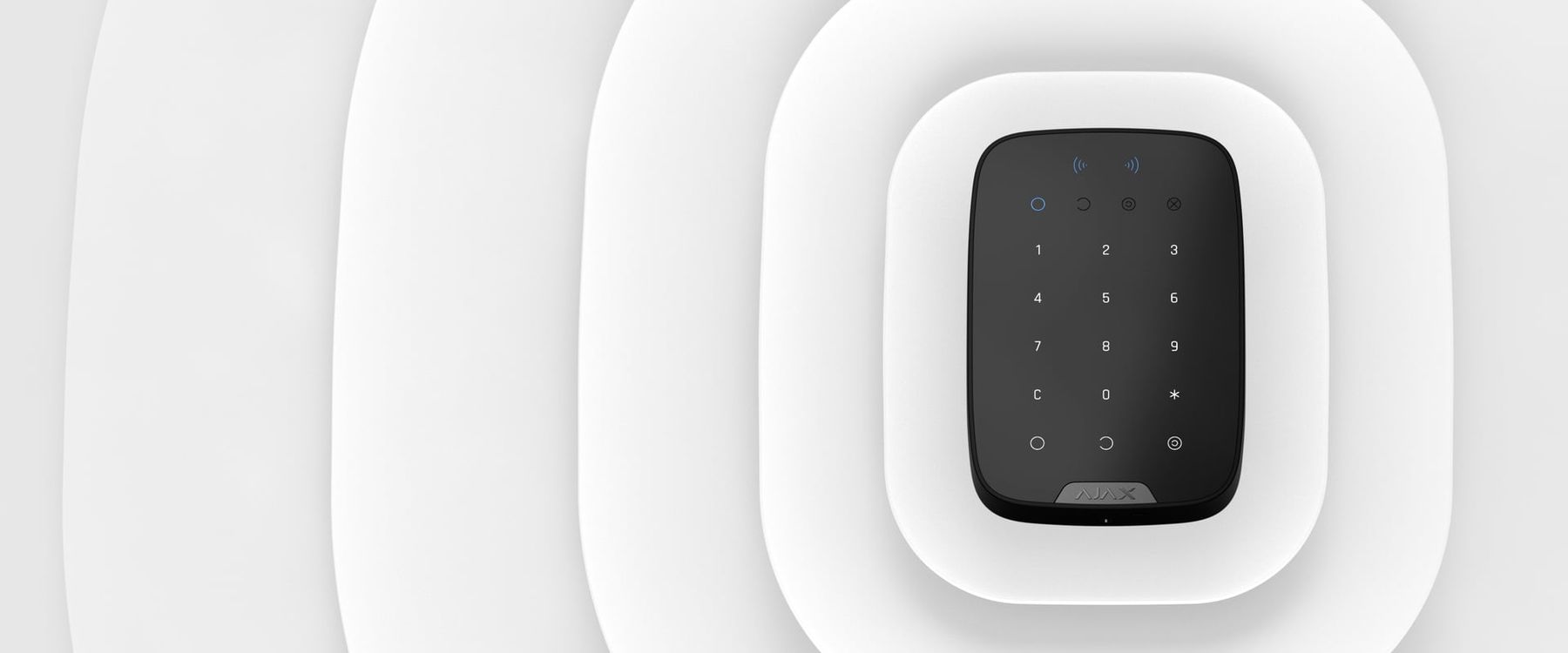

Ajax KeyPad Plus Wireless Alarm Keypad

£146.75

(£122.29 ex VAT)

sku: AJAX-KEYPAD-PLUS

Control your Ajax alarm with a code, Pass card or Tag key fob. A touch-sensitive keypad with contactless access and individual permissions.

Requires a compatible Ajax hub. Pass cards and Tag key fobs are supplied separately.

Colour

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

A simple way in and out. Your alarm, close to hand.

KeyPad Plus gives an Ajax alarm a familiar point of control at the entrance. Use an access code, or present a compatible Pass card or Tag key fob, with permissions managed through the Ajax app.

Ajax Baseline

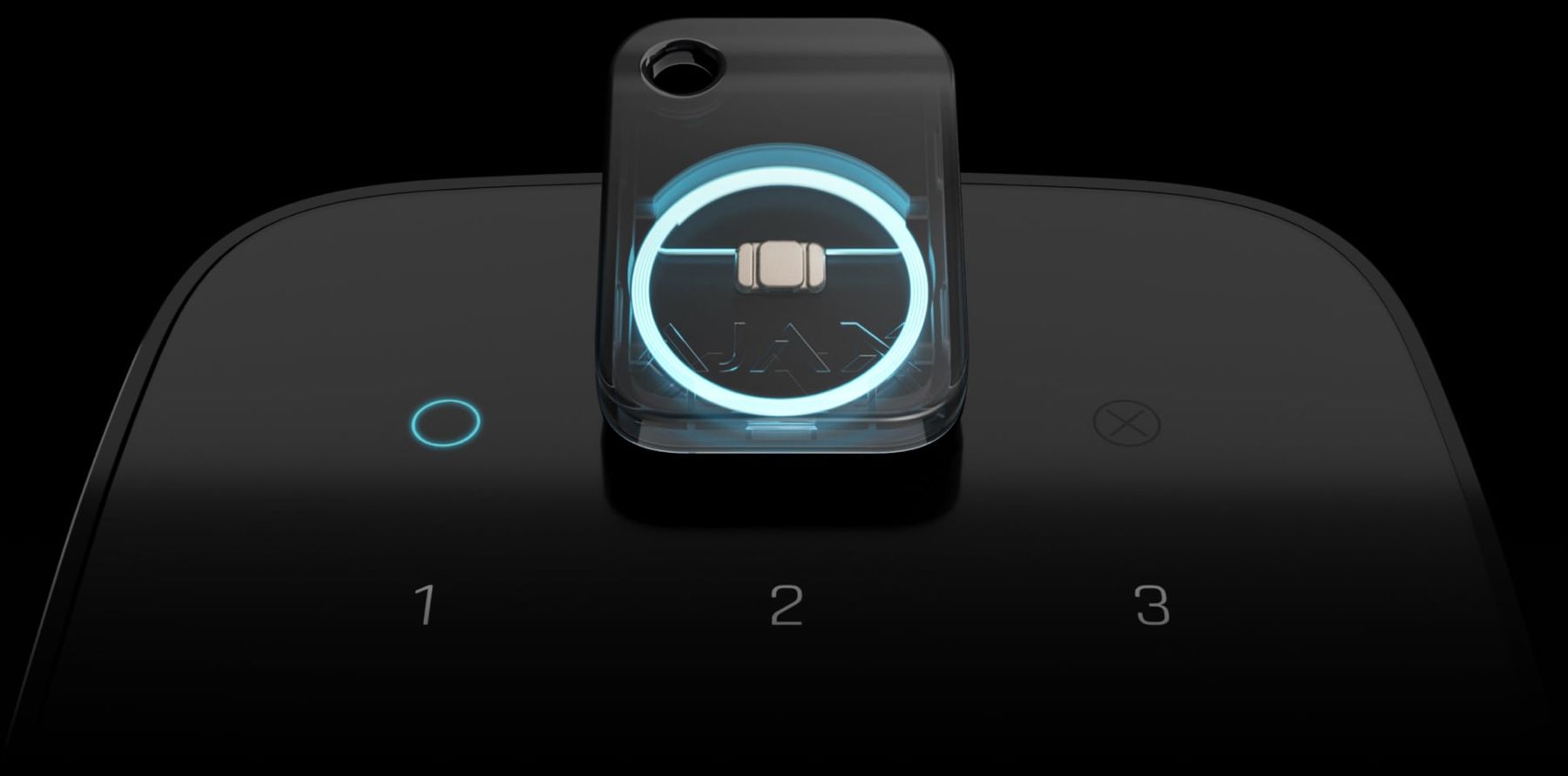

Contactless access with considered security.

Compatible Pass cards and Tag key fobs use DESFire technology. Access can be linked to individual users and revoked if a credential goes missing, rather than sharing one permanent code with everyone.

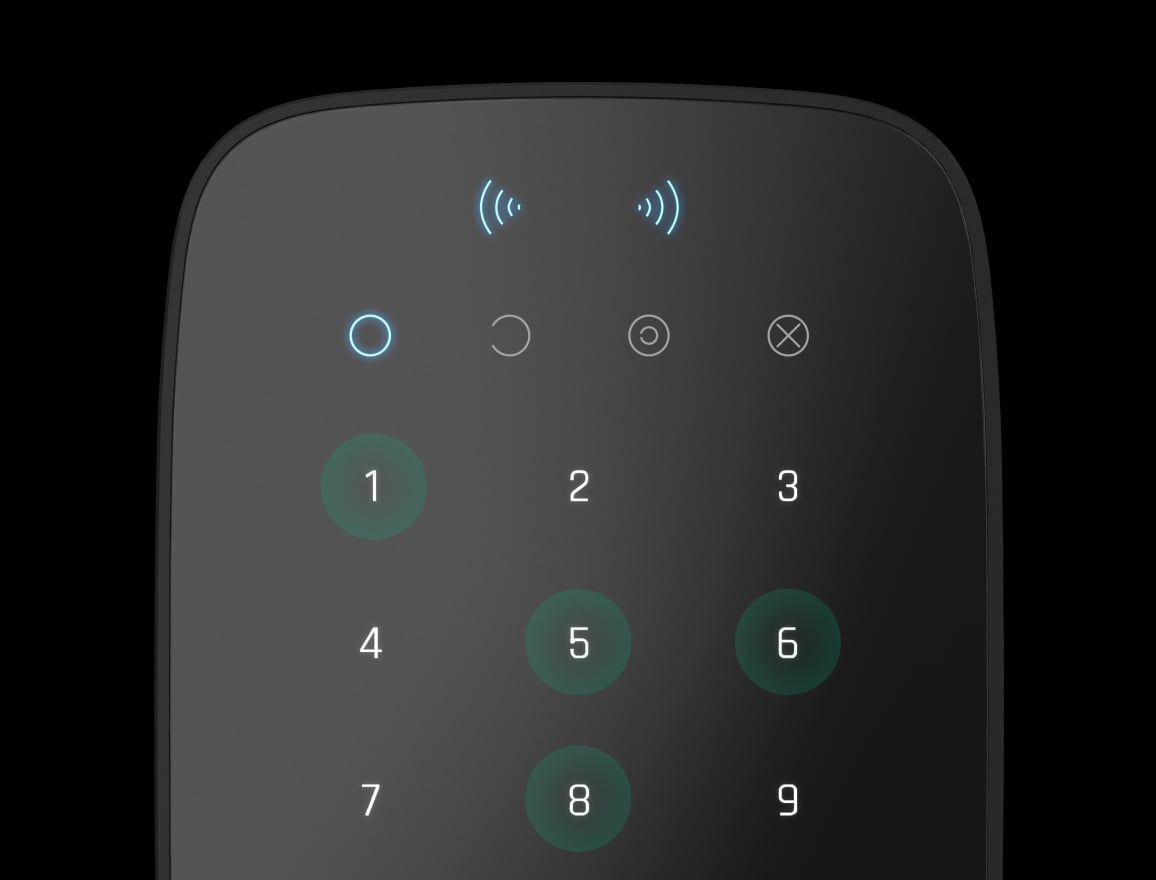

Access without another app account.

Guest access codes can suit visitors, contractors or other people who do not need an Ajax account. Availability and code capacity depend on the hub and software. Set permissions for the areas each person actually needs.

More than an arm button.

The touch-sensitive panel and status indicators make daily alarm control straightforward. Group control, Night Mode and a configurable function button support the way the system is used. This is a keypad, not a touchscreen video monitor.

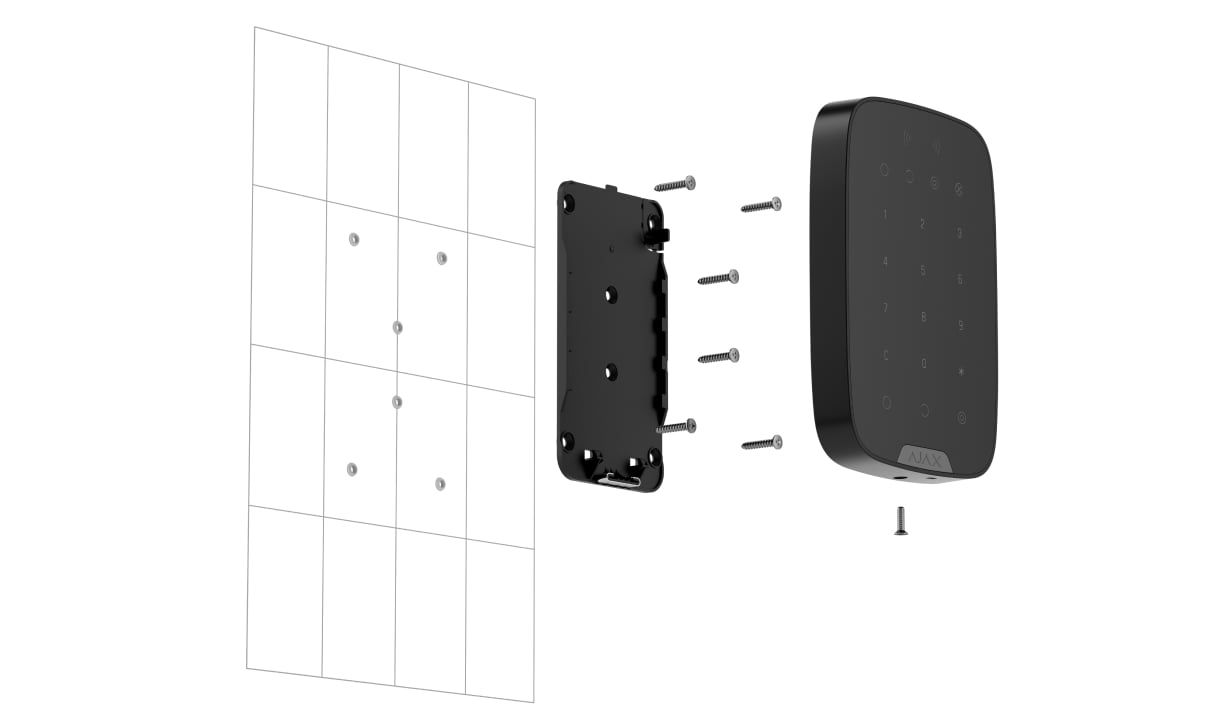

What you need. Fitting and setup.

Provide a compatible Ajax hub and a suitable indoor position near the entrance, out of public view where possible. No mains or Ethernet cable is needed at the keypad: four AA batteries are supplied. Mount SmartBracket securely, check Jeweller signal strength and configure users, entry/exit delays and any group control. Test each authorised access method and the alarm response with the installer. Pass cards, Tag key fobs and any monitoring service are separate purchases.

Explore Hub 2 Plus Fitting and setup guide Technical specifications
Part Size (mm)
width 113
Height 165
Depth 20

Brand

SKU

AJAX-KEYPAD-PLUS

Network Connection

Jeweller radio

Power Supply

4 x AA batteries, pre-installed

Enclosure Protection

Indoor installation

Radio Range

Up to 1,700 m in open space

Battery Life

Up to 3.5 years

System Capacity

Up to 200 personal codes, depending on hub; DESFire Pass/Tag support

Hub Requirements

Compatible Ajax hub required; capacity depends on hub

Operating Temperature

-10 to +40 C

FAQs

No. Compatible contactless credentials are supplied separately; the keypad also supports access codes.

Do not assume that any bank card or access fob will work. Use the compatible credentials listed by Ajax for KeyPad Plus.

No mains or Ethernet cable is required at the keypad. It runs on four pre-installed AA batteries and communicates with a compatible hub by radio.

Yes. Personal credentials and configured group permissions let you distinguish access, subject to the hub capacity and software.

No. KeyPad Plus manages the alarm. It does not show camera video or directly replace a door-entry system.

Automatic blocking can respond to repeated incorrect codes or unrecognised credentials. Configure the lockout behaviour as part of commissioning.

A configured duress code can appear to disarm normally while raising a duress event. The response depends on the monitoring arrangements and system configuration.

The keypad communicates by Jeweller and runs on four included AA batteries. The hub reports low battery and supervision events.

Related Products

skip to Ajax Hub 2 Plus Alarm Hub

Ajax Hub 2 Plus Alarm Hub

£344.50

(£287.08 ex VAT)

sku: AJAX-HUB2-PLUS

An Ajax alarm hub with Ethernet, Wi-Fi and two mobile SIM slots. Brings compatible detectors, sirens and automation together in the Ajax app.

Detectors, sirens and optional mobile service are required separately. The hub is not a video recorder or a camera power supply.

Colour

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

At the centre of your protection. Ready for everyday life.

Arm the alarm, see which detector has triggered and manage access from the Ajax app. Hub 2 Plus connects the alarm devices around your property, with space to add compatible fire detectors and automation as your needs grow.

Ajax Baseline

Several ways to get the message through.

Ethernet, Wi-Fi and two mobile SIM slots give the hub alternative routes to Ajax Cloud. Configure more than one route for resilience. Mobile connectivity needs compatible SIMs, coverage and an active service; switching between SIMs can take up to four minutes.

See the reason for an alarm.

A compatible MotionCam detector can send a sequence of photographs with an alarm, helping you understand what happened before deciding how to respond. Photo-on-demand and scenario features depend on the detector and permissions. Continuous camera recordings need their own storage, not the hub.

Alarm verification with photo in 9 seconds

Separate areas. One manageable system.

Up to 25 security groups let different areas follow different routines. The hub supports up to 200 devices and 200 users, while up to 64 scenarios can connect events to compatible lights, relays or other automation devices. Each accessory and its installation is separate.

Protection of large premises with complex internal organization

Choose the hub for the site. Connectivity, capacity and power.

Hub 2 Plus is our main choice for a home: Ethernet, Wi-Fi and mobile backup in one hub. Hub 2 (4G) is a smaller-capacity alternative without Wi-Fi. Hub BP is the specialist battery-powered option for sites without a suitable mains supply. These are alternatives, not three hubs needed together.

Scroll across if needed to compare prices and specifications.

Product prices and specifications. Configurable products show family options and starting prices.

Ajax Hub 2 Plus Alarm Hub

View product

Ajax Hub 2 (4G) Jeweller

View product

Ajax Hub BP Jeweller

View product
Price Including VAT From £344.50From £287.95From £279.95
Network connection
  • Ethernet, 2.4 GHz Wi-Fi and two micro-SIM slots (2G/3G/4G)
  • Ethernet and two SIM slots (2G/3G/4G); no Wi-Fi
  • Two SIM slots (2G/3G/4G)
System capacity
  • Up to 200 devices, 200 users, 25 groups, 50 rooms and 64 scenarios
  • Up to 100 devices, 50 users, 9 groups and 32 scenarios
 Not specified
Power supply
  • 110-240 V AC, 50/60 Hz; built-in 3 Ah backup battery
  • Mains power with built-in backup battery
  • Supported internal or external battery, purchased separately
Battery life
  • Backup up to 15 hours with Ethernet disconnected and SIM communication only
 Not specified Not specified
Size (W x H x D)
  • 163 x 163 x 36 (mm)
  • 163 x 163 x 36 (mm)
  • 238 x 196 x 100 (mm)

What you need. Fitting and setup.

Provide a suitable mains socket and an internet connection through Ethernet or Wi-Fi. Run an Ethernet cable to the router if using the wired route; detector cabling is not required for compatible Jeweller devices. Fit and configure any SIMs, mount the hub on SmartBracket, then add and test each detector and siren. Check radio coverage before fixing devices permanently. A qualified alarm installer should design the coverage, set delays and test the complete system. Monitoring and mobile subscriptions are separate services.

Fitting and setup guide Technical specifications
Part Size (mm)
width 163
Height 163
Depth 36

Brand

SKU

AJAX-HUB2-PLUS

Network Connection

Ethernet, 2.4 GHz Wi-Fi and two micro-SIM slots (2G/3G/4G)

Power Supply

110-240 V AC, 50/60 Hz; built-in 3 Ah backup battery

Enclosure Protection

IP20

Radio Range

Jeweller up to 2,000 m; Wings up to 1,700 m (open space, device-dependent)

Battery Life

Backup up to 15 hours with Ethernet disconnected and SIM communication only

System Capacity

Up to 200 devices, 200 users, 25 groups, 50 rooms and 64 scenarios

Hub Requirements

Central alarm hub; compatible Ajax devices required

Operating Temperature

-10 to +40 C

skip to Ajax Pass

Ajax Pass

£19.75

(£16.46 ex VAT)

sku: AJAX-PASS

Pass is a contactless access card for supported Ajax keypad readers. It offers a practical way to manage authorised users without handing everyone the same code.

Accessory only. Check the exact equipment and installation requirements.

Colour

model

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Present a card. Manage access without shared codes.

Manage each card individually.

Access is assigned and withdrawn in the Ajax system. A lost card should be disabled promptly. Pack size changes the number of cards supplied, not the capabilities of an individual card.

One key for home and office

What you need. Fitting and setup.

A compatible reader keypad and Ajax hub are required. Enrol each card, assign the intended user and groups, then test access at the reader. Pass is not a bank card or an independent door lock.

Fitting and setup guide Technical specifications
skip to Ajax Tag

Ajax Tag

£22.50

(£18.75 ex VAT)

sku: AJAX-TAG

Tag is a contactless key fob for supported Ajax keypad readers. It keeps authorised alarm access close to the keys people already carry.

Accessory only. Check the exact equipment and installation requirements.

Colour

model

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Access on a keyring. Permission you can manage.

A credential, not a remote control.

A Tag presents access credentials; it does not have SpaceControl remote-control buttons. Pack size changes the quantity supplied. Disable any lost Tag and keep access permissions limited to the user need.

One key for home and office

What you need. Fitting and setup.

Use a compatible reader keypad and Ajax hub. Enrol and assign each Tag, test it on the intended keypad and explain the agreed access procedure to the user.

Fitting and setup guide Technical specifications
Part Size (mm)
width 32
Height 45
Depth 6
