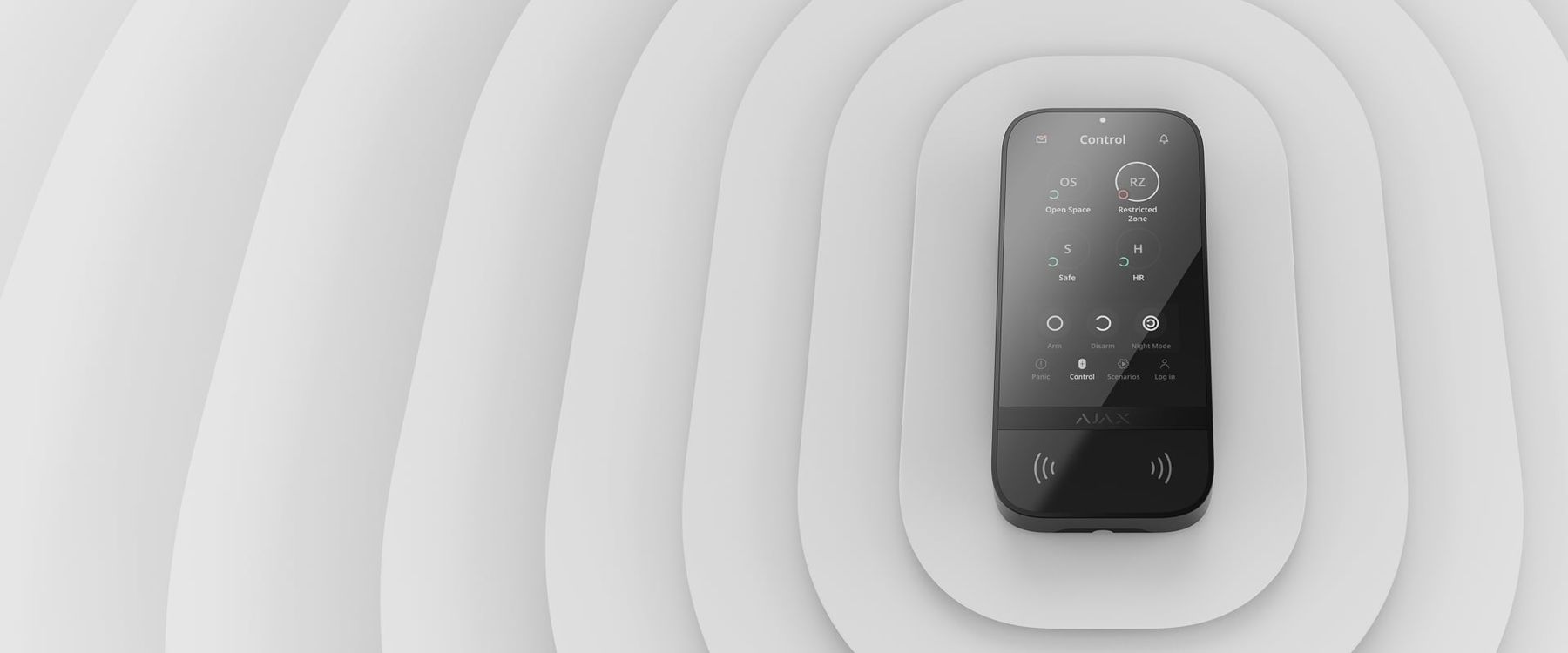

Ajax KeyPad TouchScreen Jeweller

Name: Ajax KeyPad TouchScreen Jeweller
Brand: Ajax
SKU: AJAX-KEYPAD-TOUCHSCREEN

£296.95

(£247.46 ex VAT)

sku: AJAX-KEYPAD-TOUCHSCREEN

KeyPad TouchScreen gives compatible Ajax systems a clear local interface for security groups and supported control functions. It is a premium alternative to the simpler KeyPad Plus.

A compatible system and correctly planned installation are required; see fitting guidance below.

Colour

Keys Supplied: per lock ( total) total (unless ordering multiple groups)

Additional Keys are available below

Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

See and control the system. At a dedicated touchscreen.

Control without sharing a code.

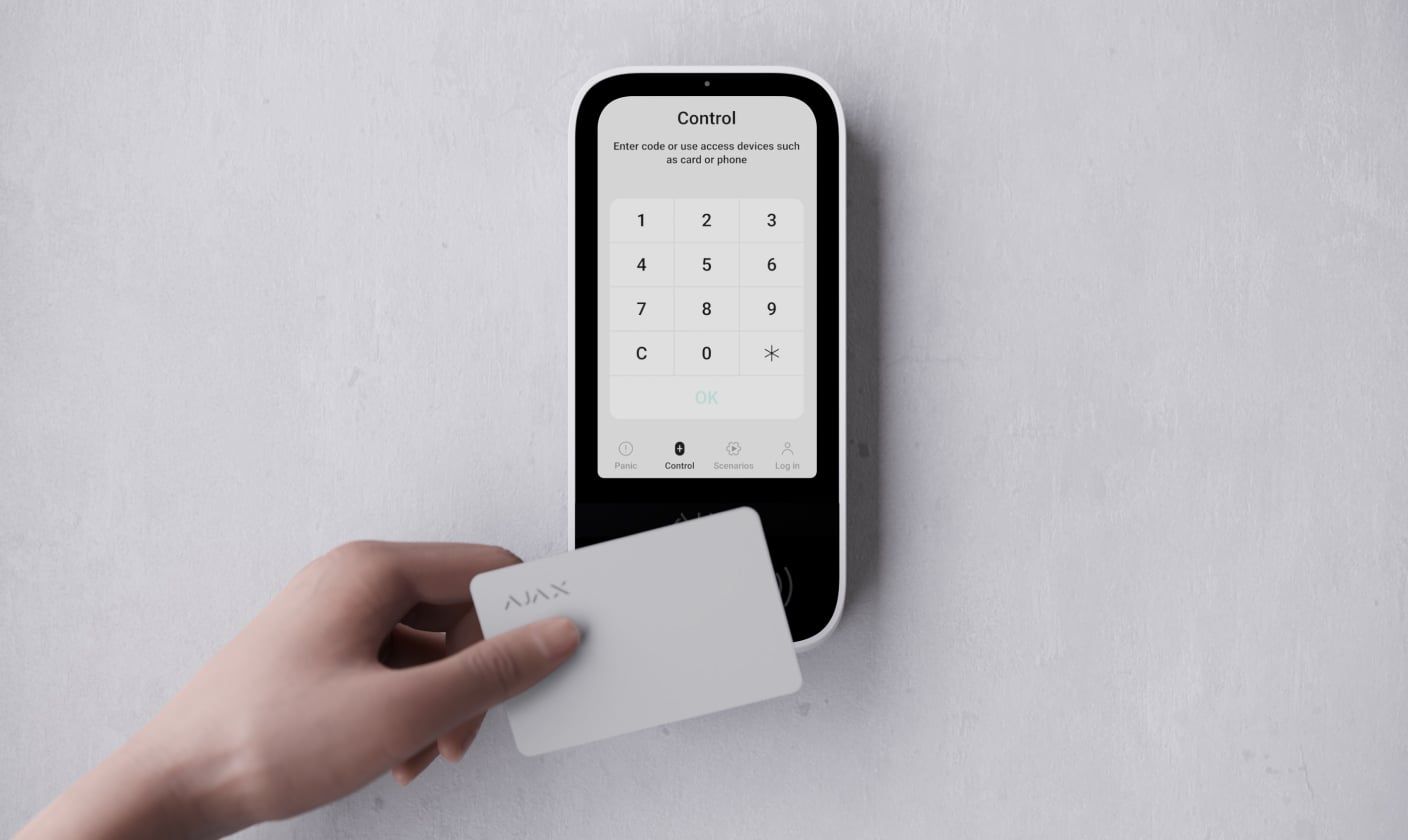

Contactless access and supported phone access can reduce the need to share codes. Access methods and functions depend on the hub, firmware and configuration; users should only receive the permissions they need.

See the system state at the entrance.

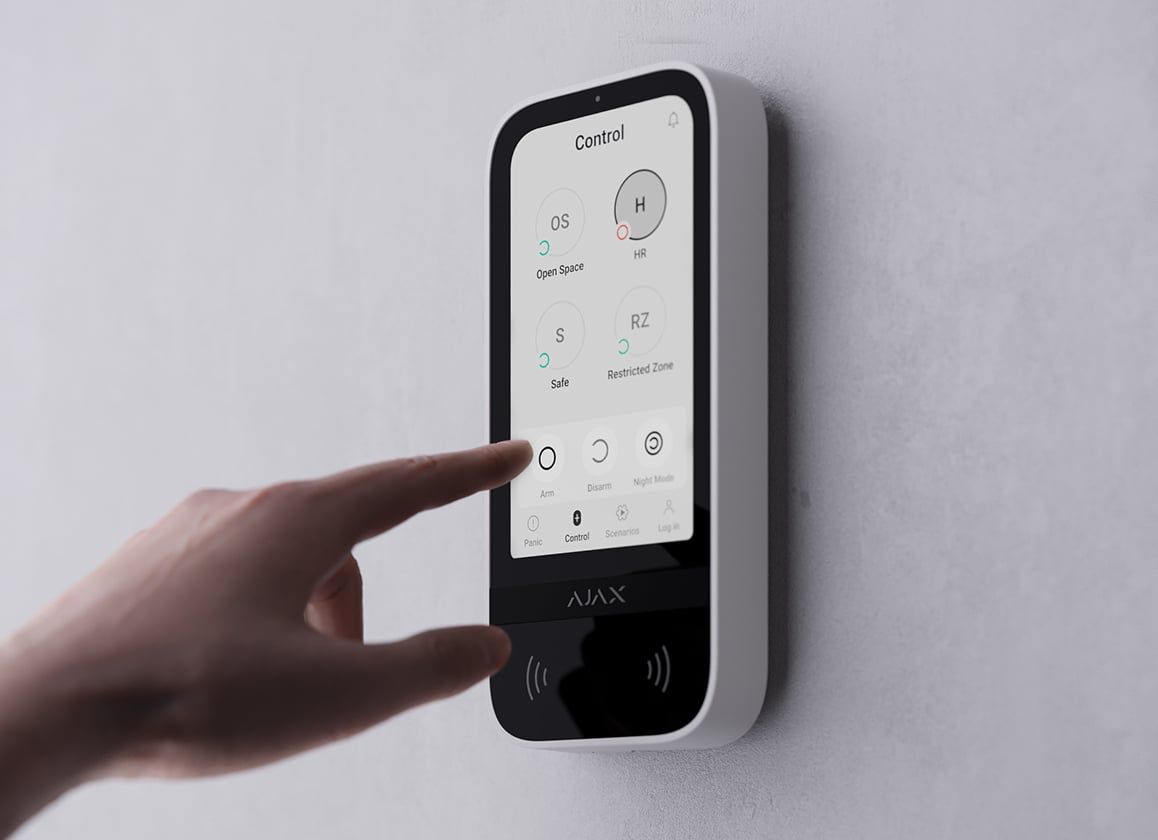

The touchscreen shows recent events and offers security-group and compatible automation control at the keypad. Access can use codes, supported Pass/Tag credentials or a compatible smartphone through Bluetooth. Give each person appropriate rights rather than sharing one household code.

Complete the installation. Compatible equipment.

Ajax Hub 2 Plus Alarm Hub

An Ajax alarm hub with Ethernet, Wi-Fi and two mobile SIM slots. Brings compatible detectors, sirens and automation together in the Ajax app.

Ajax Pass

Pass is a contactless access card for supported Ajax keypad readers. It offers a practical way to manage authorised users without handing everyone the same code.

Ajax Tag

Tag is a contactless key fob for supported Ajax keypad readers. It keeps authorised alarm access close to the keys people already carry.

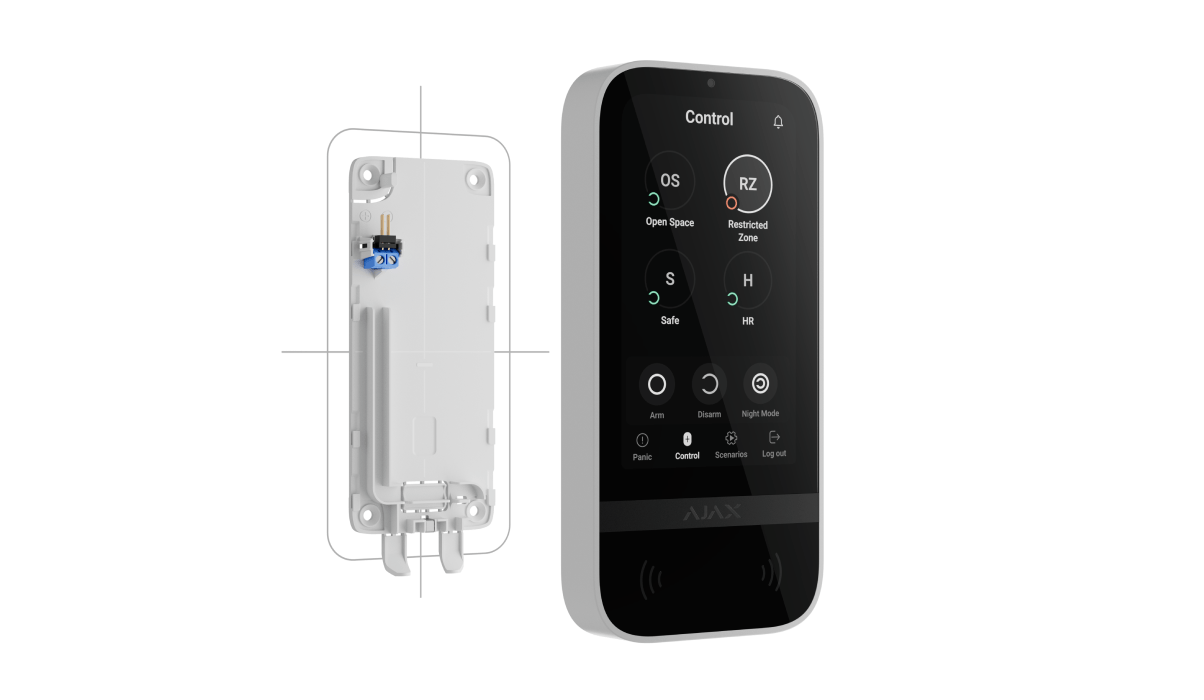

What you need. Fitting and setup.

Mount indoors where authorised users can reach it on entry. Pair with a compatible hub and configure users, groups and access methods. Check the specified battery and optional external-power requirements before cabling; this is not an Ethernet or PoE keypad.

Fitting and setup guide Technical specifications

Part	Size (mm)
width	82
Height	172
Depth	26

Brand

SKU

AJAX-KEYPAD-TOUCHSCREEN

Power Supply

6 × AA lithium; Pre-installed.

Battery Life

up to 1.5 years With default settings and up to 4 interactions with a keypad per day.
