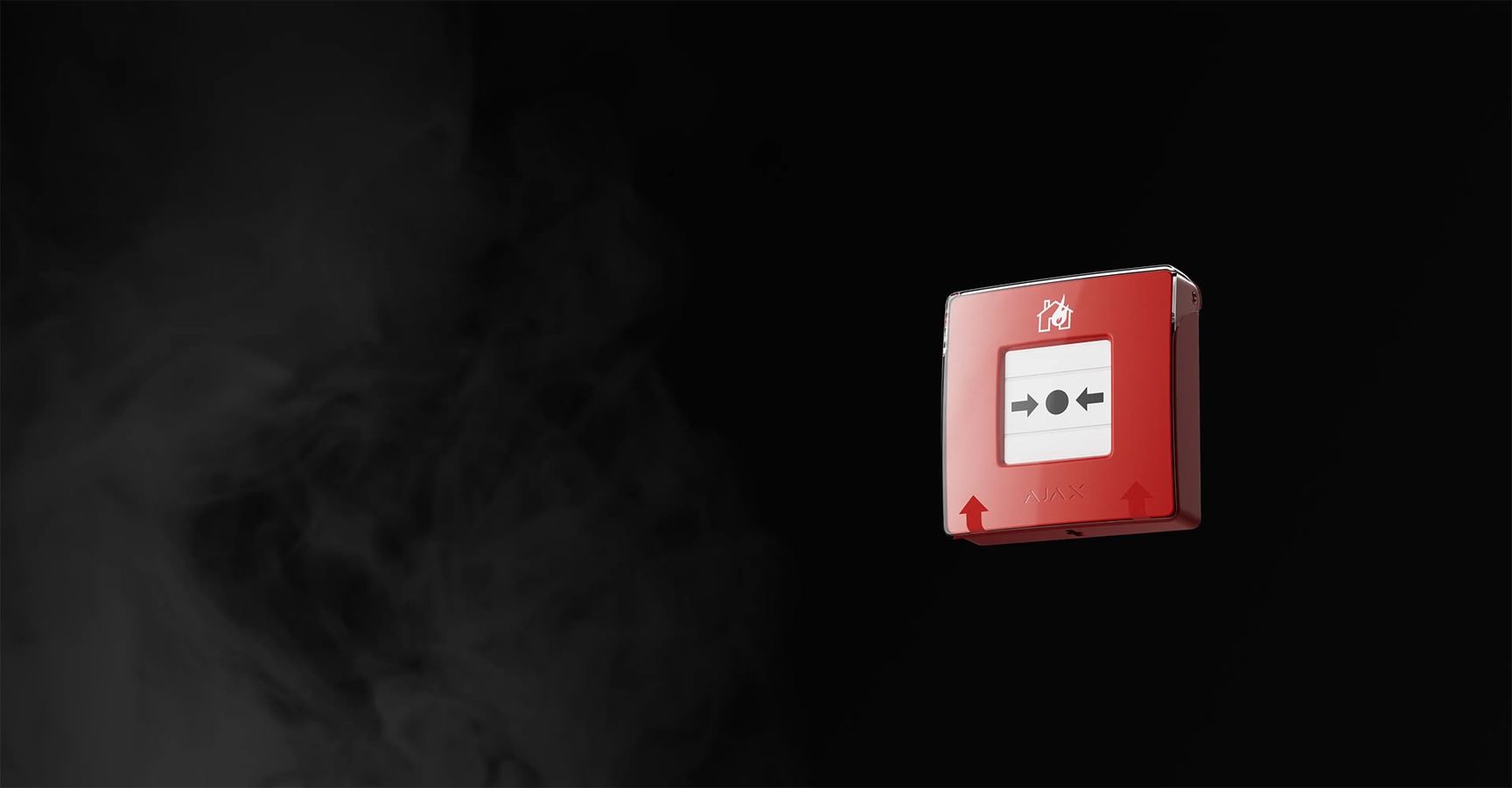

Ajax ManualCallPoint (Red) Jeweller

£78.25

(£65.21 ex VAT)

sku: AJAX-60815

ManualCallPoint Red allows a person to trigger a configured fire alarm manually. Its resettable element avoids replacing break-glass material after a test or activation.

A compatible system and correctly planned installation are required; see fitting guidance below.

Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Ajax ManualCallPoint (Red) Jeweller

Raise the alarm. A resettable fire call point.

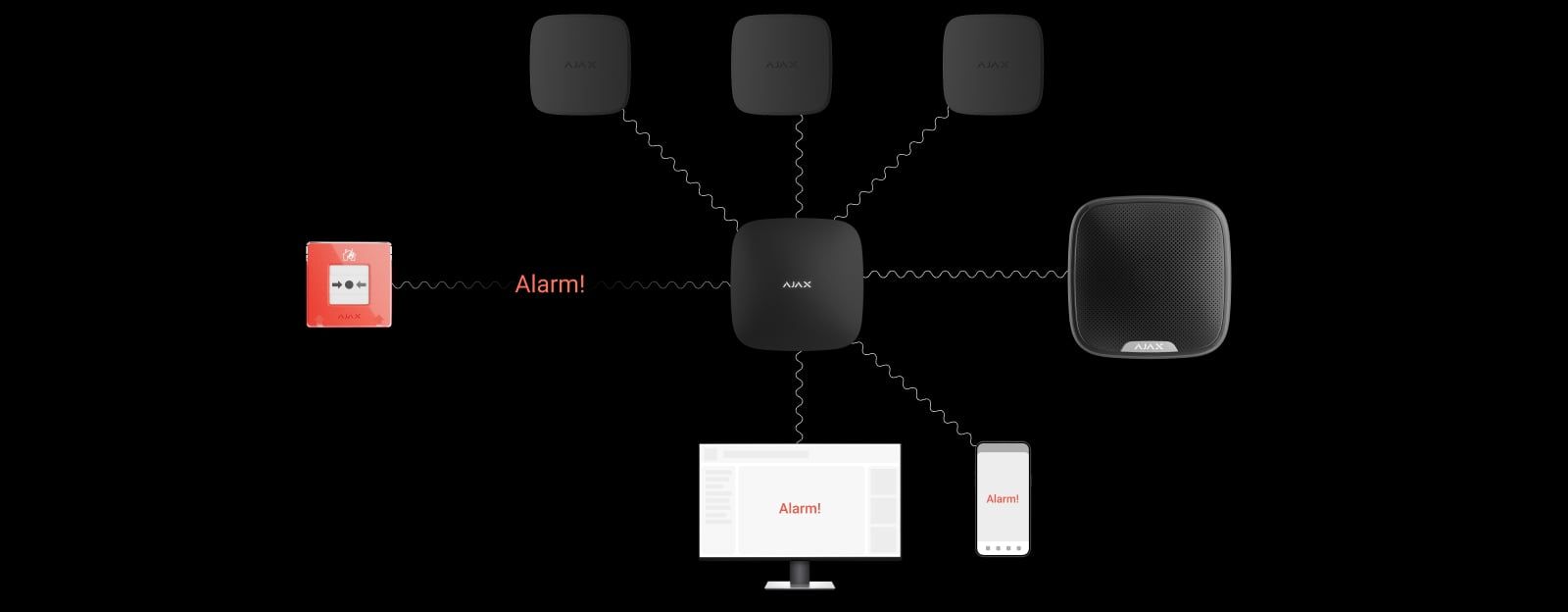

From call point to sirens. Set up the complete response.

Pressing the call point sends a manual fire alarm to a compatible Ajax hub. Configure the intended fire-sounder response and notifications, then test the complete sequence. The call point itself does not detect smoke or heat.

The transparent protective lid helps prevent accidental activation. After an activation or test, reset the button with the specified key; its element is reusable rather than a disposable break-glass panel.

Consistently informed, everywhere

Complete the installation. Compatible equipment.

Ajax Hub 2 Plus Alarm Hub

Ajax Hub 2 Plus Alarm Hub

What you need. Fitting and setup.

Mount in an accessible, clearly identified position and pair with the supported Ajax hub. Configure and label the intended action, then test the complete response. Reset with the specified tool. Where life safety or escape routes are involved, a competent specialist must design and approve the installation.

Fitting and setup guide Technical specifications
Part Size (mm)
width 104
Height 102
Depth 39

Brand

SKU

AJAX-60815

Power Supply

2 × CR123A; Pre-installed. With typical use (one press lasting 1 minute per week), the batteries can last up to 7 years.

FAQs

No. This is a manual fire-alarm call point. Automatic detection needs the appropriate separate detectors.

The activation element is resettable using the specified tool. Follow the testing and reset instructions.
