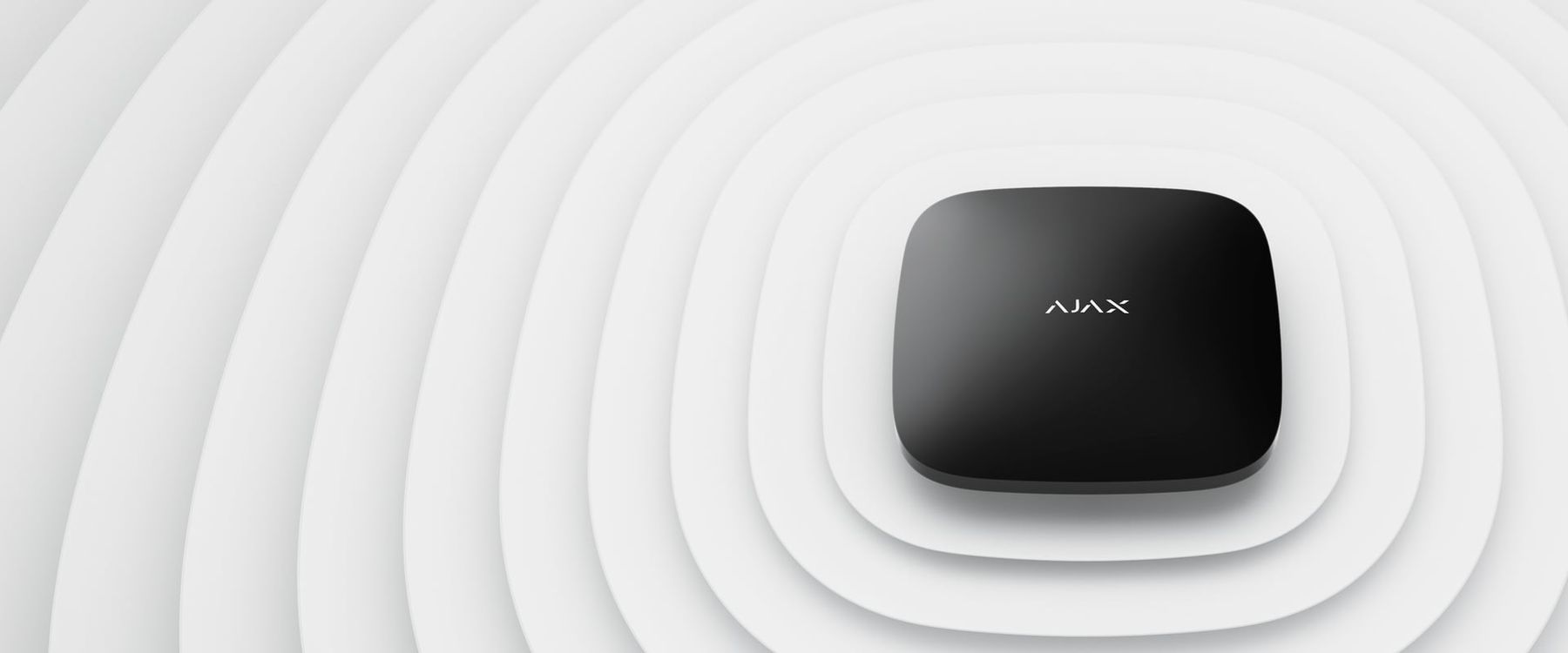

Ajax ReX 2 Jeweller

£197.95

(£164.96 ex VAT)

sku: AJAX-REX-2

ReX 2 extends the connection to compatible Ajax wireless devices, including supported photo-verification detectors. It is useful across larger properties or where walls weaken the radio path.

A compatible system and correctly planned installation are required; see fitting guidance below.

Colour

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Ajax Baseline

Reach the parts of the property the hub cannot reach alone.

Ajax ReX 2 Jeweller

A route through the building.

ReX 2 carries Jeweller alarm traffic and Wings photographs for supported devices. An Ethernet connection can provide an additional route to the hub through the local network where radio propagation is difficult.

Check the exact hub and device compatibility, then test both radio links. This is an alarm range extender, not a Wi-Fi booster, second hub or camera recorder; it does not increase the hub's maximum device capacity.

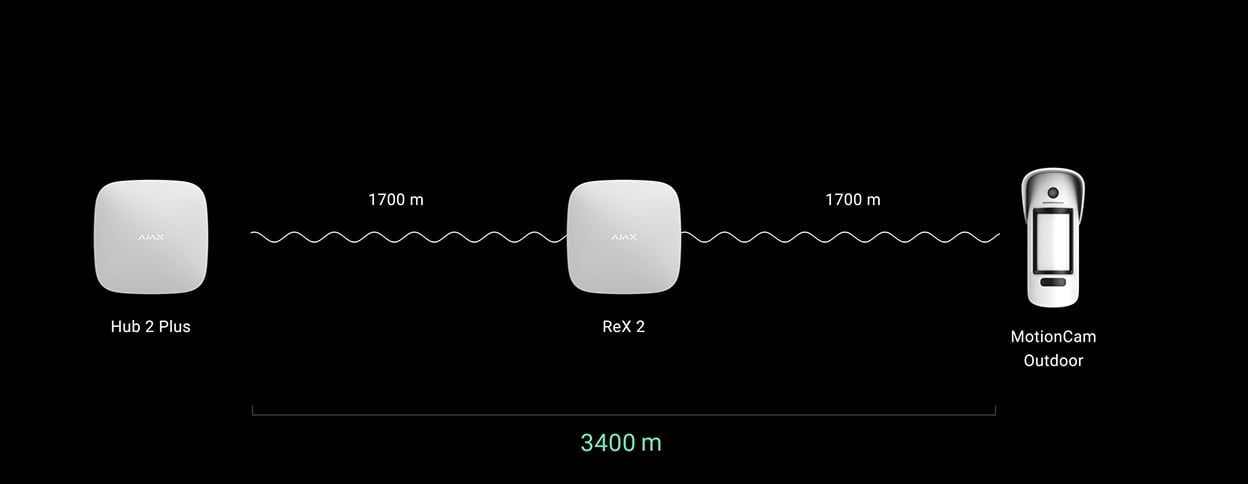

Extended radio communication range

Complete the installation. Compatible equipment.

Ajax Hub 2 Plus Alarm Hub

Ajax Hub 2 Plus Alarm Hub

What you need. Fitting and setup.

Provide mains power and position ReX 2 where the device-side radio signal is suitable. Run Ethernet to the network if using that connection to the hub. Pair it with the compatible hub, assign the intended devices and perform signal tests at the final locations.

Fitting and setup guide Technical specifications

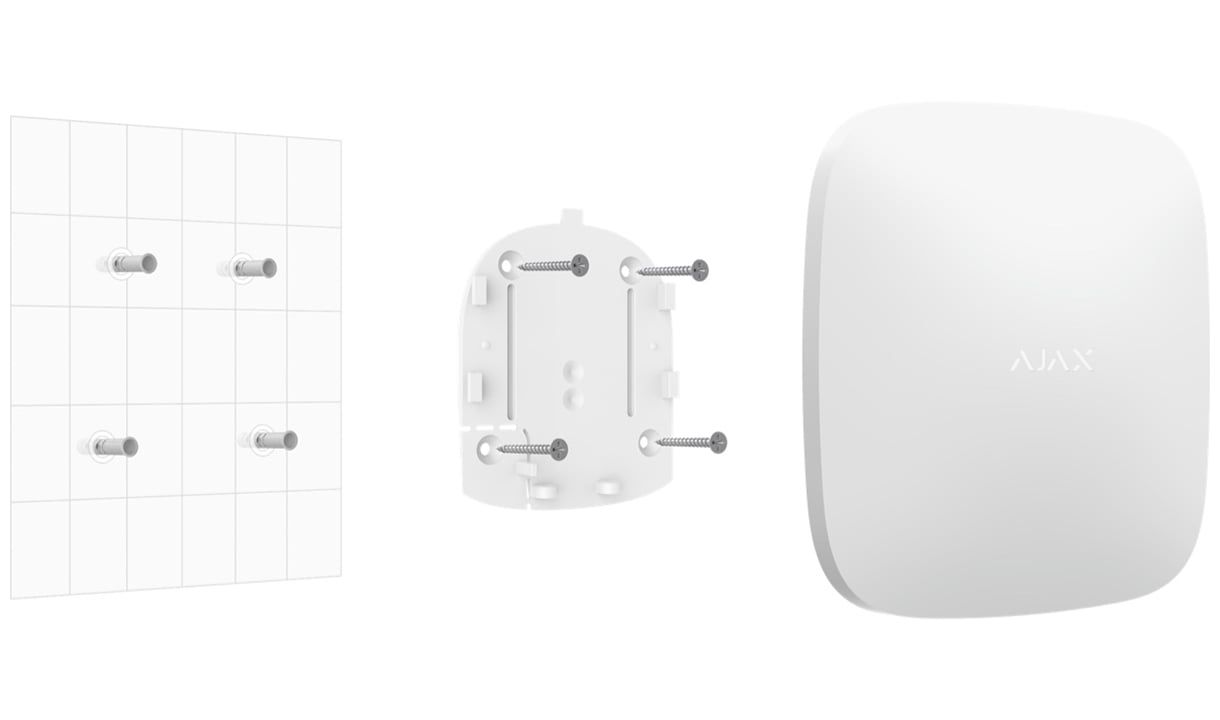

Installation
Part Size (mm)
width 163
Height 163
Depth 36

Brand

SKU

AJAX-REX-2

Network Connection

Jeweller, Wings and Ethernet

Power Supply

Mains power with built-in backup battery

Enclosure Protection

IP30

Hub Requirements

Compatible Ajax hub required; not a standalone hub

FAQs

No. It extends a compatible Ajax hub and cannot operate as the system control panel on its own.

No. It extends supported Ajax device communication. Its Ethernet connection is an alternative route through the local network, not a Wi-Fi access point.
