Ajax Transmitter Jeweller

£67.50

(£56.25 ex VAT)

sku: AJAX-56211

Transmitter is an integration board for a compatible third-party alarm device. It takes wired alarm and tamper signals and reports them through an Ajax hub.

A compatible system and correctly planned installation are required; see fitting guidance below.

Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Ajax Baseline

Connect a single wired device. Keep the system wireless to the hub.

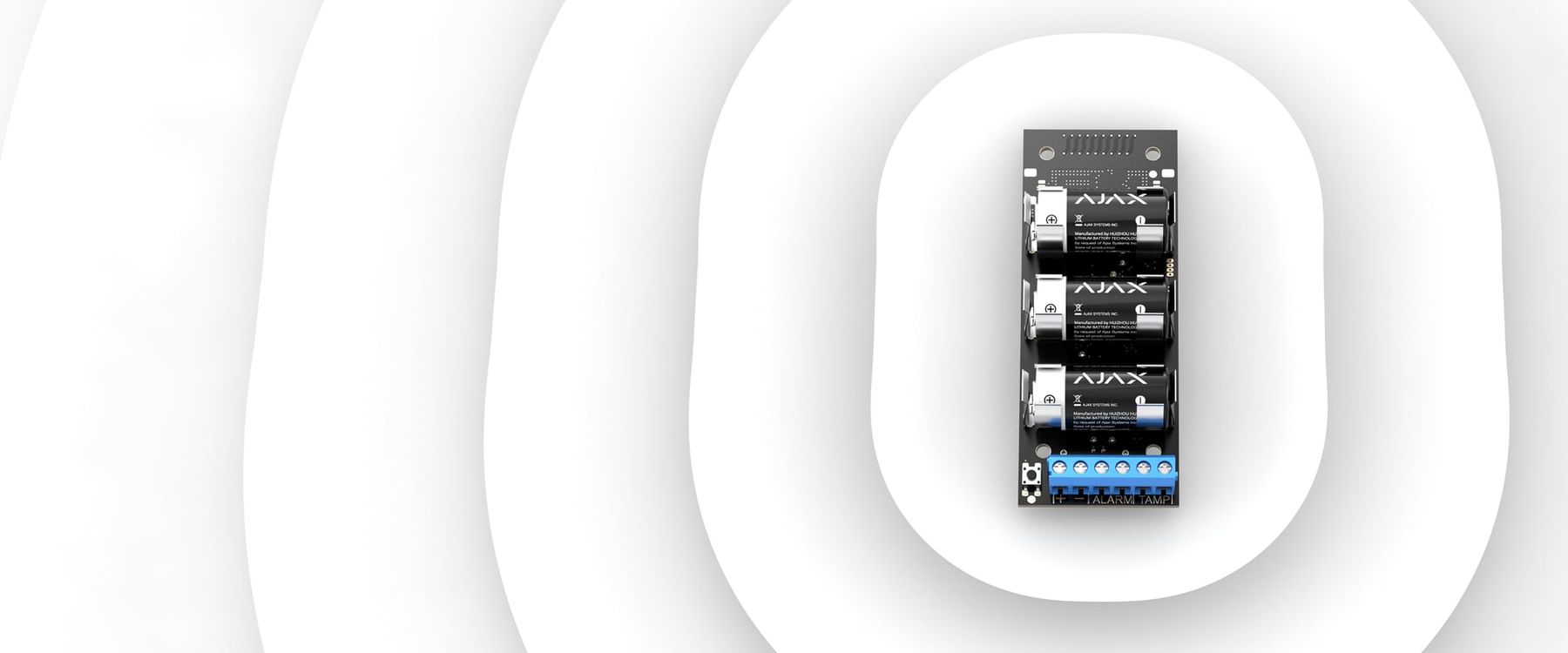

Ajax Transmitter Jeweller

An interface. Not a finished detector.

Transmitter passes a supported wired detector's alarm and tamper events to an Ajax hub over radio. It is a bare integration module, not a complete detector or a general Wi-Fi adapter.

The input type, power output, contacts and enclosure must suit the connected equipment. Higher-power equipment may need its own supply; check the electrical and alarm requirements before ordering.

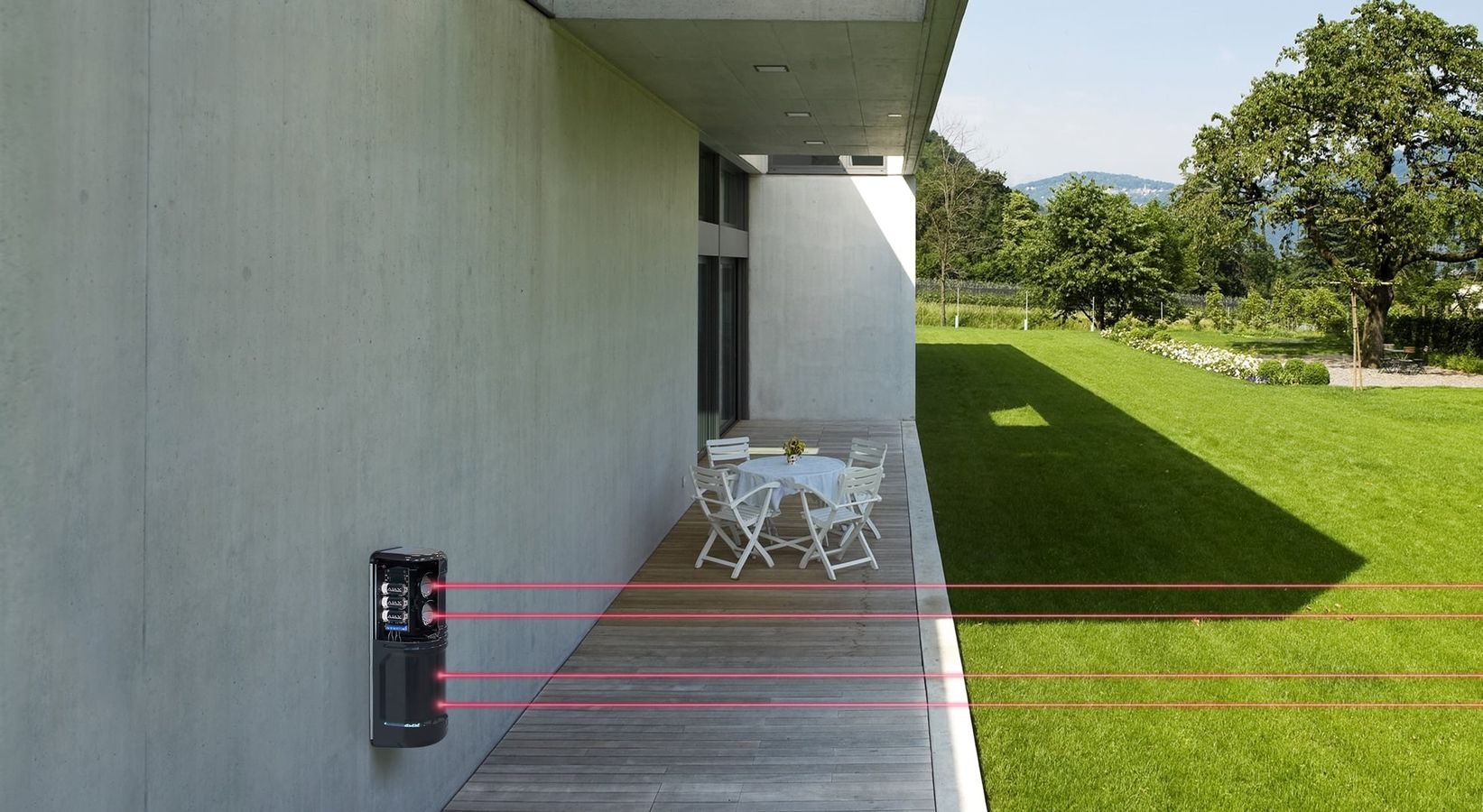

Principle of operation

Complete the installation. Compatible equipment.

Ajax Hub 2 Plus Alarm Hub

Ajax Hub 2 Plus Alarm Hub

What you need. Fitting and setup.

Install inside a suitable detector housing or enclosure with sufficient clearance. Wire the alarm and tamper contacts as specified, verify the power budget and configure the input type in Ajax. Test the complete device and radio link before putting it into service.

Explore Hub 2 Plus Fitting and setup guide Technical specifications

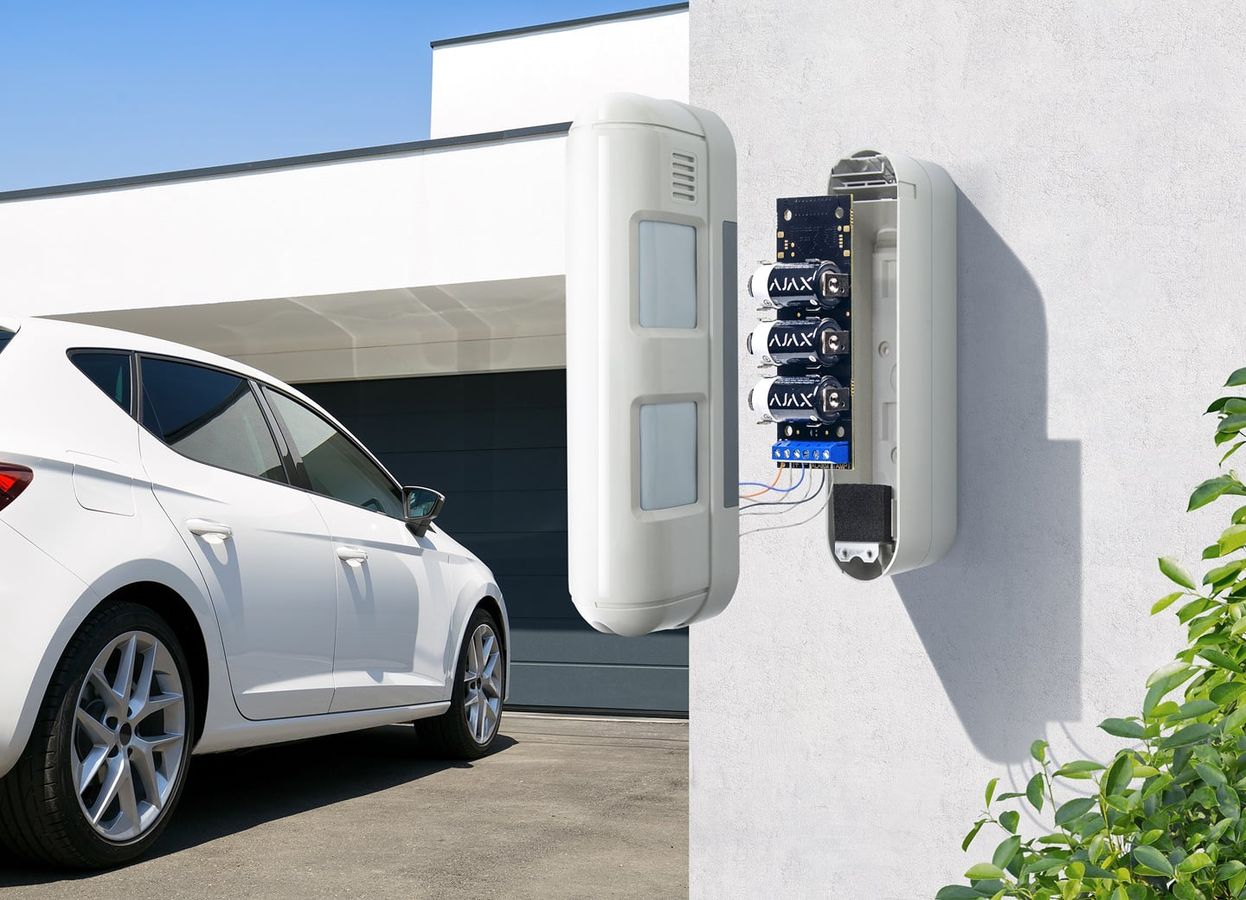

Installation
Part Size (mm)
width 39
Height 100
Depth 22

Brand

SKU

AJAX-56211

Power Supply

3 × CR123A; Pre-installed. Battery life depends on the power consumption of a connected wired device.

Related Products

skip to Ajax Hub 2 Plus Alarm Hub

Ajax Hub 2 Plus Alarm Hub

£344.50

(£287.08 ex VAT)

sku: AJAX-HUB2-PLUS

An Ajax alarm hub with Ethernet, Wi-Fi and two mobile SIM slots. Brings compatible detectors, sirens and automation together in the Ajax app.

Detectors, sirens and optional mobile service are required separately. The hub is not a video recorder or a camera power supply.

Colour

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Part Size (mm)
width 163
Height 163
Depth 36

Brand

SKU

AJAX-HUB2-PLUS

Network Connection

Ethernet, 2.4 GHz Wi-Fi and two micro-SIM slots (2G/3G/4G)

Power Supply

110-240 V AC, 50/60 Hz; built-in 3 Ah backup battery

Enclosure Protection

IP20

Radio Range

Jeweller up to 2,000 m; Wings up to 1,700 m (open space, device-dependent)

Battery Life

Backup up to 15 hours with Ethernet disconnected and SIM communication only

System Capacity

Up to 200 devices, 200 users, 25 groups, 50 rooms and 64 scenarios

Hub Requirements

Central alarm hub; compatible Ajax devices required

Operating Temperature

-10 to +40 C
