skip to Asec AS2300 Mortice Mechanical Digital Deadlatch Lock with Optional Holdback

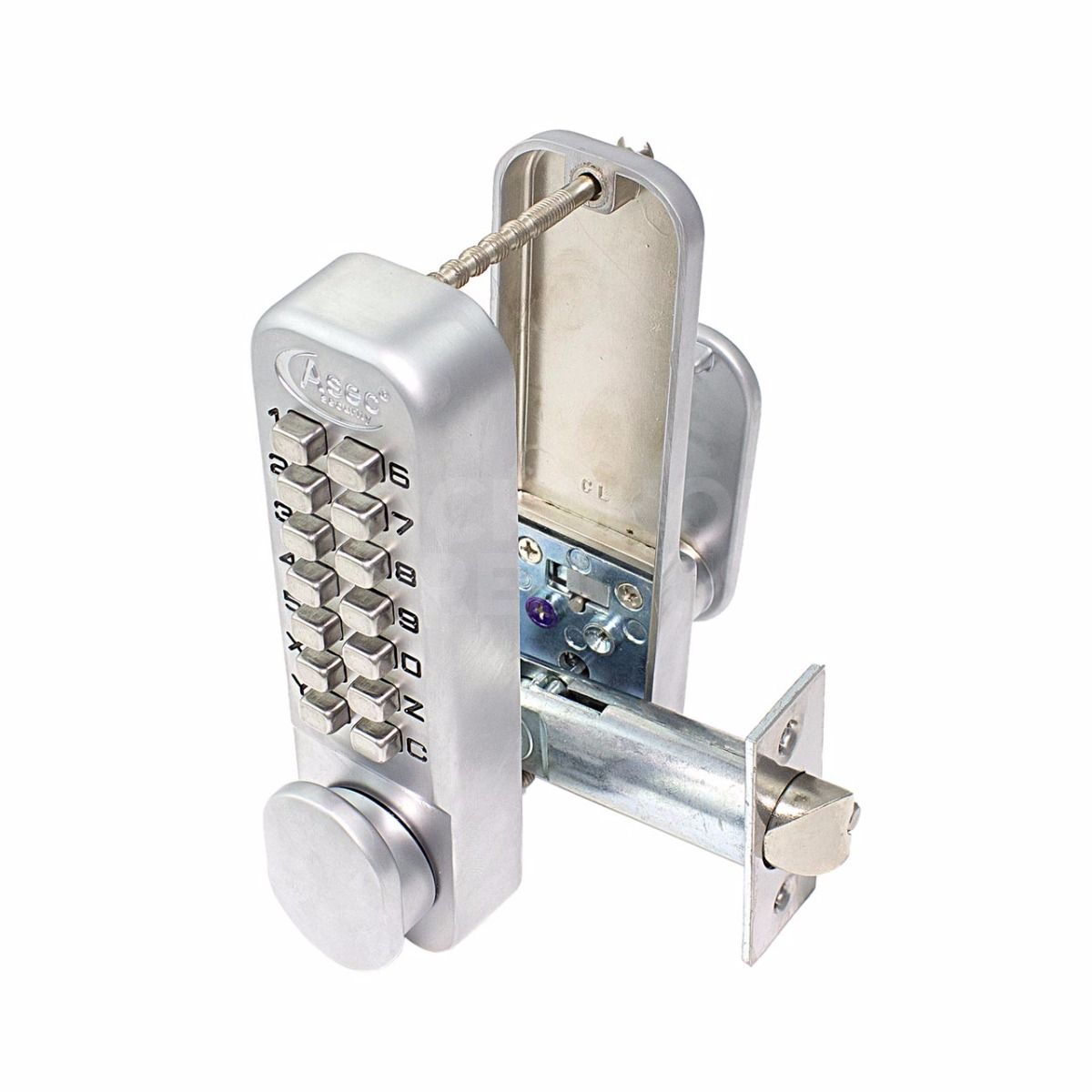

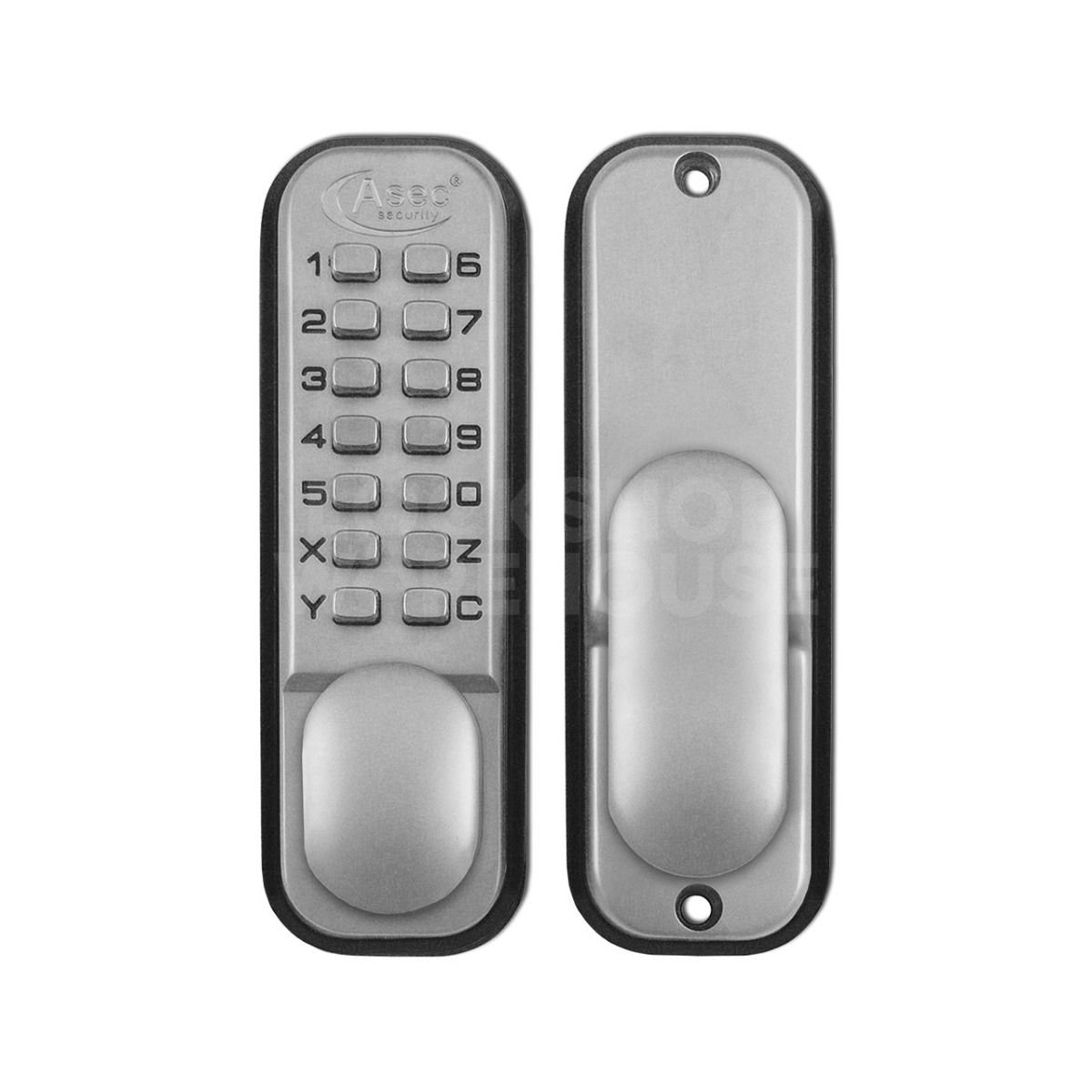

Asec AS2300 Mortice Mechanical Digital Deadlatch Lock with Optional Holdback

£30.00

(£25.00 ex VAT)

sku: AS-2300
  • Mechanical digital operation for keyless access control
  • Supplied with a 60mm backset tubular deadlatch
  • Suitable for both internal and external door applications
  • Optional holdback facility for convenient free passage
  • Compatible with timber doors between 35mm and 60mm thick
  • Supports over 1,000 unique code combinations
  • Thumbturn operation for simple entry and exit
Document Icon Asec Digital Lock Document Icon Installation Sheet Document Icon Change Code Instructions Document Icon Data Sheet

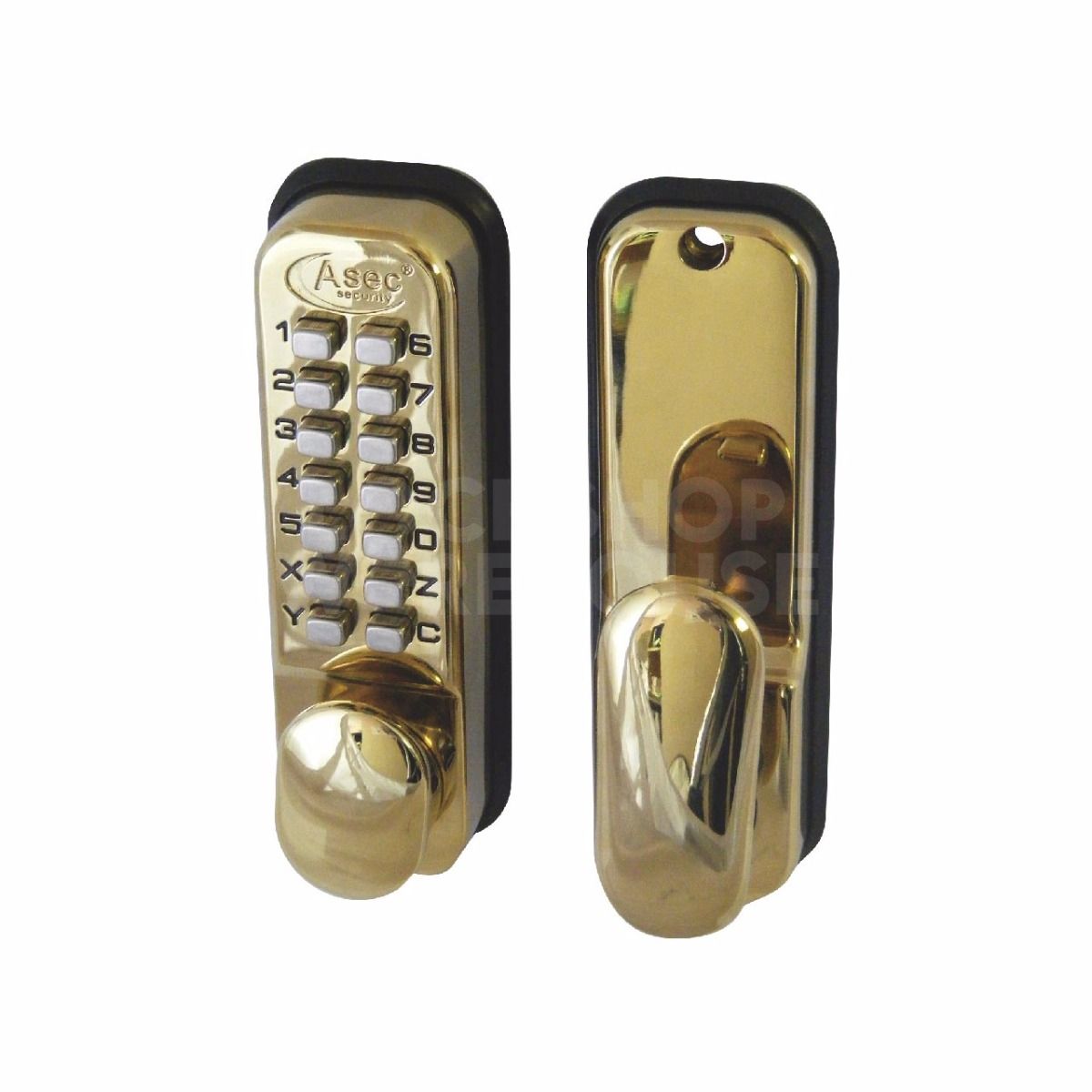

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

6/10 Security Rating
5 Year Guarantee

One shared code, with holdback when wanted

AS2300 provides mechanical shared-code entry and a supplied tubular latch. The optional holdback can keep the latch retracted during periods of free access, or be disabled when that facility is not wanted. It is a complete lock format, unlike a replacement latch sold separately.

Fitting and setup

  • Measure the door thickness, backset and existing fixing positions against the exact model drawing.
  • Set the new code and test the outside control, inside operation and latch engagement with the door open before closing it.

Product support

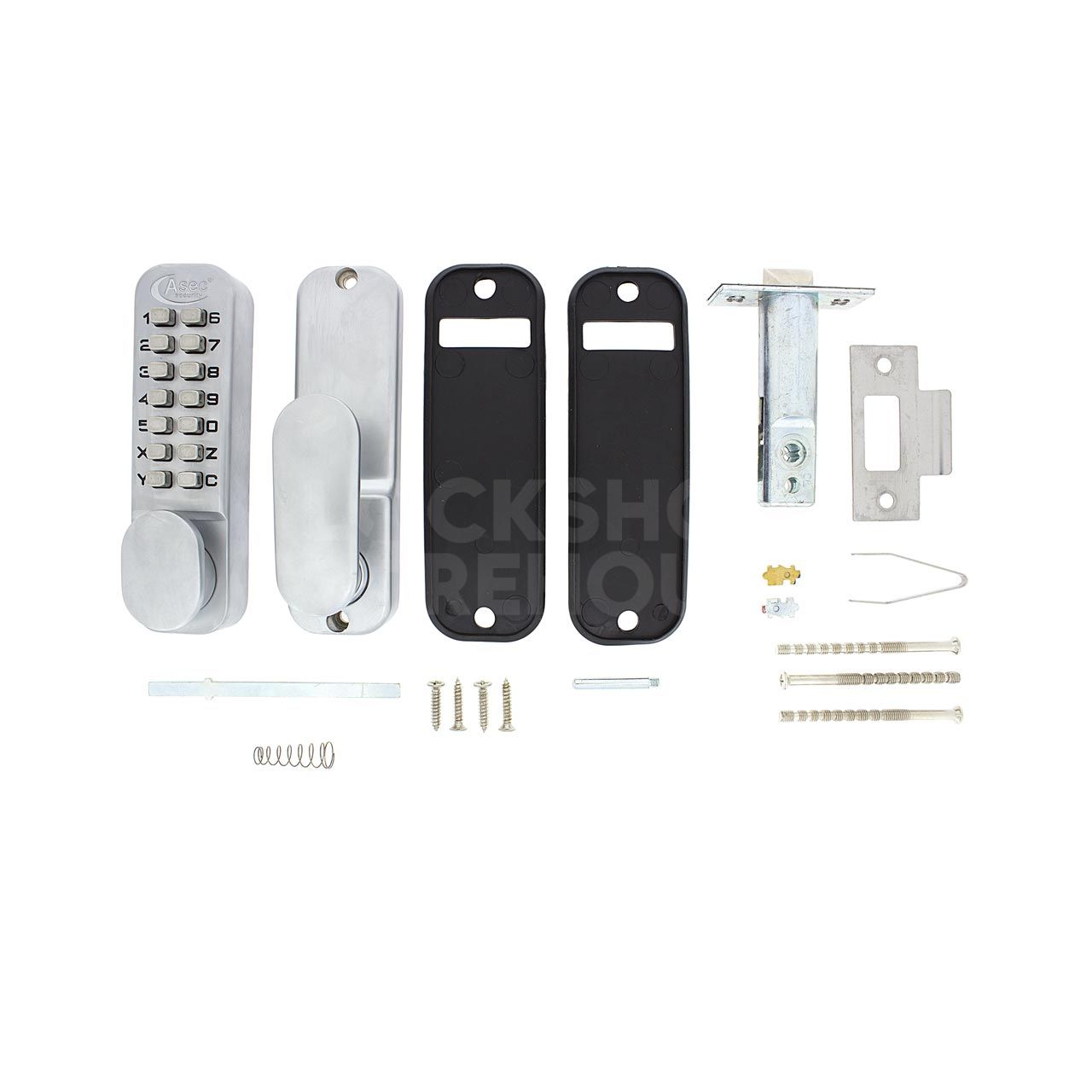

Dimensions Image: Asec AS2300 Mortice Mechanical Digital Deadlatch Lock with Optional Holdback
Dimensions Image: Asec AS2300 Mortice Mechanical Digital Deadlatch Lock with Optional Holdback

Brand

SKU

AS-2300

Box Contents

codelock

instructions

strike plate

latch

Fixing Kit

Tweezers (for changing the code)

Neoprene Seals x2

Code Tumbler (spare x2)

Code Card

Latch Support Post

FAQs

The Asec AS2300 is designed to fit standard doors with a thickness between 35mm and 60mm. It is supplied as a complete kit including a tubular latch with a 60mm backset and all necessary fixings for installation.

Yes, this lock features an optional holdback facility, allowing the door to remain unlocked when free passage is required. If you do not wish to use this feature, the sliding switch can be reversed and used as a blanking plate to disable it.

This mechanical lock supports a single code between 4 and 7 digits long, offering over 1,000 possible combinations. The code is designed to be easy to change, making it a flexible solution for managing access for different personnel.

No, the lock is designed for convenience and safety with a thumbturn on the inside that allows for a free exit at all times. The security code is only required when using the thumbturn to enter from the outside.
