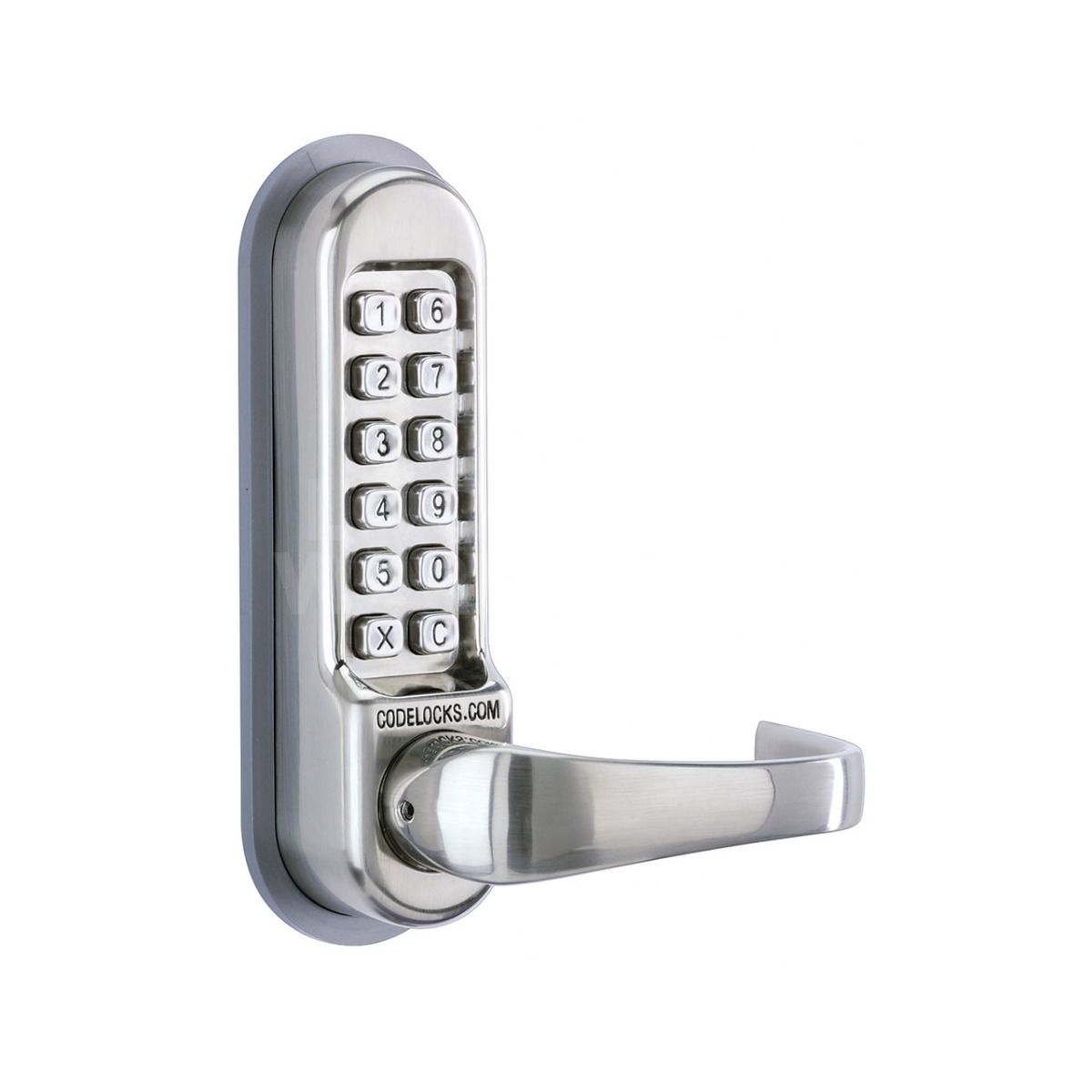

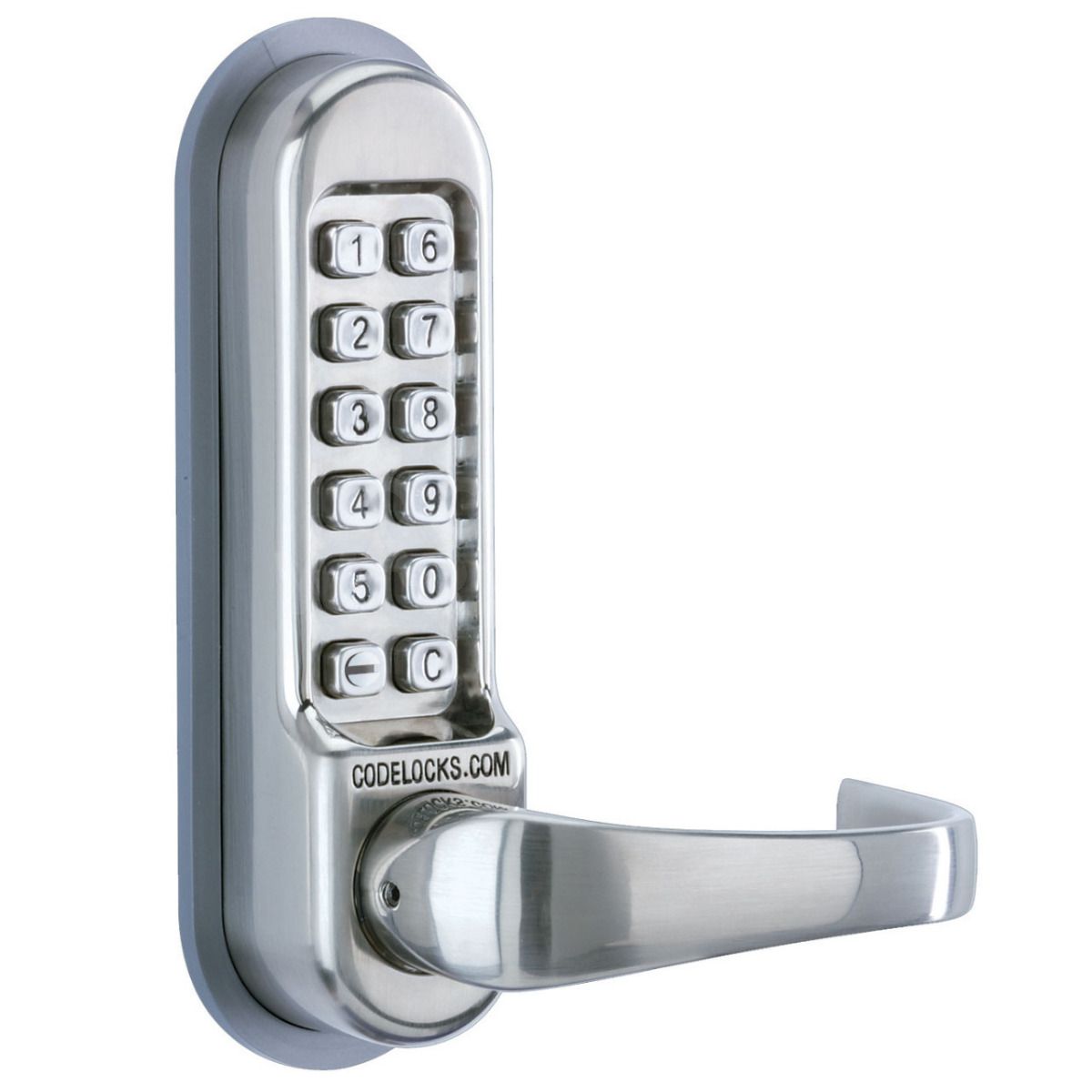

Codelocks 500/505 Mechanical Digital Lock for use with existing lock

£120.00

(£100.00 ex VAT)

sku: 957

The CL505 is part of the Codelocks CL500 series and are front and back plates only, they are for use with an existing mortice latch or lock.

The existing lock must have either a fixing hole (22mm) below follower (spindle) or two horizontal holes either side of the follower (38mm centres).

Clean by Codelocks is an optional finish available to special order on many Codelock products. The clear coating combats SARS-CoV-2 coronavirus (COVID-19) and can reduce bacterial growth by 99.96%*, providing an additional measure of protection over sanitisation. Clean by Codelocks features an ISO certified photocatalytic coating which offers enhanced protection against viruses, bacteria, germs and other environmental toxins. For full details please view the data sheet in the associated documents or to order please contact our Specials Department.

IMPORTANT:
Before ordering a Codelocks front/back plate set for use on an existing lock case, the current lock case must be tested to ensure it is compatible. Please see the 3rd Party Lock Disclaimer PDF document.

  • Front and Back Plates only – for use with existing Mortice latch or lock
  • Internal doors and External doors
  • Protective door mechanism
  • Weather resistant PVD
  • Heavy duty codelock for external or internal use
  • Non handed units
Operation Outside Lever Handle On Entry Of Code
Operation Inside Lever Handle Free Exit
Codes 1
Packaging Boxed
Pack Quantity 1
Width 48mm
Weather Resistant Yes
Buttons 12
Brand Codelocks
Case Depth Required 85mm
Barcode
Backset 60mm
Combination 8,000+
Code Length 4 To 6 Digits
Weight 2.06Kg
Door Thickness 35mm to 65mm
Latch Not Supplied
Handed Reversible
Guarantee Limited Lifetime
Finish Stainless Steel
Key Override No
Holdback No
Document Icon Technical Specs Document Icon Clean by Codelocks - Data Document Icon Third Party Lock Disclaimer

Finish

Type

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Heavy Duty
8/10 Security Rating

Keep the lockcase, change the access furniture

The 500/505 format is furniture for an existing compatible lock. It is not the same package as the 510/515 supplied-latch set or the 520/525 mortice-lock assembly. Verify the lockcase's follower and through-fixing clearances; the keypad furniture operates the latch, not an unrelated deadbolt.

Fitting and setup

  • Measure the door thickness, backset and existing fixing positions against the exact model drawing.
  • Set the new code and test the outside control, inside operation and latch engagement with the door open before closing it.

Compare the access options

Product support

Part Size (mm)
width 48
Backset 60

Brand

SKU

957

Box Contents

codelock

fixing screws

instructions

FAQs

No, the CL505 consists of the front and back plates only. It is designed to be used with your existing mortice latch or lock case, which makes it a convenient solution for upgrading your current door security without replacing the entire locking mechanism.

To ensure compatibility, your current lock case must have specific fixing hole patterns. It must have either a 22mm fixing hole located below the follower (spindle) or two horizontal holes on either side of the follower at 38mm centres. We strongly recommend testing your existing lock case against these requirements before ordering.

Yes, the CL505 is a heavy-duty mechanical lock built for both internal and external applications. It features a weather-resistant PVD stainless steel finish and durable stainless steel buttons designed to withstand environmental exposure and high-traffic usage.

Yes, this model includes a 'Code Free Entry' mode. This allows you to disable the code requirement for periods when you need unrestricted access through the door. This is activated by entering the code and turning the slotted button 90 degrees. Note that the inside handle always allows for free exit at all times.
