skip to Codelocks 510/515 Mechanical Digital Lock includes tubular mortice latch

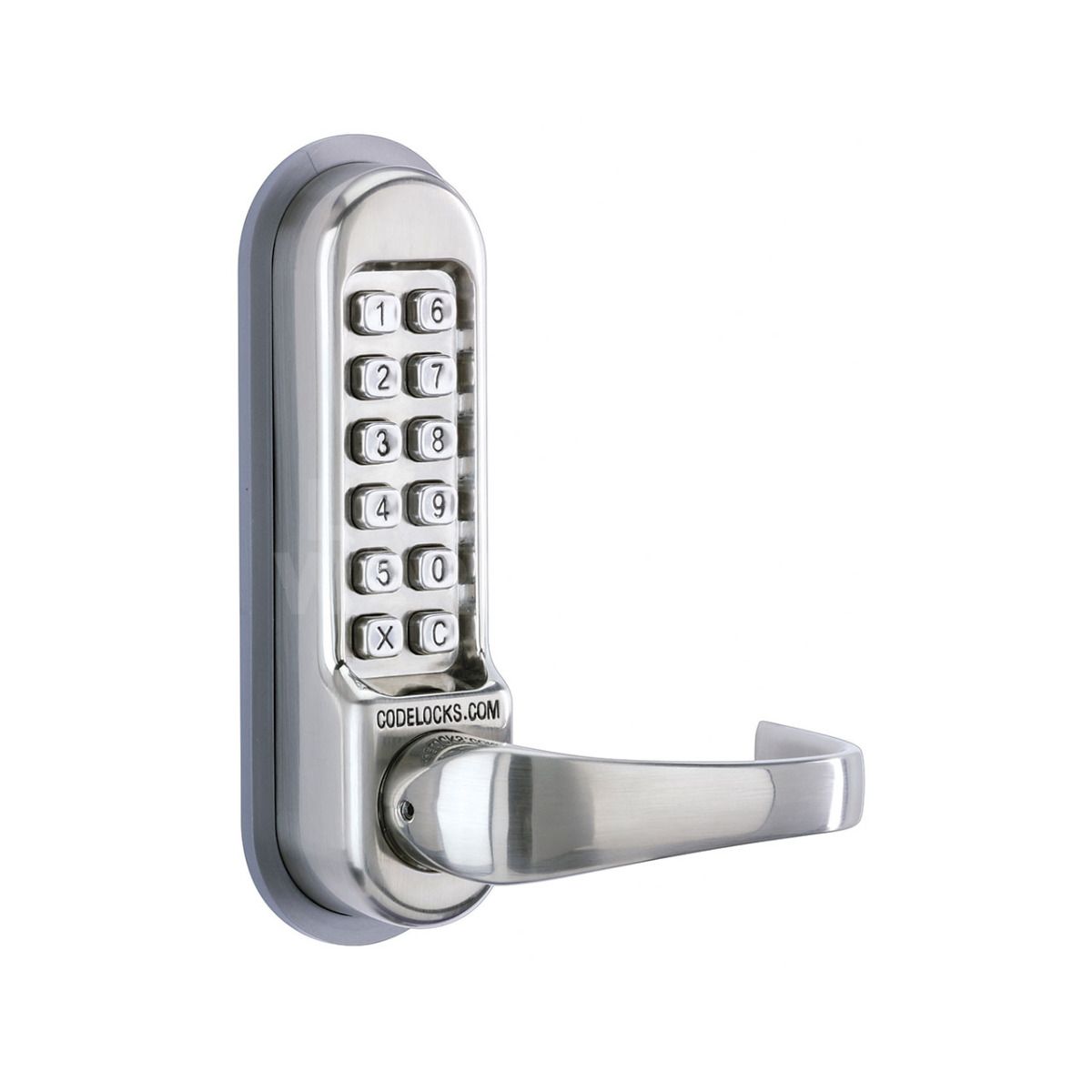

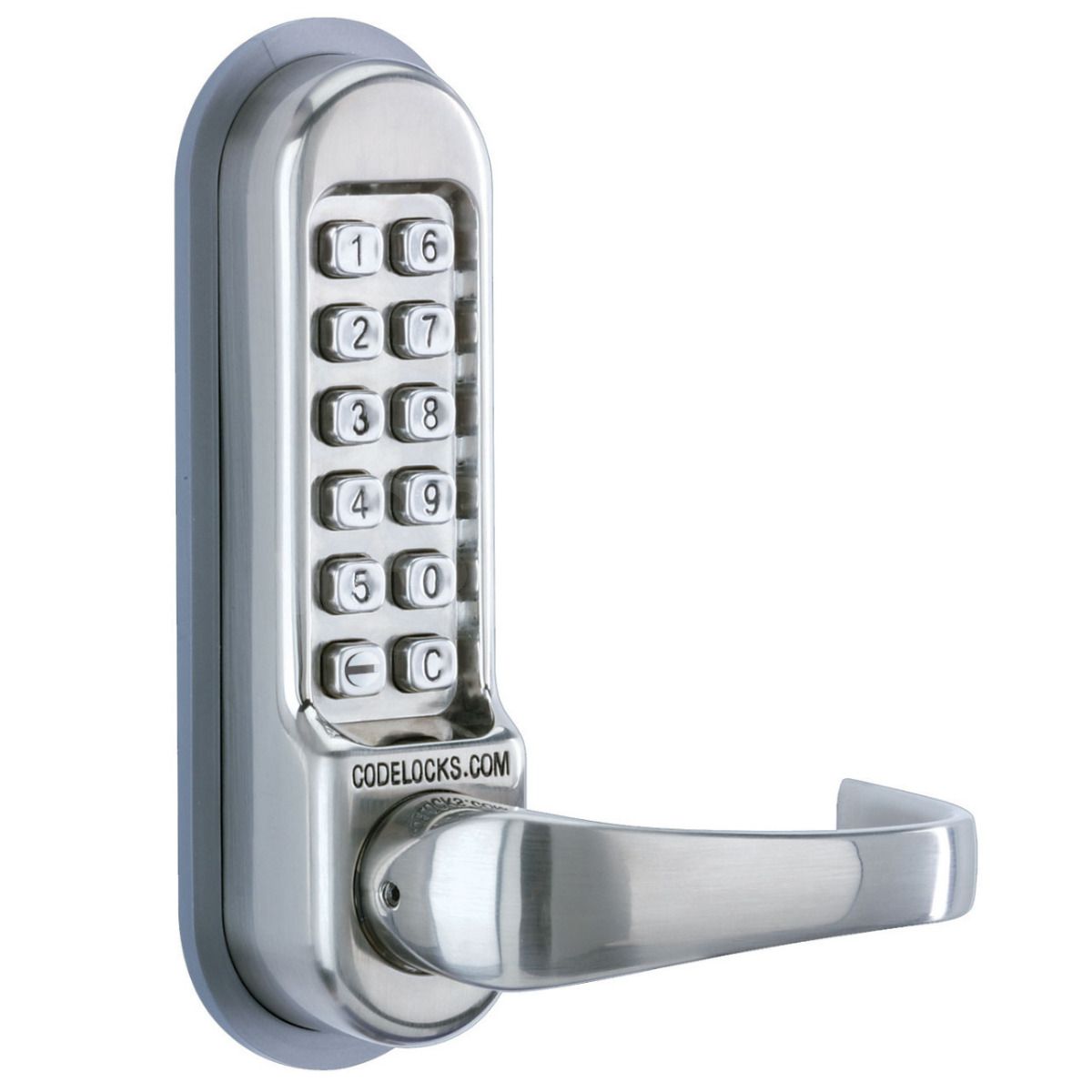

Codelocks 510/515 Mechanical Digital Lock includes tubular mortice latch

£132.00

(£110.00 ex VAT)

sku: 961

The Codelocks 510/515 combines mechanical code-operated lever furniture with a supplied tubular mortice latch. It suits a new latch installation or replacement of an existing compatible tubular-latch set.

  • Full-size lever handles with a slipping clutch on the outside handle
  • Mechanical shared-code entry without batteries or wiring
  • Spring latch relatches when the correctly aligned door closes
  • 515 passage-function versions permit code-free entry when required
  • Available in stainless steel and polished brass

The mortice-lock and separately thrown deadbolt functions belong to the 520/525 assembly, not this tubular-latch set.

Document Icon product info

Finish

Type

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Recommended
Heavy Duty
8/10 Security Rating

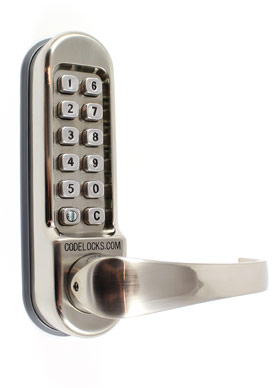

The CL500 fitting route with a tubular latch

The 510/515 set includes the tubular latch for a new or replacement latch installation. Compare that with the 500/505 furniture-only set if the existing lockcase is to stay. Passage-function versions permit code-free entry; that function must be matched to the model supplied.

Fitting and setup

  • Measure the door thickness, backset and existing fixing positions against the exact model drawing.
  • Set the new code and test the outside control, inside operation and latch engagement with the door open before closing it.

Compare the access options

Product support

Brand

SKU

961

Box Contents

fixing screws

instructions

codelock

tubular latch

Handle

FAQs

The optional 'Code Free' entry mode allows the lock to remain unlocked for periods of unrestricted access. This is activated by turning the slotted button 90 degrees after entering a valid code, making it an ideal feature for high-traffic areas during business hours.

This model is designed for versatility and is suitable for doors between 35mm and 65mm thick. It is also non-handed, featuring fully reversible lever handles that can be installed on both left and right-hand opening doors.

Yes, the outside lever is equipped with a slipping clutch mechanism. If the handle is forced without the correct code, the clutch allows the handle to move without damaging the internal locking mechanism. For added durability, the unit features stainless steel buttons and a weather-resistant PVD finish.

The lock supports non-sequential codes between 4 and 7 digits in length. There are over 2,000 possible combinations available, and you can change the code as often as required to maintain security.
