skip to Codelocks CL620 Mechanical Digital Lock with Heavy Duty Mortice Lock with Double Euro Cylinder - Finish Brushed Steel

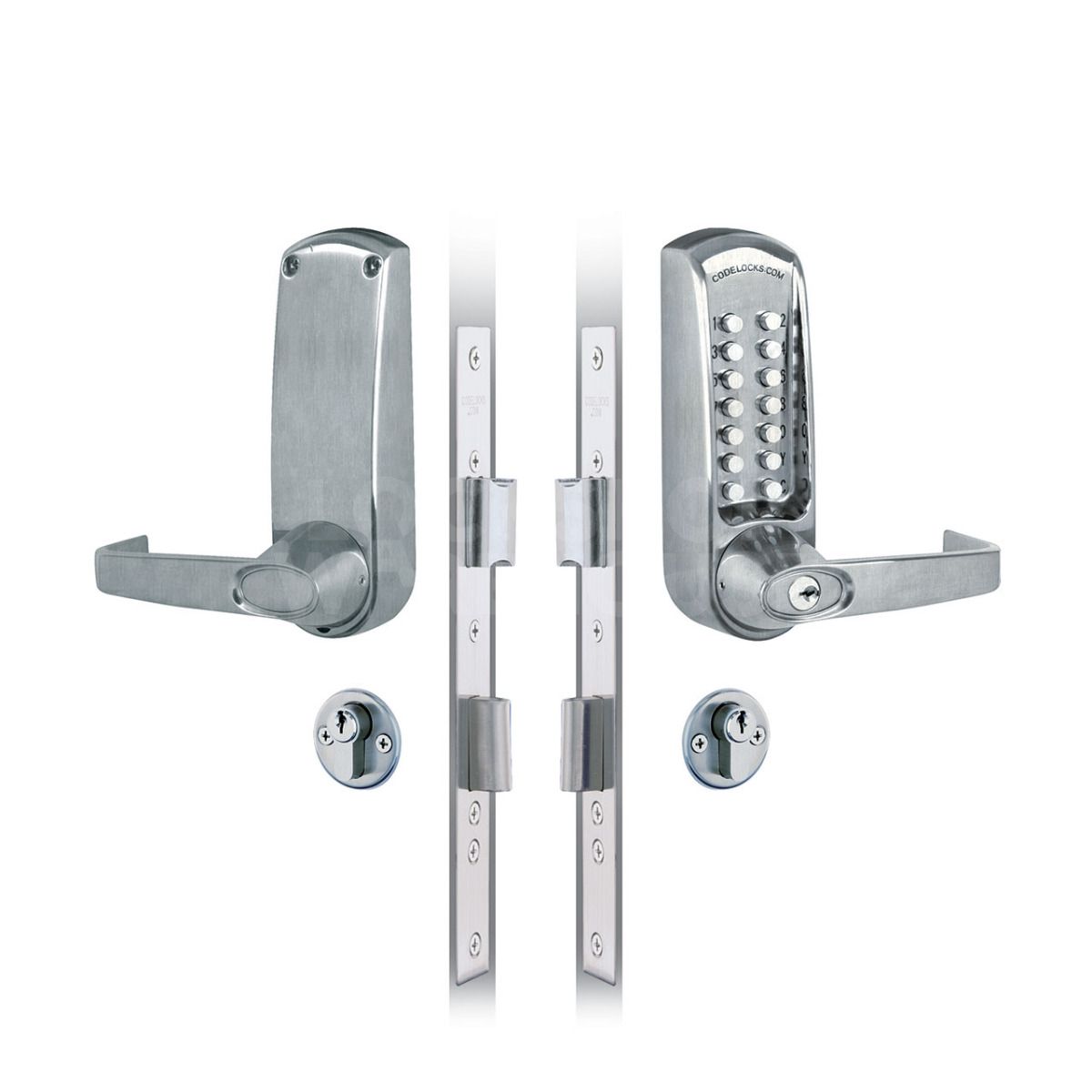

Gallery Image: Codelocks CL620 Mechanical Digital Lock with Heavy Duty Mortice Lock with Double Euro Cylinder - Finish Brushed Steel

Codelocks CL620 Mechanical Digital Lock with Heavy Duty Mortice Lock with Double Euro Cylinder - Finish Brushed Steel

£215.99

(£179.99 ex VAT)

IMPORTANT:
Before ordering a Codelocks front/back plate set for use on an existing lock case, the current lock case must be tested to ensure it is compatible. Please see the 3rd Party Lock Disclaimer PDF document below for full information.

  • Large three coil lever return spring suitable for high traffic use
  • Tested to Grade 2 - ANSI - A156.2
  • Large full size return to door lever handles
  • Heavy duty Mortice lock with double cylinder, 3 keys and anti-panic safety feature
  • Quick Code change - no need to remove lock from door
  • Internal doors and External doors

The Codelocks CL620 is from the CL600 series and is a heavy duty tubular mortice lock with double cylinder, 3 keys and anti-panic safety function. The outside lever handle will retract the latch after a correct code is entered, the spring loaded latchbolt will lock automatically when the door is closed. The key retracts the latchbolt for entry without using a code, the key controls the deadbolt position. When the deadbolt is projected it denies access by code, when the deadbolt is projected the safety feature allows the inside lever handle to retract both the deadbolt and the latchbolt, preventing people being accidentally lock in. The key can be used to open the doors for management functions such as security and cleaning.

Operation Outside Lever Handle On Entry Of Code
Operation Inside Lever Handle Free Exit
Codes 1
Passage Set No
Packaging Boxed
Pack Quantity 1
Width 58mm
Weather Resistant Yes
Buttons 14
Brand Codelocks
Case Depth Required 85mm
Backset 55mm
Combination 8,000+
Code Length 4 To 6 Digits
Weight 4.74Kg
Door Thickness 35mm to 65mm
Latch Euro Profile Mortice Sash Lock
Keys Supplied 3
Handed Reversible
Guarantee Limited Lifetime
Finish Stainless Steel
Key Override Yes
Holdback No

Model

Qty:
Keys Supplied: per lock total (unless ordering multiple groups)
Additional Keys are available below
When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.
If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.
heavy-duty Heavy Duty
9/10 Security Rating
25+ Year Guarantee

Technical Specifications

Toggle Icon

Brand

Codelock

SKU

CL620-625

Box Contents

handles

spindle

Fixing Kit

Euro profile cylinder escutcheons

2 bolt mortice lock and strike

Double Euro profile cylinder

3 keys

Code Card
